Sartorius CP Series User Manual

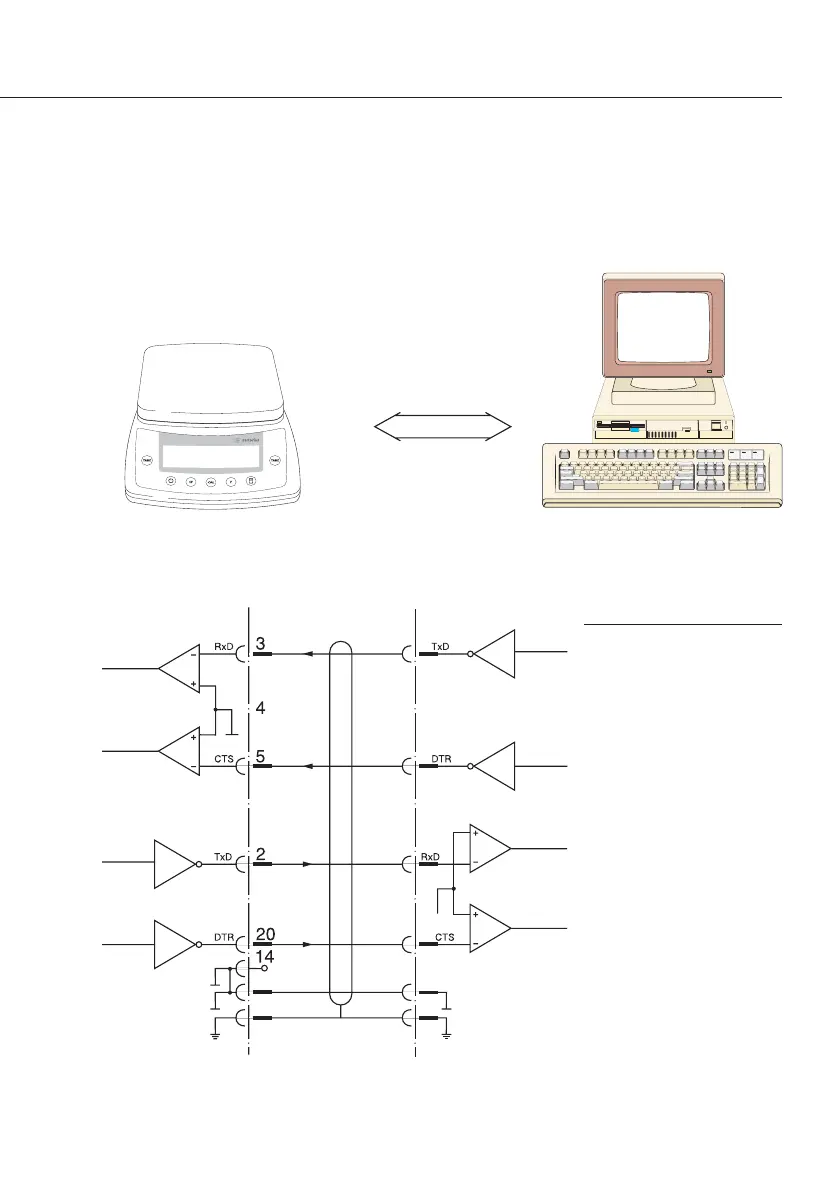

Cabling Diagram
61
Cable type: AWG 24 specification
7
1
– For connecting a computer or other peripheral device to the balance using the
RS-232C/V24 protocol and cables up to 15 m (50 ft.) long.
V24
Balance (female connector)
Peripheral device
(male connector)
PC PC
25-pin or 9-pin
23
20 4
32
58
66
75
