5

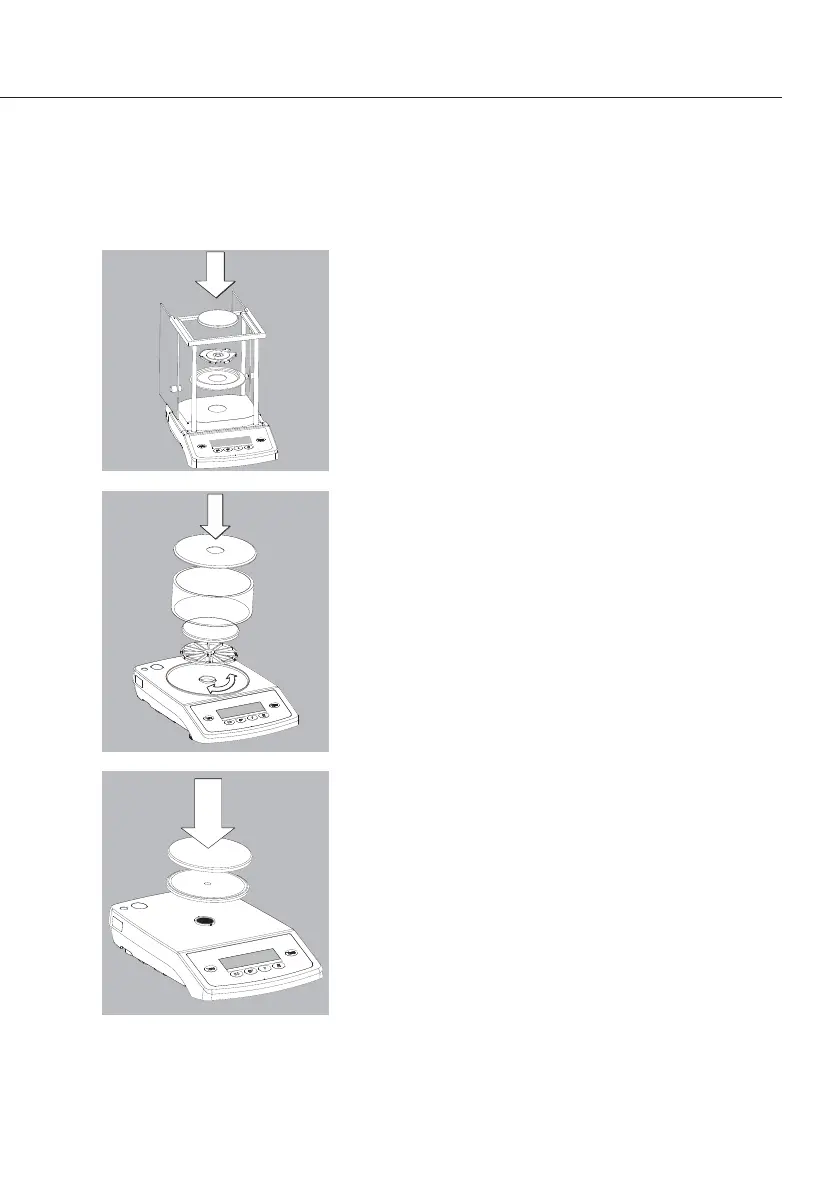

Setting up the Balance
Balances with a draft shield chamber with sliding
doors
Place the components listed below inside
the chamber in the order given:
– Shield plate
– Shield ring
– Pan support
– Weighing pan
– Gem tray (only with GD models)
Balances with a Glass Draft Shield
Place the components listed below inside
the chamber in the order given:
– Draft shield base – place it on the balance
so that the edge for fitting the glass draft shield
faces upwards and turn it until it is firmly in place
– Pan support
– Weighing pan
– Glass draft shield
– Draft shield cover – place it on the balance
so that the edge faces downwards
Balances with a Round Weighing Pan
Place the components listed below inside
the chamber in the order given:
– Pan support
– Weighing pan
Balances with a Rectangular Weighing Pan
Place the weighing pan on the balance
