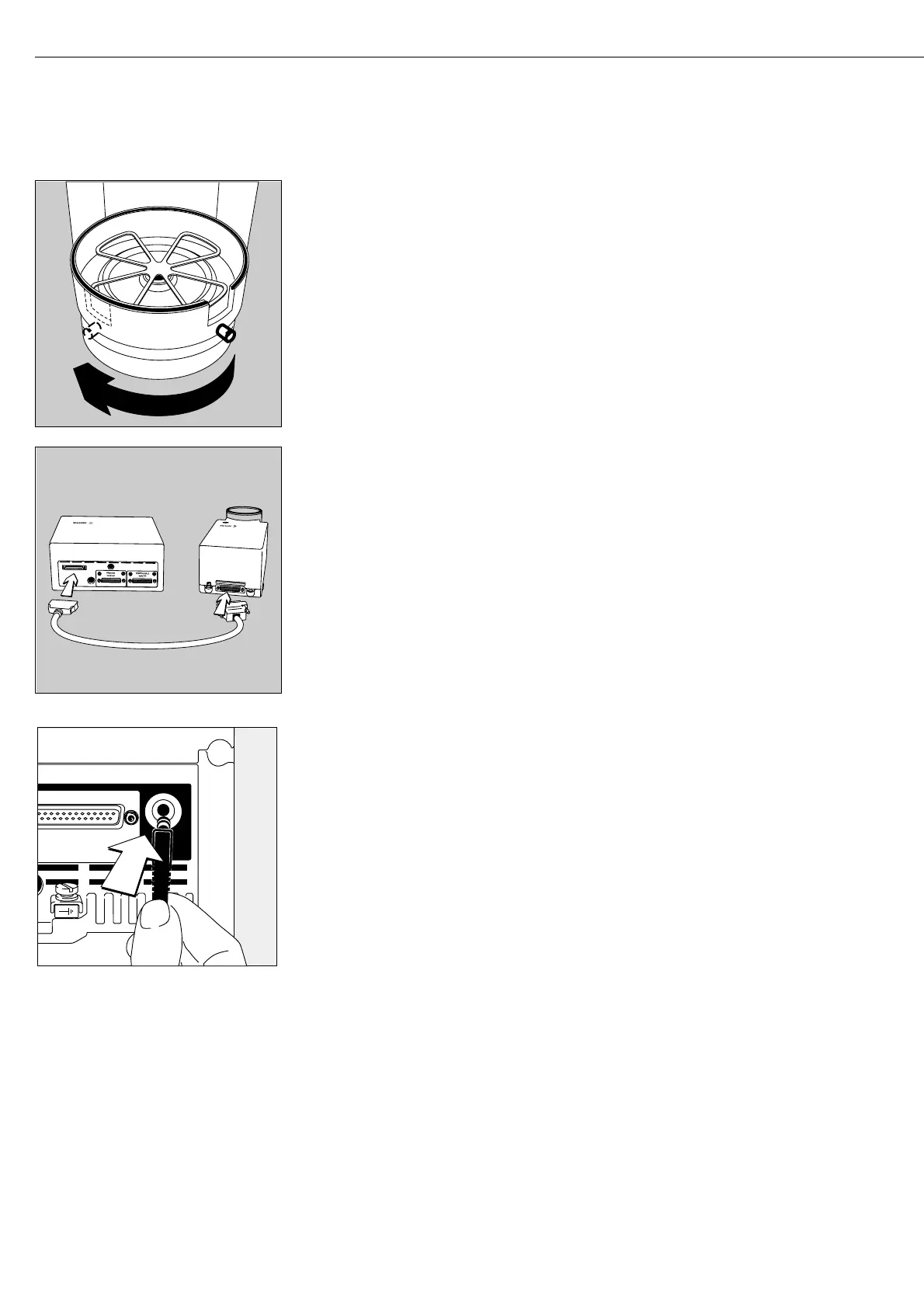

§ Turn draft shield assembly by approx. 90 degrees toward the left (loosen knurled knob to
turn)
§ Connect the weigh cell to the evaluation unit
– Use a screwdriver to tighten the screws to the female connector on the weigh cell
Connecting the Balance to AC Power
The wide-range AC adapter is designed for 100 V to 240 V.
§ Check the plug design of the power cord
– If it does not fit your wall outlet (mains supply), please contact your
Sartorius office or dealer
Use only
– Original Sartorius AC adapters and power cords
– AC adapters with a registered approval rating from a national testing laboratory
$ To use a main feeder cable from the ceiling or to mount a CEE plug,
have a certified electrician install it
$ To use an external rechargeable battery pack, refer to the “Accessories” in the
“Overview” chapter
§ Insert the AC adapter plug with the angle facing downward into the jack on the balance
12
