Sartorius MW1P - Junction Box 2 Wiring Details

22
5.1
Junction Box 2

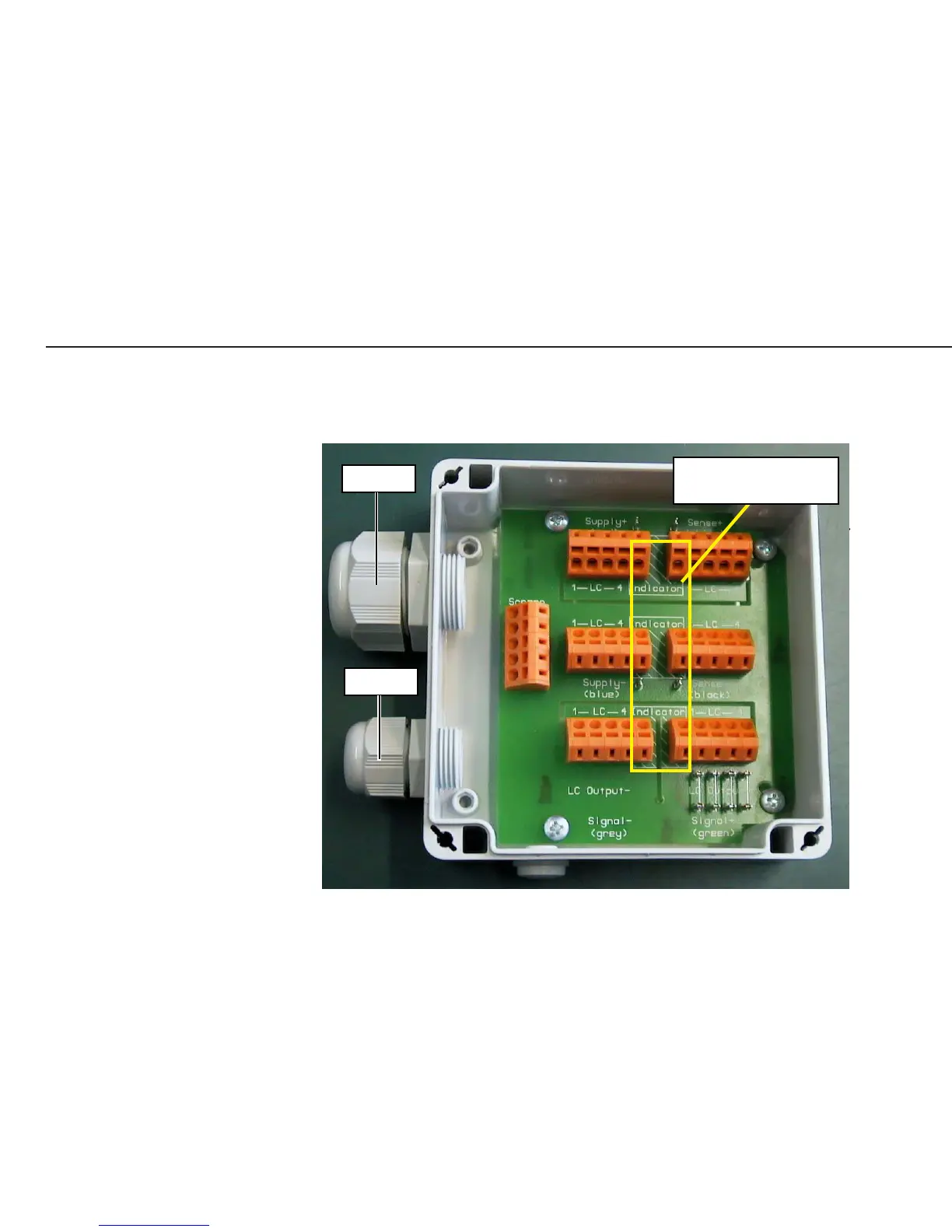

Junction box; open.
1.1 Cable to load cell 1
2.1 Cable to load cell 2
3.1 Cable to load cell 3
4.1 Cable to load cell 4
5.1 Connecting cable for A/D
converter / indicator
Contacts to connect
the cable 5.1
1.1 - 4.1
5.1
