7
Description of the Equipment
The complete Midrics scales from Sartorius are primarily used in industry. Because there are a number of hardware
configurations to choose from, Midrics models are constructed according to customer requirements.
The complete Midrics scale consists of:
– A choice of weighing platforms with capacities from 3 kg to 3000 kg (in stainless steel or steel) and indicators

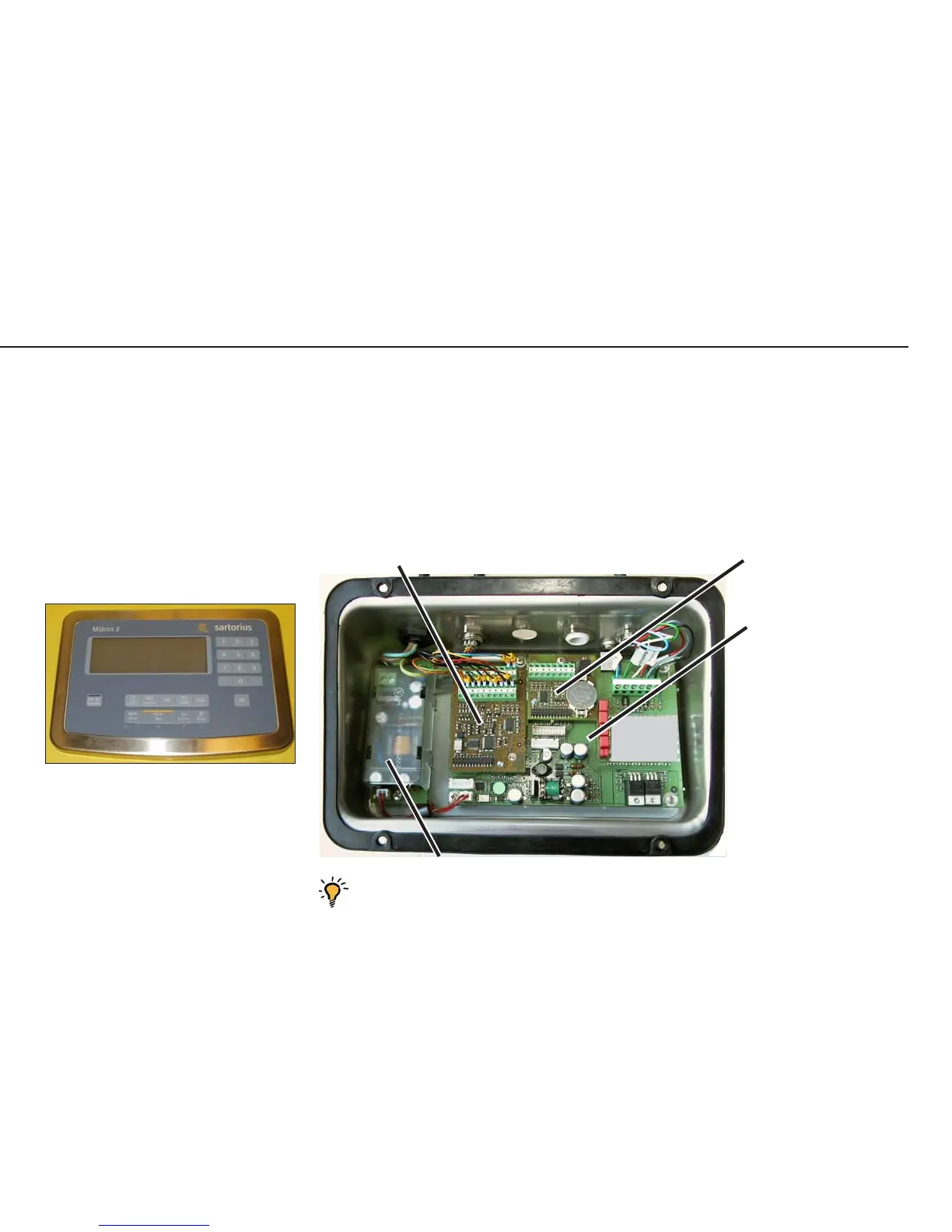

The Midrics 1 / 2 indicators consist of:
– Front panel with keypad and
digital display (Midrics 2 has
additional keys)
– Midrics indicators
are equipped with either cable
glands or D-Sub 25 connectors.
Note: Additional electronic subassemblies are optional.
Main PCB with H8S
processor, analog/
digital converter and
DC/DC converter
Power PCB
UniCOM ports in several variants*
COM1 interface in 2
versions*
1 2 3 4 5 6
* Optional
