10 Operating Instructions PMA 35001-X
Setup Instructions

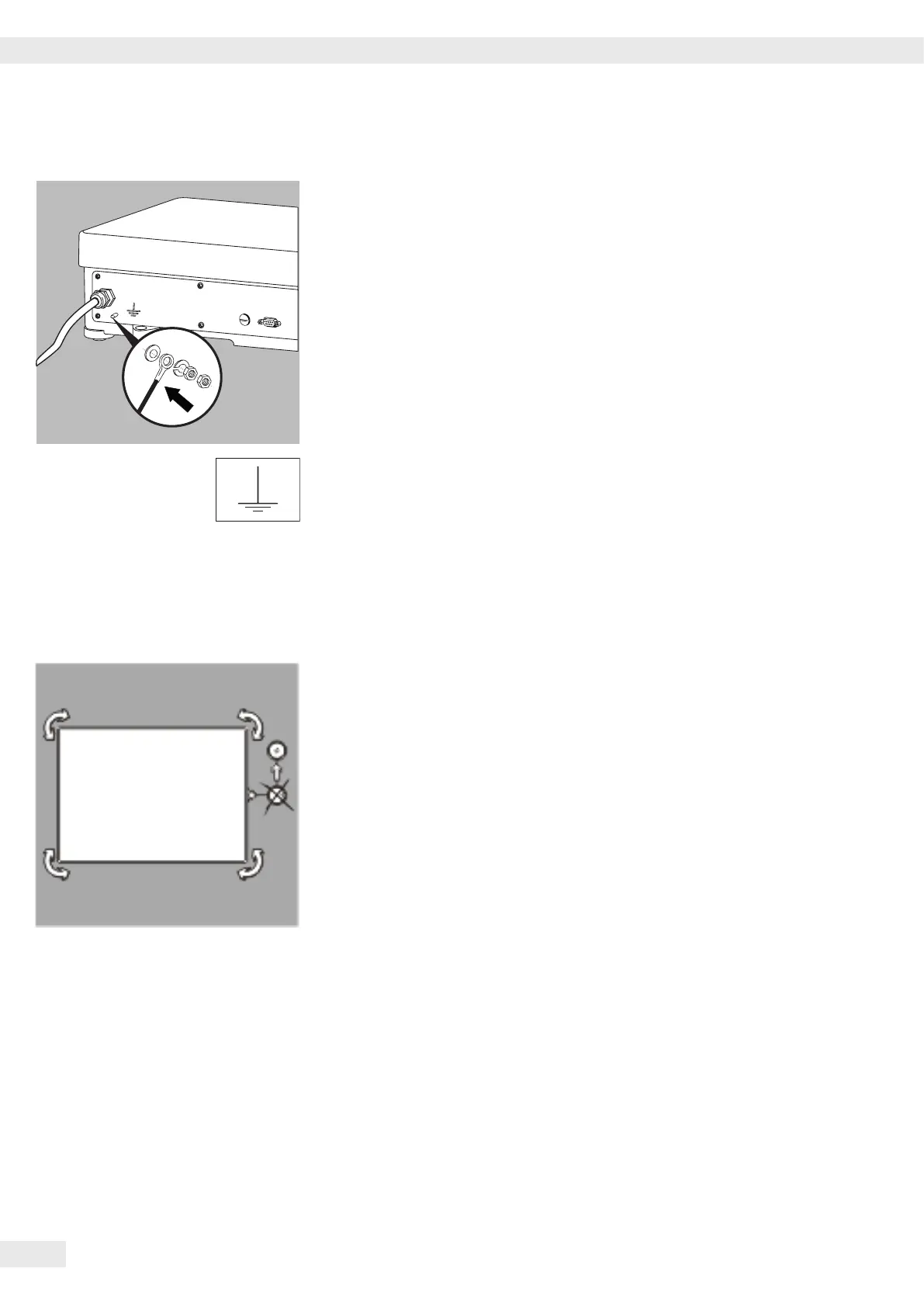

Connect the equipotential bonding connector:
Establish a low resistance connection with the color-mixing scale using a suitable
grounding cable with a gage of at least 4 mm
2
(not included) via the equipotential
bonding conductor connections (PA) on the devices.
Installation must be carried out properly by trained personnel and according to
commonly accepted technical standards.
If deviations due to transport damage are evident during startup (e.g. no display,
no backlighting), the system should be disconnected from the power supply and
service professionals should be contacted.
Leveling the Weighing Platform
Purpose:
– To compensate for unevenness at the place of installation
– To ensure that the equipment is placed in a perfectly horizontal position for
consistently reproducible weighing results. Always level the weighing platform
again any time after it has been moved to a different location.
t Level the weighing platform using the four leveling feet. Turn the feet until the
air bubble is centered in the level indicator.
t Ensure that all leveling feet are resting securely on the work surface.
y Each of the leveling feet must support an equal load.
y Adjusting the leveling feet:
To raise the weighing platform, extend the leveling feet (turn counterclock-
wise). To lower the weighing platform, retract the leveling feet (turn clockwise).
