Operation with the Optional YAC01ED Display and Control Unit

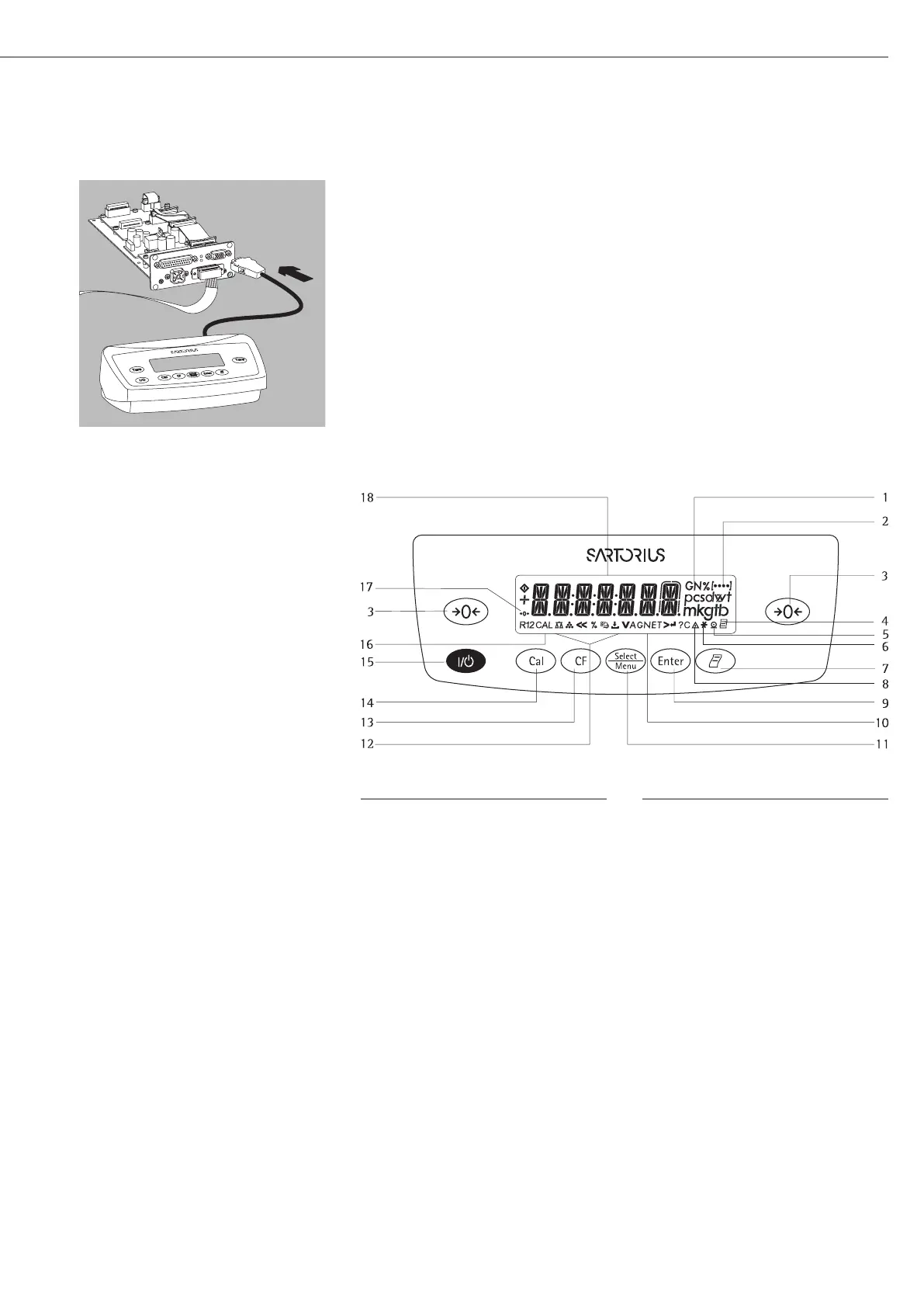

Connect the display and control unit to the weigh cell electronic unit using the supplied cable.
Connection cable: 1 meter long with 15-pin D-Sub plug and socket.
Pin 15 is not assigned.
Overview of Display and Control Panel
Position Description
1 Weight units
2 Displays the menu level
3 Tare/Zero
4 Symbol for “GLP printing mode
active”
5 Symbol for “Printing active”
6 Application program active
7 Manual data output:
Press this key to send readout
values to the built-in data
interface.
8 Labeling: not a weight value
9 Start an application program
10 Display: Gross and net value
11 Select an application program |
Open the operating menu
12 Symbols for an active application
(W, Z, L, V, R, A, C)
Position Description
13 Clear Function
This key is generally used to
cancel functions:
– Quit application program
– Cancel calibration/adjustment
routine | Exit menu
14 Start the calibration/adjustment
routine
15 On/off switch
16 Display: calibration/adjustment
function
17 Symbols for zero range
(verified models only)
18 Weight value displayed in
selected weight unit
Symbol:
<< Exit menu
< One menu level higher
V Set menu item
> Select the next sub-item within
a menu level
↵ Confirm menu item
13
