Sartorius WZ-L Series User Manual

31

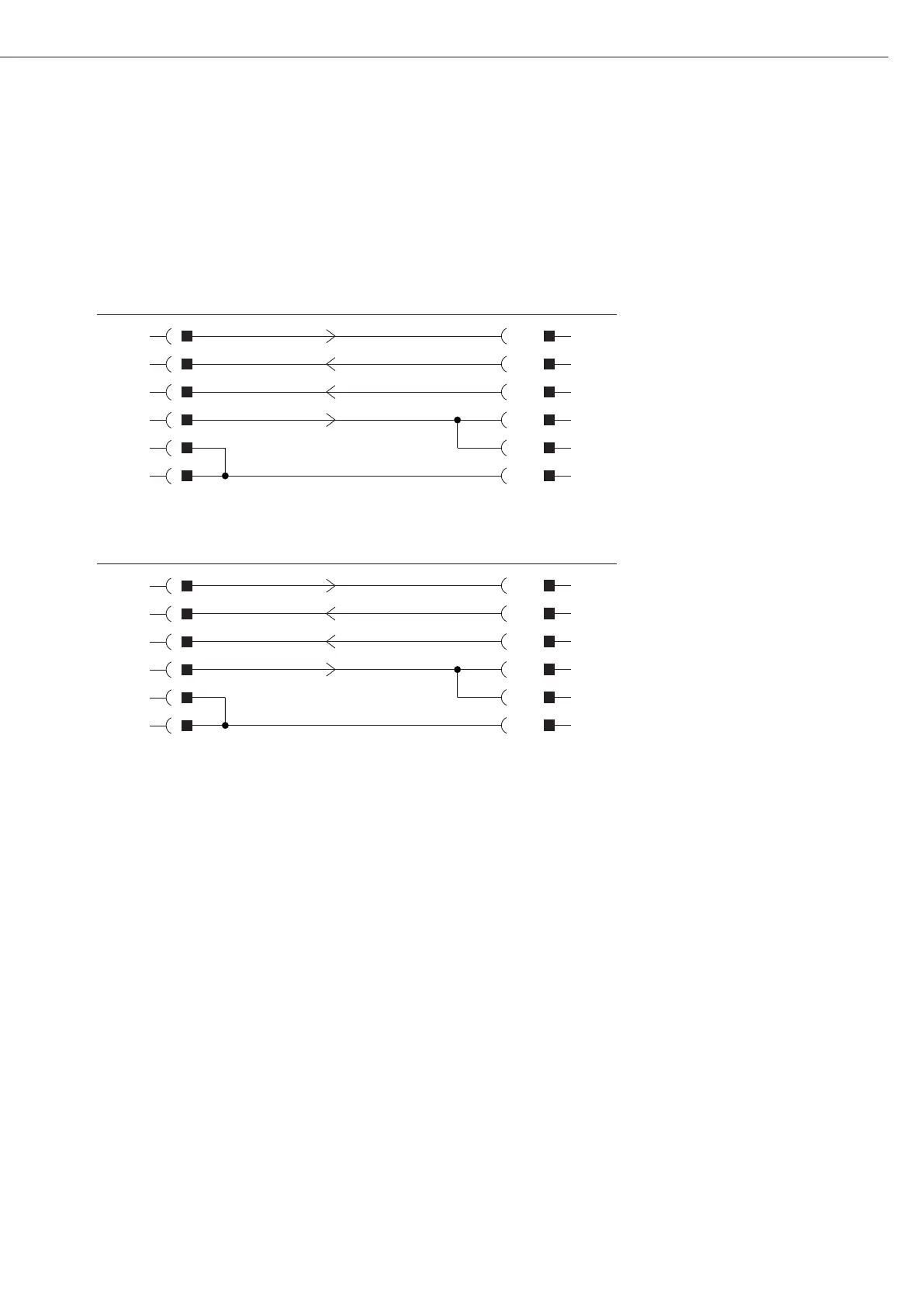

Cabling Diagram
For connecting a computer or other peripheral device to the balance/scale using
the RS-232C/V24 protocol and cable lengths of up to 15 m (approx. 50 ft).
No other pins of the balance/scale may be assigned!
Cable type: AWG 24 specification
Balance/scale Computer,
25-pin 25-contact
male connector female connector
TxD 2 3
R
xD 3 2
CTS 5 20
DTR 20 5
GND 4/7 6
GND 14 7
Balance/scale Computer,
25-pin 9-contact
male connector female connector
TxD 2 2
R
xD 3 3
CTS 5 4
DTR 20 8
GND 4/7 6
GND 14 5
