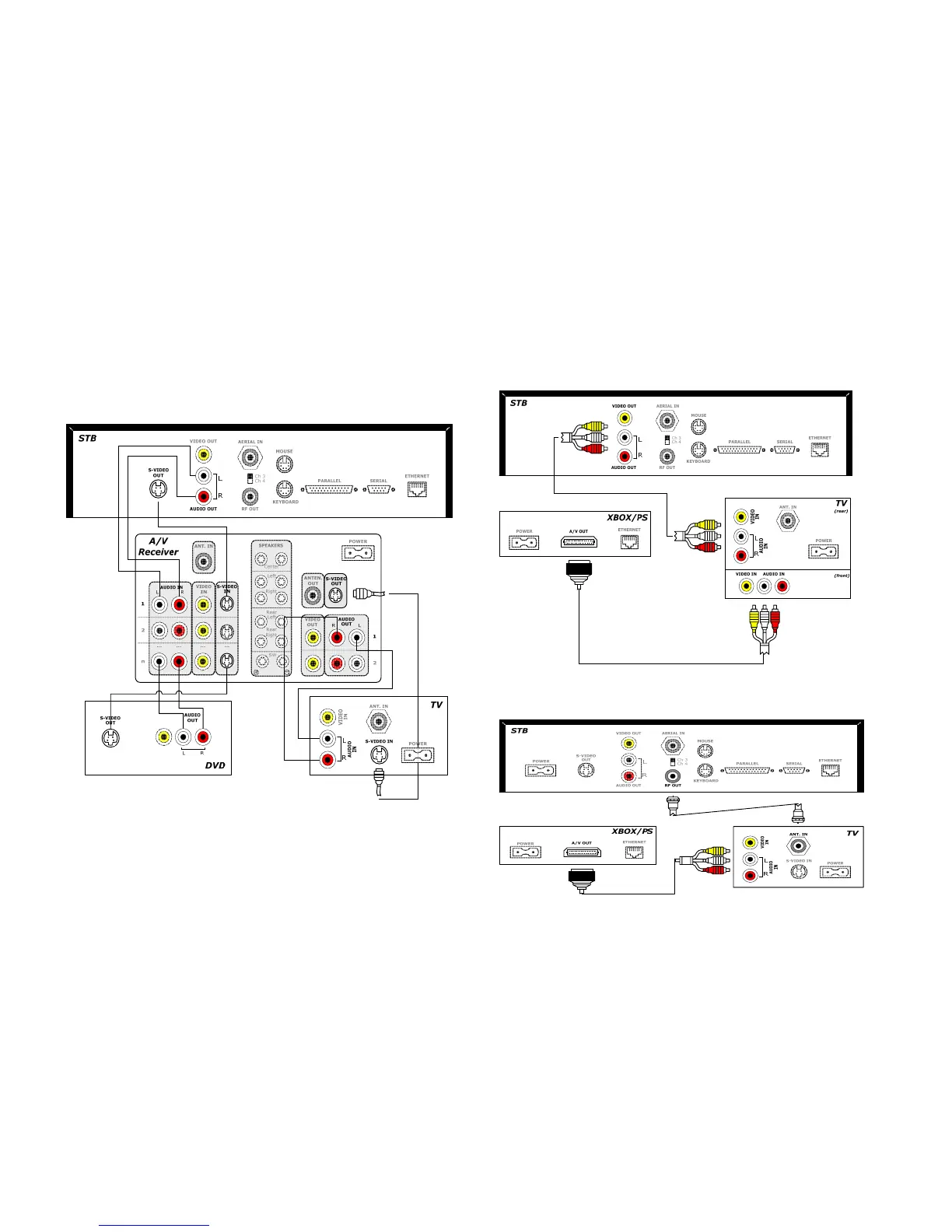

S-Video cables
This configuration provides the best quality performance. All components
are connected using S-video/RCA-audio cables combination. Any number
of additional devices maybe added to this set up. Additional devices can be
added in the future by utilizing unused inputs on the Audio/Video receiver
and/or TV-set itself.
IV. Adding a console gaming system
Scenario 1
Most of today’s console gaming systems require an RCA input to connect
to TV. Depending on the number and type of available inputs on your TV
you may have to either connect the console with RCA cables, or…
… with coaxial cable to the TV. If your TV lacks RCA inputs, please see FAQ
section of this manual for further information.
