SATEL INTEGRA Plus 37
INT-KSG with firmware version 1.02 (or later).
The value of EOL resistors for the zones in zone expanders with firmware version 4.00 or
later can be programmed:
using the keypad, in the service mode, by means of EOL
R1
RESISTOR
and EOL
R2
RESISTOR
functions (S
TRUCTURE
H
ARDWARE
E
XPANDERS
S
ETTINGS
[ expander
name]
EOL
R1
RESISTOR
/
EOL
R2
RESISTOR
);
using the D
LOAD
X program, in the "Structure" window, "Hardware" tab, after clicking on the
given expander.
For the zones in INT-KSG keypad with firmware 1.00 or 1.01, the value of EOL resistors is
programmed in the D
LOAD
X program, "Structure" window, "Hardware" tab. After clicking on
the given keypad, select the corresponding tab. The value of these resistors cannot be
programmed from the keypad.
The recommended version of INT-KSG keypad firmware is 1.02 (or later).

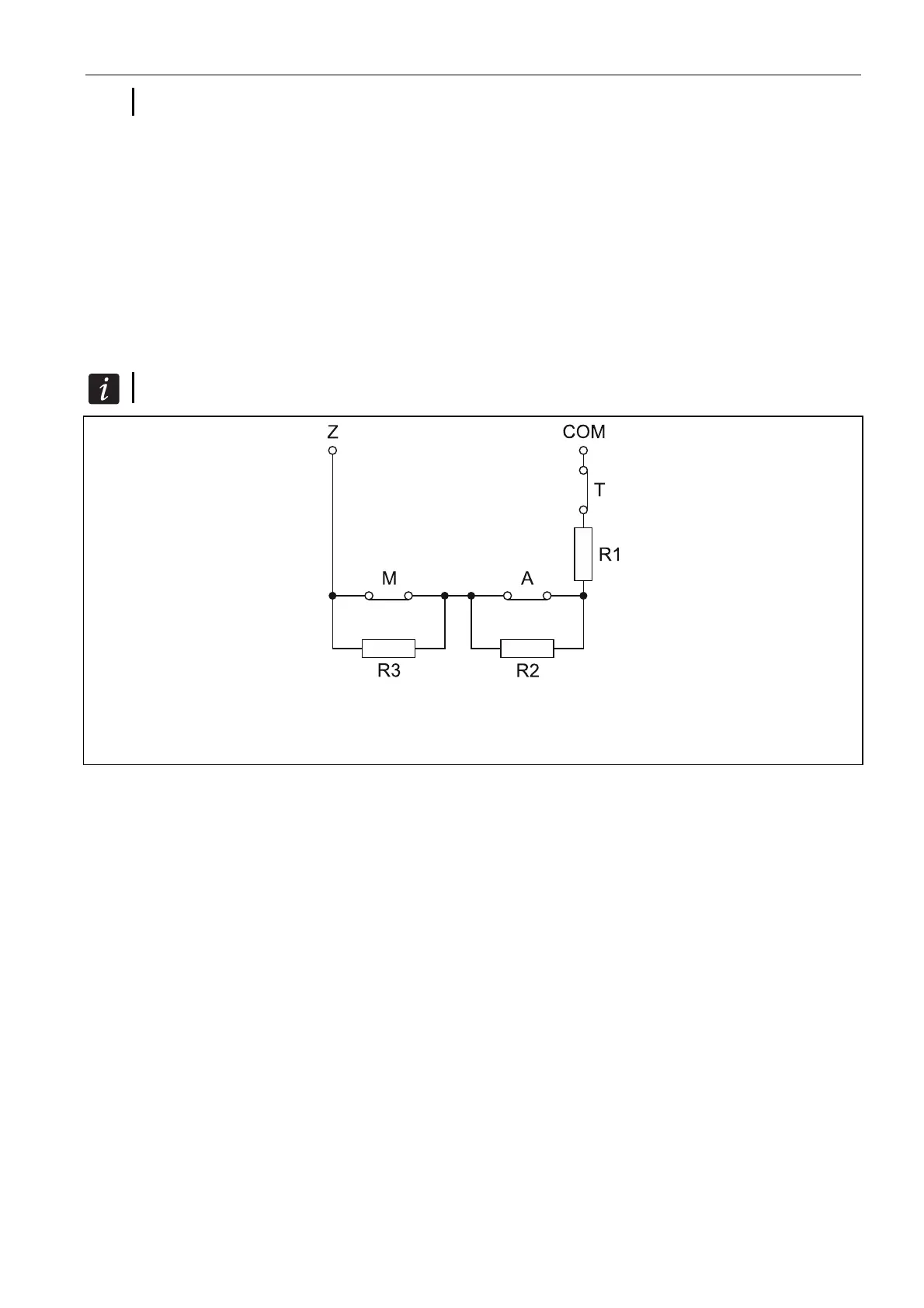

Fig. 4. Numeration of EOL resistors. T – tamper. A – alarm. M – masking. In case of the EOL
and 2EOL configurations, the R3 resistor value is irrelevant. In case of the EOL configuration,
the resistor value is a sum of the values programmed for the R1 and R2 resistors.
3.3.3 Programming the zones
The zones can be programmed:
using the keypad, in the service mode, by means of the functions available in the Z
ONES
submenu;
using the D
LOAD
X program:
1. in the "Structure" window, "System" tab, after clicking on the selected zone;
2. in the "Zones" window.
3.3.4 Zone parameters
Zone name – individual name of the zone (up to 16 characters).
Partition – partition to which the zone belongs.
Zone type (see: section Z
ONE TYPE
p. 40).
Entry delay – refers to the delayed zones (including the zone types: 0. E
NTRY
/E
XIT
,
1. E
NTRY
, 2. D
ELAYED
,
3. I
NTERIOR DELAYED
, 85. E
NTRY
/E
XIT
–
CONDITIONAL
and
86. E
NTRY
/E
XIT
–
FINAL
). The alarm from the zone will be delayed by a preset time. This
makes it possible to disarm the partition before the alarm is triggered.
Signaling delay – refers to the 4.
P
ERIMETER
, 5.
I
NSTANT
and 6.
E
XIT
type zones. Loud alarm
signaling can be delayed by a programmed time period.
