SATO GL408e - Using the Coupler Handle and Indicator

32

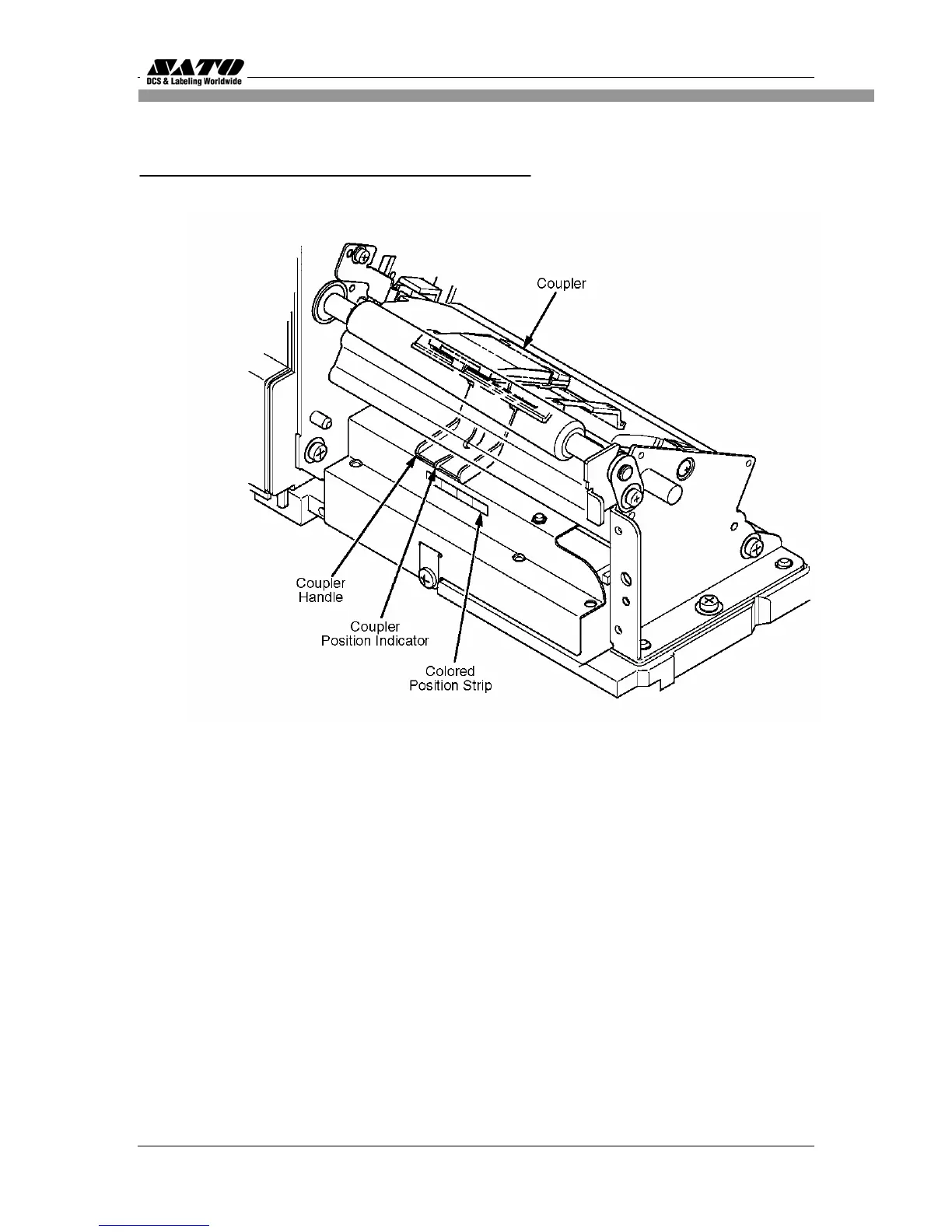

Use the coupler handle to adjust the coupler so that the coupler position indicator points to
the correct color on the colored position strip.
Aligning the tabs, install the lower front cover (See RFID Kit Installation Guide) Step 2.
Secure the lower front cover to the printer using the thumbscrew.
Adjusting the Coupler position
