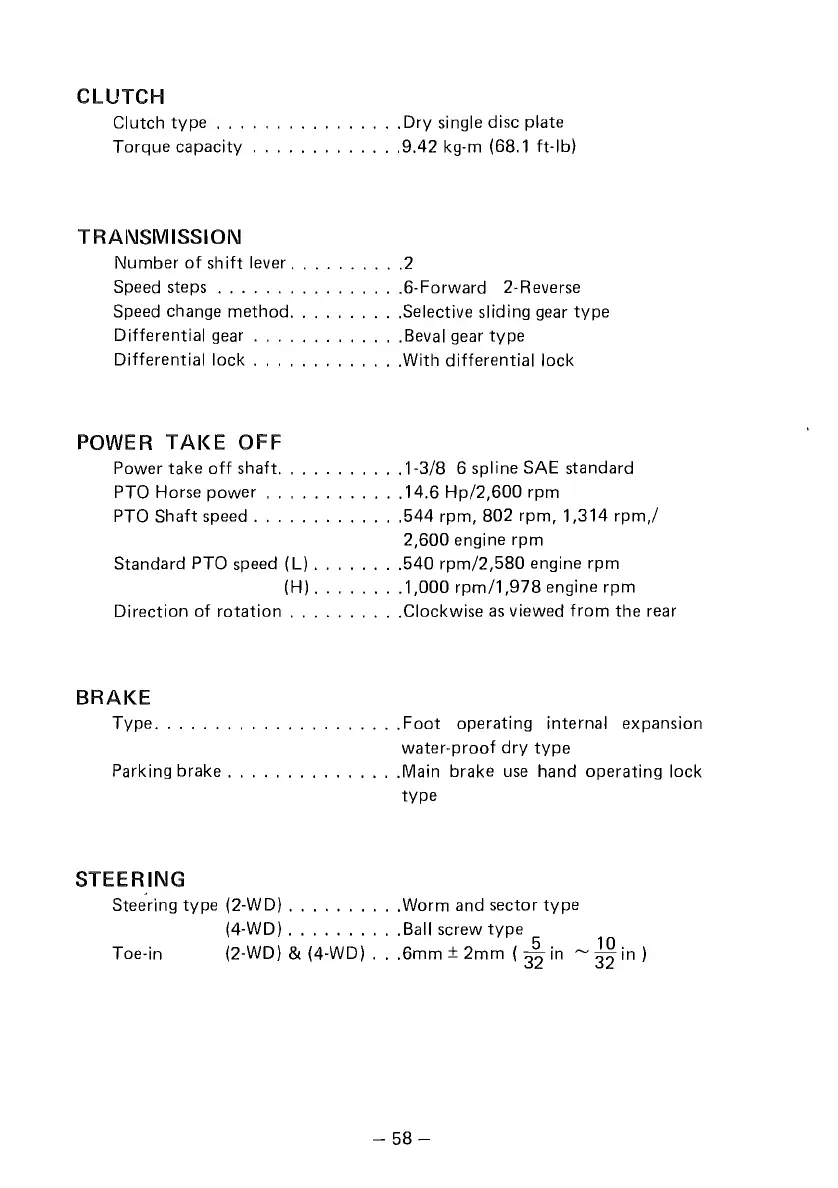

CLUTCH
Clutch type ................ Dry single disc plate
Torque capacity ............. 9.42 kg-m (68.1 ft-Ib)
TRANSMISSION
Number of shift lever .......... 2
Speed steps ................ 6-Forward ?-Reverse
Speed change method .......... Selective sliding gear type
Differential gear ............. Beval gear type
Differential lock ............. With differential lock
POWER TAKE OFF
Power take off shaft. .......... 1-3/8 6 spl ine SAE standard
PTO Horse power ............ 14.6 Hp/2,600 rpm
PTO Shaft speed ............. 544 rpm, 802 rpm, 1,314 rpm,!
2,600 engine rpm
Standard PTO speed (L) ........ 540 rpm/2,580 engine rpm
(H) ........ 1,000 rpm/1 ,978 engine rpm
Direction of rotation .......... Clockwise as viewed from the rear
BRAKE
Type ..................... Foot operating internal expansion
water-proof dry type
Parking brake ............... Main brake use hand operating lock
type
STEERING
Ste~ring type (2-WD) .......... Worm and sector type
(4-WD) .......... Ball screw type
Toe-in (2-WD) & (4-WD) ... 6mm ± 2mm ( 3~ in ~ j~ in)
- 58-
