Step Step 13
å

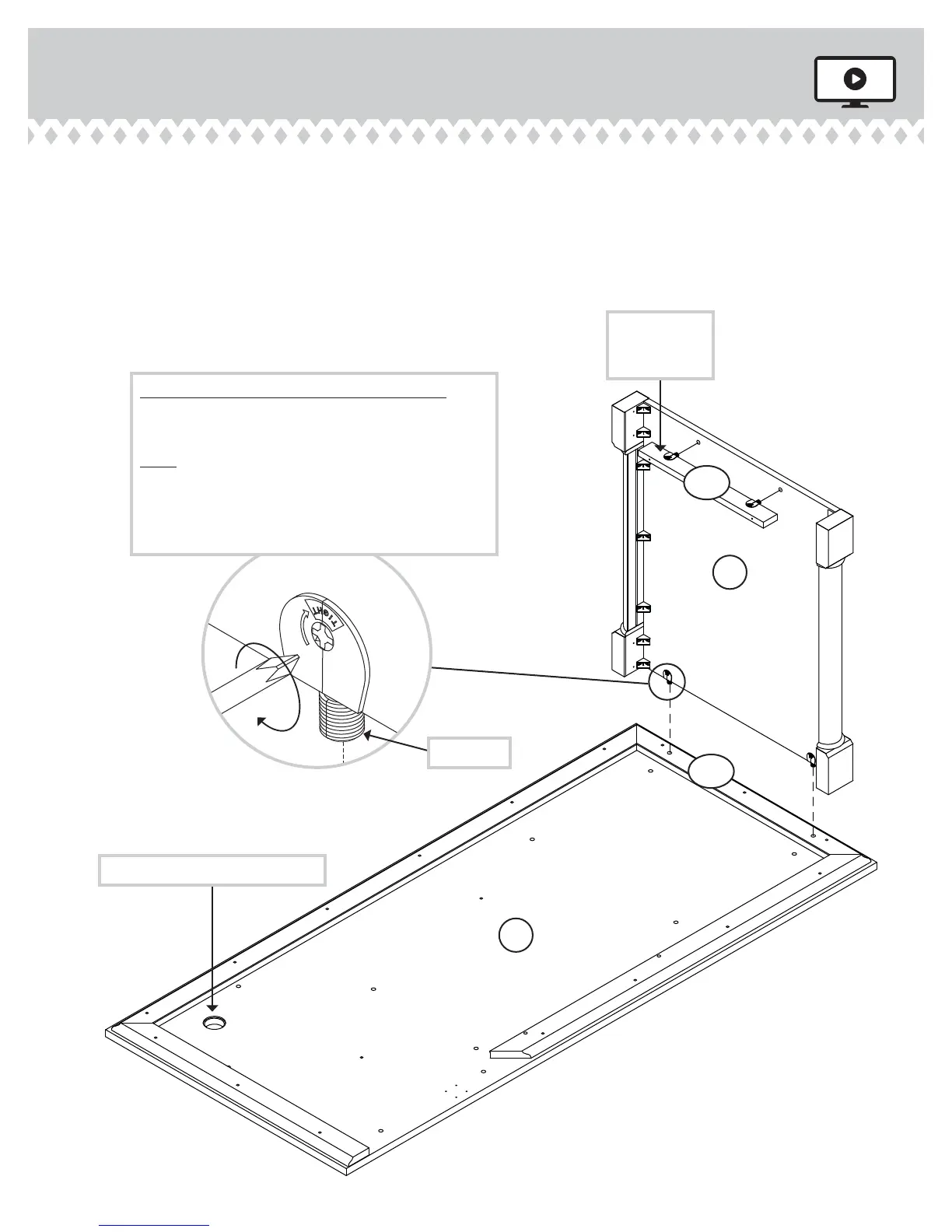

Fasten the OUTER LEFT END (C) to the TOP LEFT SIDE
MOLDING (GGG) on the LEFT TOP (H2). Tighten two
TWIST-LOCK® FASTENERS.
å
Fasten a SPACER (LLL) to the OUTER LEFT END (C).
Tighten two TWIST-LOCK® FASTENERS.
H2
C
Surface with
TWIST-LOCK
®
FASTENERS
GGG
LLL
Dowel end
Large hole should be located here.
Surface with
TWIST-LOCK®
FASTENERS
417714www.sauder.com/services
Page 19
How to use the SAUDER TWIST-LOCK
®
FASTENER
1. Insert the dowel end of the FASTENER into the hole of
the adjoining part.
NOTE: The dowel end of the FASTENER must remain
fully inserted in the hole of the adjoining part while
locking the FASTENER.
2. Tighten the FASTENER with a Phillips screwdriver as
tight as possible.
