14 SawStop 10” Industrial Cabinet Saw

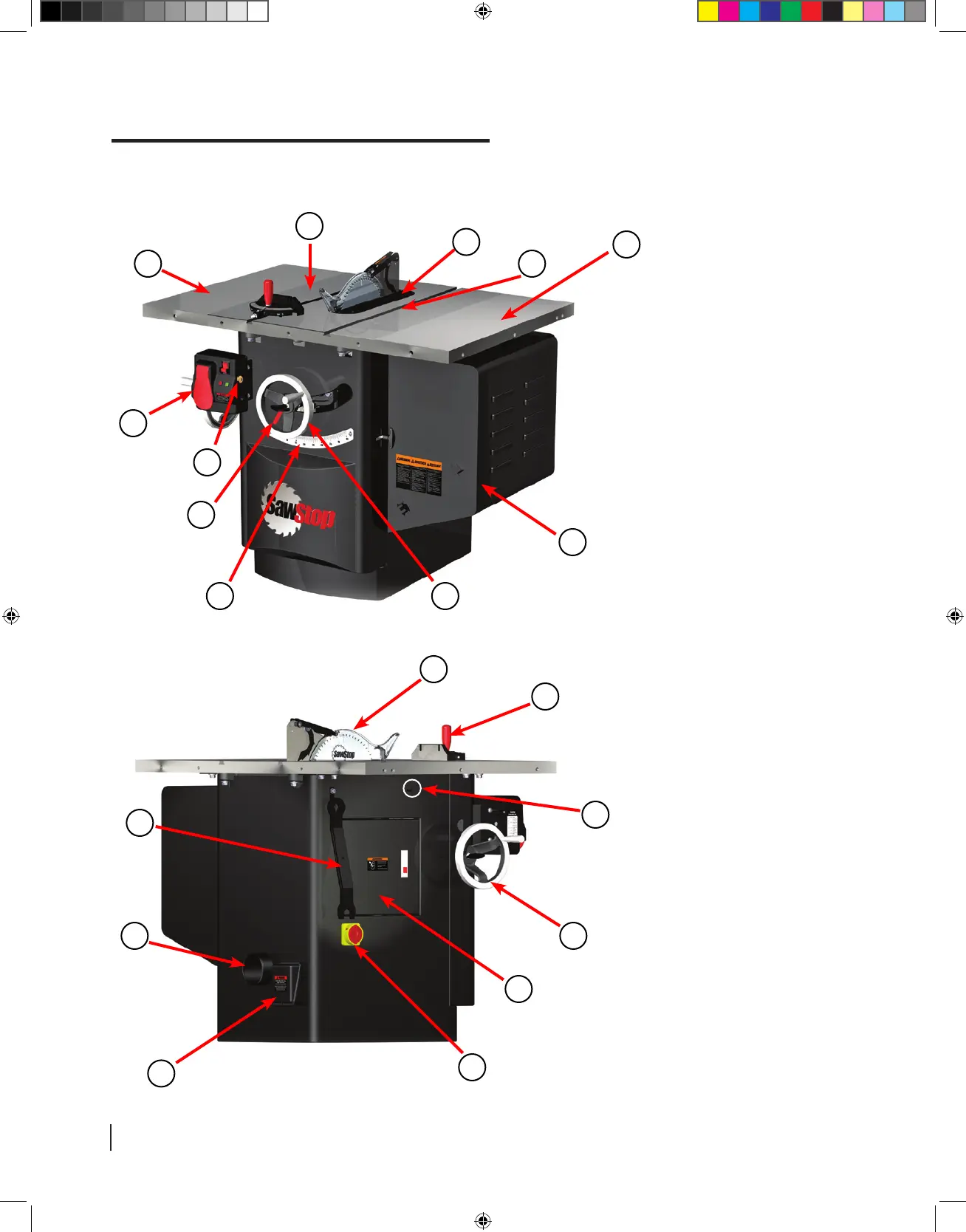

Get to Know Your Saw
The major components of your saw are identied below. Make sure you can identify these components in order
to follow the instructions in this manual.
1. Table Top
2. Extension Wings
3. Blade Guard
4. Standard Table Insert
5. Switch Box
6.
Elevation Hand Wheel
7. Tilt Hand Wheel
8.
Motor Cover
9. Terminal Box
10.
Dust Port
11. Miter Gauge
12. Blade Wrenches (2)
13.
Belt Access Door
14. Bypass Key
15.
Spreader / Riving Knife
Storage Pin
16. Miter Gauge Slots
17.
Tilt Angle Indicator (red)
18.
Tilt Angle Scale
19. Disconnect Switch
External Components
Fig. 2
Fig. 3
8
12
9
5
6
4
7
2
3
1
13
14
11
10
15
16
17
18
2
19
