SBC PCD2.M150 User Manual

Saia-Burgess Controls AG
Manual Manual PCD 1 / PCD 2 Series │ Document 26 / 737 EN22 │ 2013-11-26
5
Input/output (I/O) modules
5-9
Digital input modules
5.2.1 PCD2.E11x, 8 digital inputs
Application
Low-cost input module for source or sink operation with 8 inputs, electrically
connected. Suitable for most electronic and electromechanical switching elements
at 24 VDC. The PCD2.E111 differs from the PCD2.E110 in its shorter input delay,
typically 0.2 ms.
Technical data
Number of inputs: 8 electrically connected,
source or sink operation
Input voltage E110 :
E111 :
E112 :
E116 :
Special :
24 VDC (15…30 VDC) smoothed or pulsed
24 VDC (15…30 VDC) smoothed, max. 10 % residual ripple
12 VDC (7.5…15 VDC) smoothed, max. 10 % residual ripple
5 VDC (1…7 VDC) smoothed, max. 10 % residual ripple
other values on request
Input current: 6 mA at 24 VDC
Input delay E110 :
E111 :
E112 :
E116:
typically 8 ms
typically 0.2 ms
typically 9 ms
typically 0.2 ms
Resistance to interference:
acc. to IEC 801-4
2 kV under capacitive coupling
(whole trunk group)
Internal current consumption:
(from +5 V bus)
1 … 24 mA
typically 12 mA
Internal current consumption:
(from V+ bus)
0 mA
External current consumption: max. 48 mA (all inputs=1) at 24 VDC
Terminals: Pluggable 10-pole screw terminal block
(4 405 4847 0), for wires up to 1.5 mm²

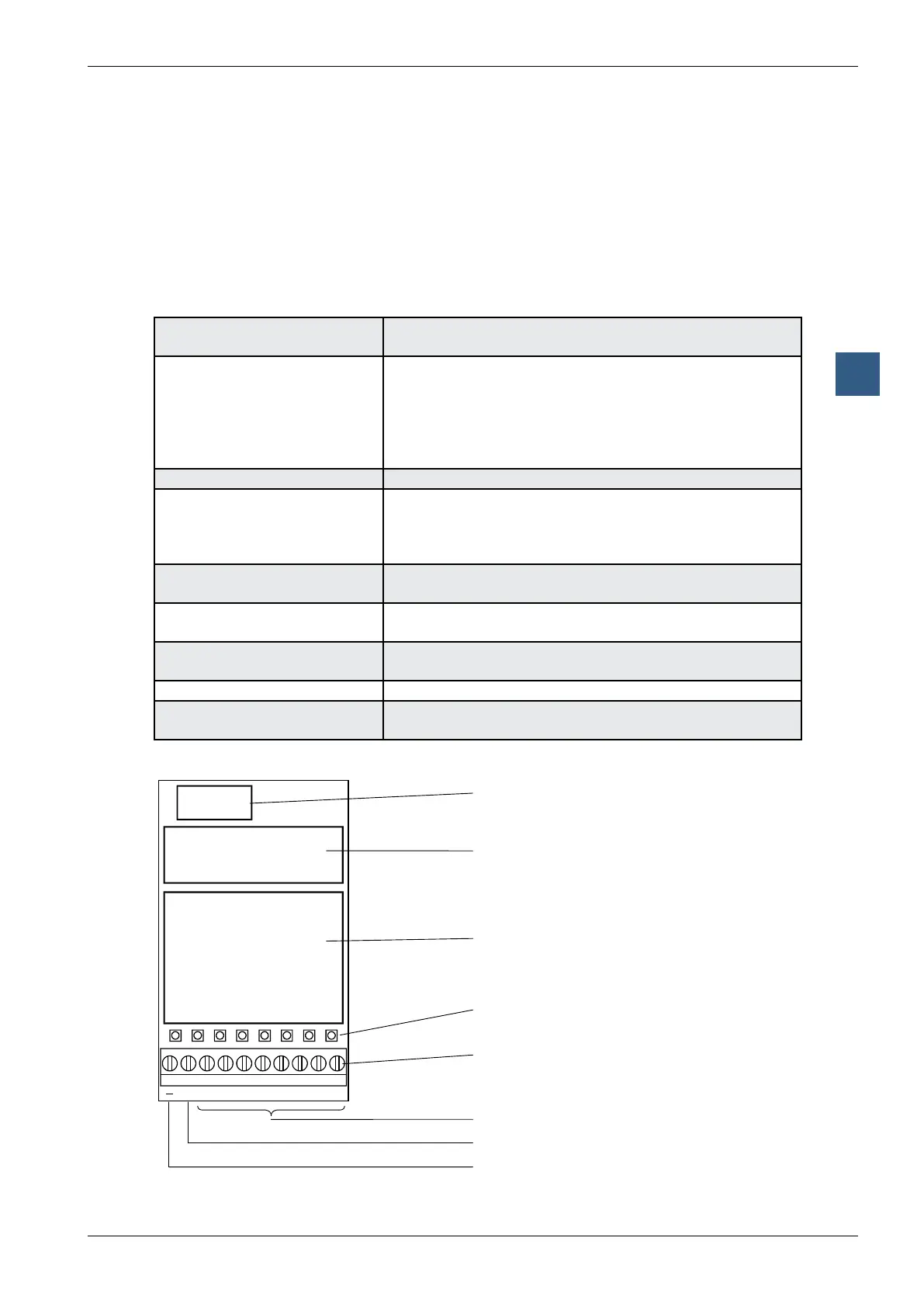

LEDs and connection terminals
9 8 7 6 5 4 3 2 1 0
E0E1E2E3E4E5E6E7
L
Bus connector
Bus interface and
Threshold switches
Input circuits
LEDs
Screw terminals
Inputs E0 to E7
Input load resistors
User ground -
