IPM25
User Manual
4
Electrical Connection Information
Sensor Connections
The standard sensor connection is a 5 pin 723 series Binder connector.
PIN 1 +ve Excitation
PIN 2 -ve Excitation, TEDS Common
PIN 3 +ve Signal
PIN 4 -ve Signal
PIN 5 TEDS

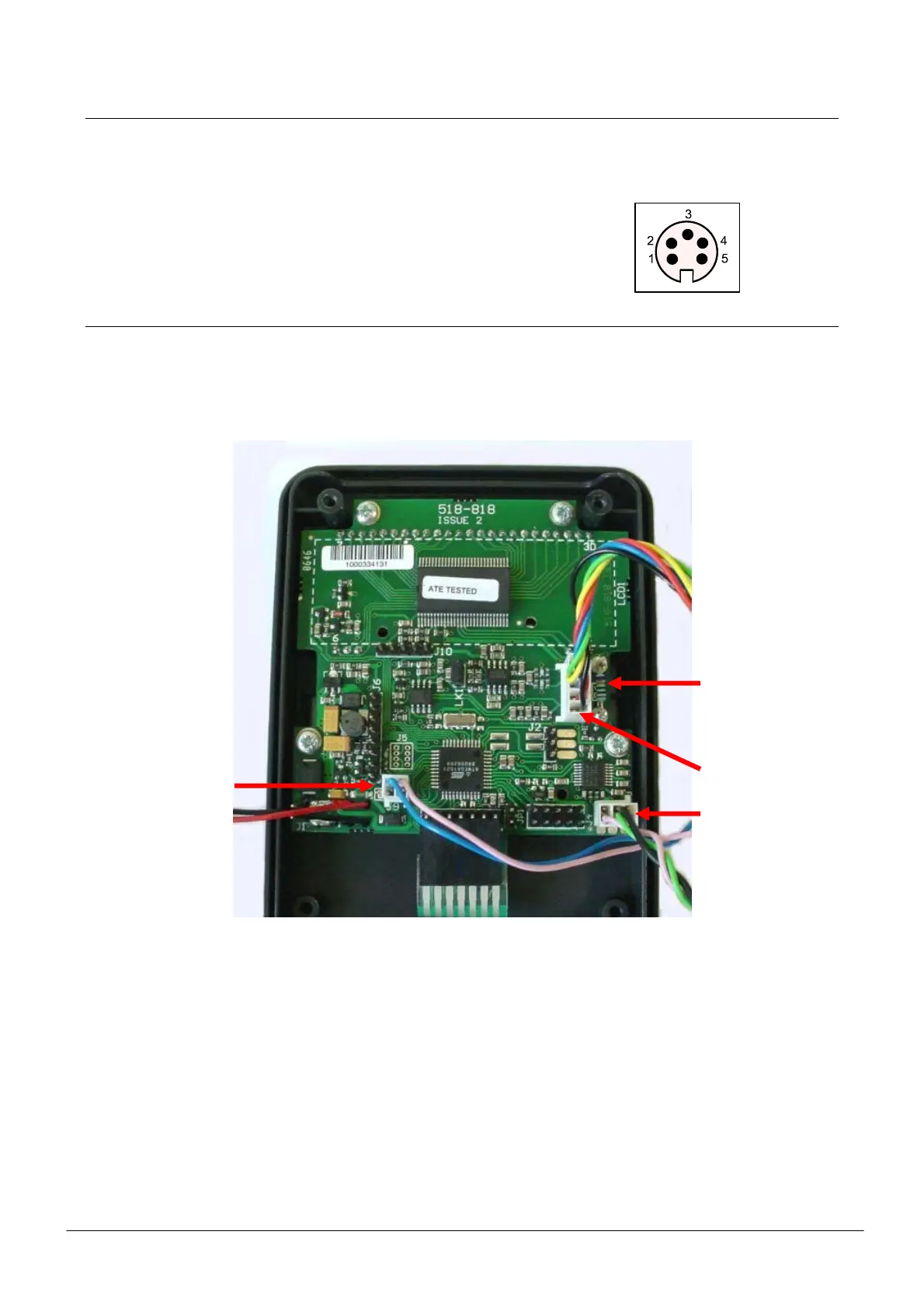

Internal Connections
It may be necessary from time to time to know what the internal connections are. For example, if you disturb
some of the connections whilst trying to insert the range legends, or if you need to change the internal shunt
calibration resistor. These are shown below for reference only:-
There are six push buttons on the front panel of the IPM25, which are available for use in normal operation.
Each of these is described below:-
Shunt Calibration Resistor
Sensor Connections
RS232 option
J9
See next page for Charge & TEDs position
instructions
J9 TEDs Position
