SCAN 80 - Stove Removal from Pallet

A
Stove:
Path:
Articlenumber:
Material:
Date:
Constructed/Changed by:
SCAN A/S
DK-5492 Vissenbjerg©
Drawing
number:
Name:
C:\Working Folder\Designs\Scan 80\90580025B.idw
90580025B
Afmontering fra Palle
12-04-2021
KEN
Scan 80
Weight:
Area:
N/A N/A
1
A ( 0,13 : 1 )
B ( 1:2 )
C ( 1:2 )
A
Stove:
Path:
Articlenumber:
Material:
Date:
Constructed/Changed by:
SCAN A/S
DK-5492 Vissenbjerg©
Drawing
number:
Name:
C:\Working Folder\Designs\Scan 80\90580025.idw
90580025
Afmontering fra Palle
10-05-2017
jwa
Scan 80
Weight:
Area:
N/A N/A
A ( 0,13 : 1 )
B ( 1:2 )
C ( 1:2 )
A
Stove:
Path:
Articlenumber:
Material:
Date:
Constructed/Changed by:
SCAN A/S
DK-5492 Vissenbjerg©
Drawing
number:
Name:
C:\Working Folder\Designs\Scan 80\90580025.idw
90580025
Afmontering fra Palle
10-05-2017
jwa
Scan 80
Weight:
Area:
N/A N/A
NAVN:
STI:
DIM.:
MATERIALE:
DATO:
SIGN:
Scan A/S
DK-5492 Vissenbjerg
©
TG.NR:EMNE:
C:\Working Folder\Designs\Bygningsdele\Skruetrækker.ipt
Plade, st. 240
Skruetrækker
18-01-2006
sr
VÆGT:
AREAL:
0,54 kg
12726 mm^2
M3 NR.:
A
Stove:
Path:
Articlenumber:
Material:
Date:
Constructed/Changed by:
SCAN A/S
DK-5492 Vissenbjerg©
Drawing
number:
Name:
C:\Working Folder\Designs\Scan 80\90580025B.idw
90580025B
Afmontering fra Palle
12-04-2021
KEN
Scan 80
Weight:
Area:
N/A N/A
A
Stove:
Path:
Articlenumber:
Material:
Date:
Constructed/Changed by:
SCAN A/S
DK-5492 Vissenbjerg©
Drawing
number:
Name:
C:\Working Folder\Designs\Scan 80\90580025B.idw
90580025B
Afmontering fra Palle
12-04-2021
KEN
Scan 80
Weight:
Area:
N/A N/A
C ( 1 : 2 )
C
Stove:
Path:
Articlenumber:
Material:
Date:
Constructed/Changed by:
SCAN A/S
DK-5492 Vissenbjerg©
Drawing
number:
Name:
C:\Working Folder\Designs\Scan 80\90580037.idw
90580037
Opspænding af bauart fjeder
04-10-2017
jwa
Scan 80
Weight:
Area:
N/A N/A
C ( 1 : 2 )
C
Stove:
Path:
Articlenumber:
Material:
Date:
Constructed/Changed by:
SCAN A/S
DK-5492 Vissenbjerg©
Drawing
number:
Name:
C:\Working Folder\Designs\Scan 80\90580037.idw
90580037
Opspænding af bauart fjeder
04-10-2017
jwa
Scan 80
Weight:
Area:
N/A N/A
D ( 1 : 5 )
E ( 1:1 )
D
E
Stove:
Path:
Articlenumber:
Material:
Date:
Constructed/Changed by:
SCAN A/S
DK-5492 Vissenbjerg©
Drawing
number:
Name:
C:\Working Folder\Designs\Scan 80\90580028.idw
90580028
højdejustering
16-05-2017
jwa
Scan 80
Weight:
Area:
N/A N/A
Bagklap fjernes ved at løfte op og "vippe" øverste kant ud
12

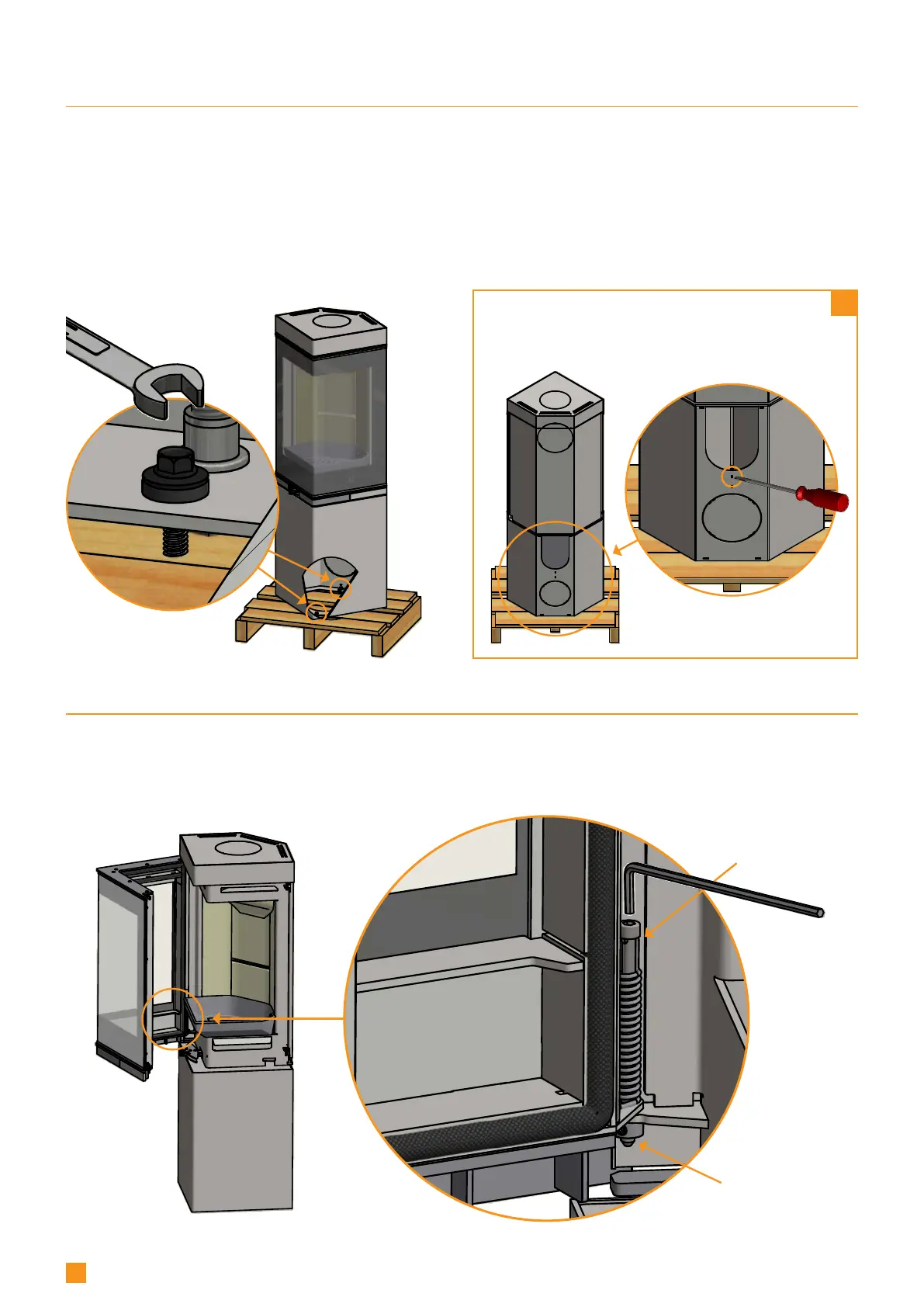

REMOVAL OF THE STOVE FROM THE PALLET
Before installing the stove, check that it has no damages.
The stove is secured on the pallet with two screws on the inside.
For Scan 80-2 and 80-4, open the door and dismount the screws.
For Scan 80-1 and 80-3, you can get access to the screws (1) from the rear of the stove.
NOTE: Do not touch the glass
NOTE: The stove must be taken off the pallet by dismounting the screws. Do not knock off the pallet, as this can damage the stove.
Remove the plate at the rear by inserting the tip of a
flat screwdriver into the little slot under the plate and
lift upwards, where after the upper edge of the plate can be
“tipped” out
DOOR (SELF-CLOSING)
The door is delivered without self-closing function.
NB: If you want a self-closing door, the spring can be tightened by turning the long screw (inside the spring) clockwise using a
Allen key (5 mm) and at the same time tightening the pointed screw at the bottom with a Allen key (2.5 mm).
Long screw
Pointed screw
