N ( 0,40 : 1 )
N
Stove:
Path:
Articlenumber:
Material:
Date:
Constructed/Changed by:
SCAN A/S
DK-5492 Vissenbjerg©
Drawing
number:
Name:
C:\Working Folder\Designs\Scan 80\90580032.idw
90580032
Indstilling af Luftspjæld
18-05-2017
jwa
Scan 80
Weight:
Area:
N/A N/A
1
2
3 4
5
19

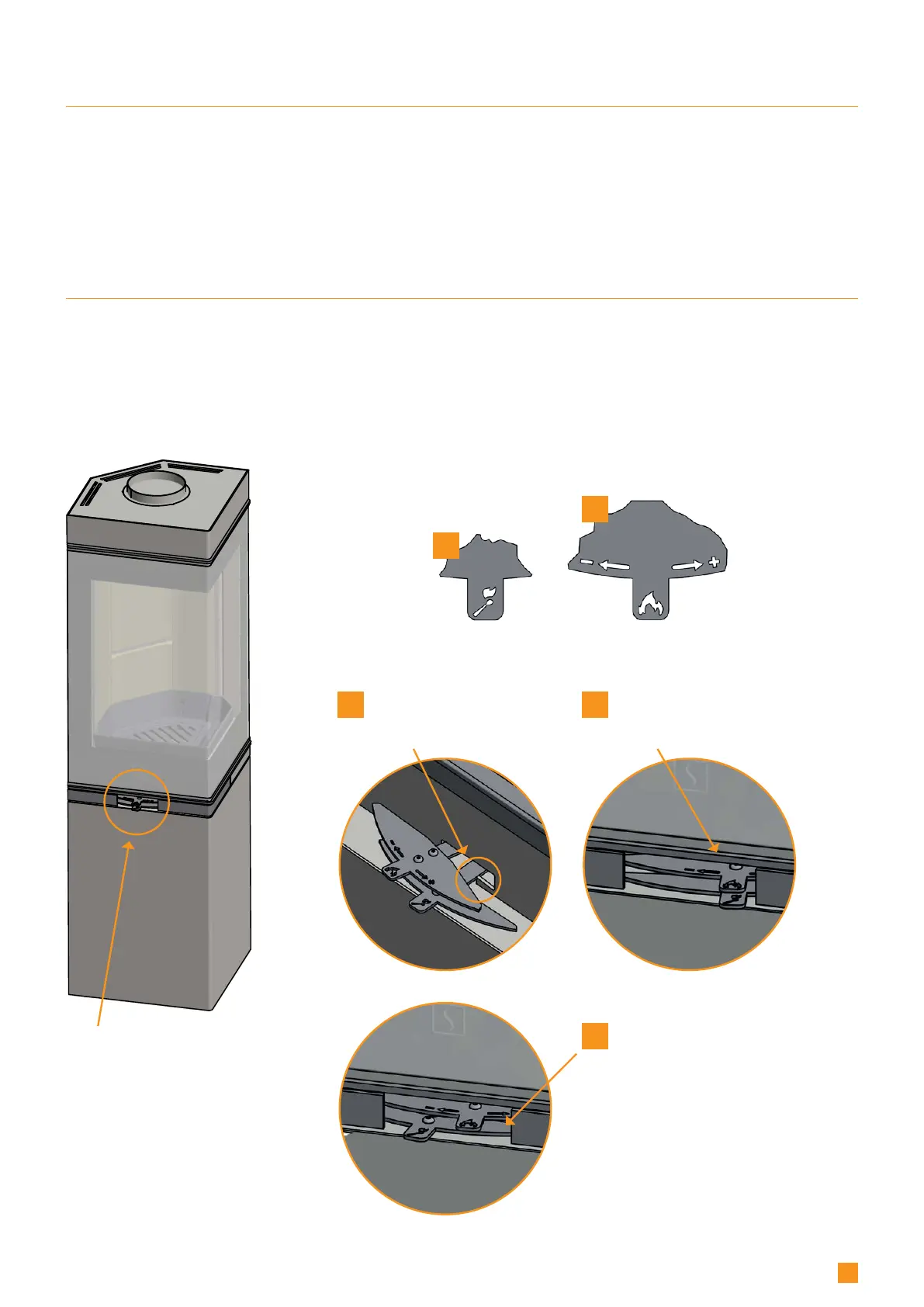

ADJUSTMENT OF PRIMARY- AND SECONDARY AIR
The primary air (1) is controlled by the lower damper (shown with a match and a small flame).
The secondary air (2) is controlled by the upper damper (shown with a big flame).
When firing a cold stove, pull both dampers to the right. The primary air damper will meet a stop (3).
Lift up the handle for the primary air damper and then pull it all the way to the right (4).
See our video about correct firing and adjustment of primary- and secondary air on www.scan-stoves.com or scan the QR-code
on next page.
ADJUSTMENT OF PRIMARY- AND SECONDARY AIR/WARM STOVE
When the stove is warm, adjust the primary- and secondary air dampers to 20/80 (5).
As long as the stove is warm, the primary air is only to be adjusted within the area before the stop (3).
Primary air: 0-20% at soft wood
Secondary air: 70-80%
Damper for
primary air
Damper for
secondary air
When firing a cold stove, lift
the damper up over the stop
and all the way to the right.
When the stove is warm,
you can adjust the primary-
and secondary air to:
20% primary air
80% secondary air
Pull the primary air damper
to the right, until you reach
a stop.
/COLD STOVE
NOTE: See page 28 "Mounting the UK - blocking and screw"
Dampers for primary-
and secondary air
