SCAN 80 - Heat-Storage System

P-P ( 1 : 7 )
R ( 1:5 )
P
P
R
Stove:
Path:
Articlenumber:
Material:
Date:
Constructed/Changed by:
SCAN A/S
DK-5492 Vissenbjerg©
Drawing
number:
Name:
C:\Working Folder\Designs\Scan 80\90580034.idw
90580034varmeakkumulerende sten 19-05-2017
jwa
Scan 80
Weight:
Area:
N/A N/A
Spjæld for varmeakkumulerende sten i lukket position
Trækkes til venstre for at åbne for konvektionshullerne i toppen
og lukke den lagrede varme ud
1 2
P-P ( 1 : 7 )
R ( 1:5 )
P
P
R
Stove:
Path:
Articlenumber:
Material:
Date:
Constructed/Changed by:
SCAN A/S
DK-5492 Vissenbjerg©
Drawing
number:
Name:
C:\Working Folder\Designs\Scan 80\90580034.idw
90580034varmeakkumulerende sten 19-05-2017
jwa
Scan 80
Weight:
Area:
N/A N/A
Spjæld for varmeakkumulerende sten i lukket position
Trækkes til venstre for at åbne for konvektionshullerne i toppen
og lukke den lagrede varme ud
P-P ( 1 : 7 )
R ( 1:5 )
P
P
R
Stove:
Path:
Articlenumber:
Material:
Date:
Constructed/Changed by:
SCAN A/S
DK-5492 Vissenbjerg©
Drawing
number:
Name:
C:\Working Folder\Designs\Scan 80\90580034.idw
90580034varmeakkumulerende sten 19-05-2017
jwa
Scan 80
Weight:
Area:
N/A N/A
Spjæld for varmeakkumulerende sten i lukket position
Trækkes til venstre for at åbne for konvektionshullerne i toppen
og lukke den lagrede varme ud
P-P ( 1 : 7 )
R ( 1:5 )
P
P
R
Stove:
Path:
Articlenumber:
Material:
Date:
Constructed/Changed by:
SCAN A/S
DK-5492 Vissenbjerg©
Drawing
number:
Name:
C:\Working Folder\Designs\Scan 80\90580034.idw
90580034varmeakkumulerende sten 19-05-2017
jwa
Scan 80
Weight:
Area:
N/A N/A
Spjæld for varmeakkumulerende sten i lukket position
Trækkes til venstre for at åbne for konvektionshullerne i toppen
og lukke den lagrede varme ud
16
HEAT-STORAGE SYSTEM
Heat-storage stones are available for Scan 80-3, 80-4, 80-3C and 80-4C.
Heat-storage stones are made from a special material with a high heating capacity. The stones are heated up during the firing
and gives off the heat again after the firing, which means that the stove stays warm for a longer time.
¬ Firing with the air grid open will give a quicker heating. Firing with theair grid closed will extend the heating time of the stove

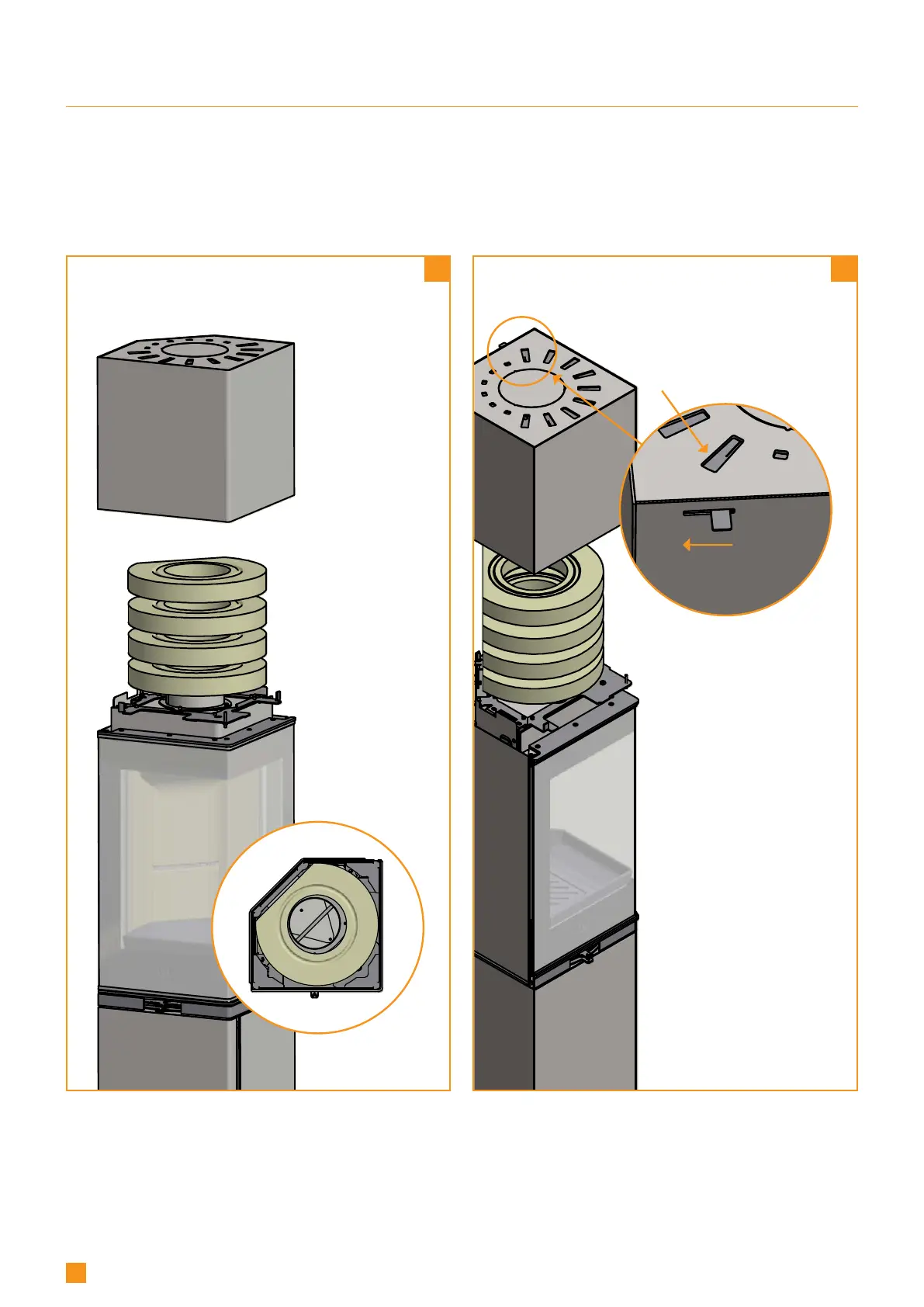

The heat-storage stones are placed in the High Top
around the flue pipe as illustrated
Place the High Top over the heat-storage stones
Air grid for
heat-storage stones
in closed position
Pull to the left to open
the convection holes
in the top and
let out the stored heat
(ACCESSORY)
