13
HEIGHT ADJUSTMENT OF STOVE

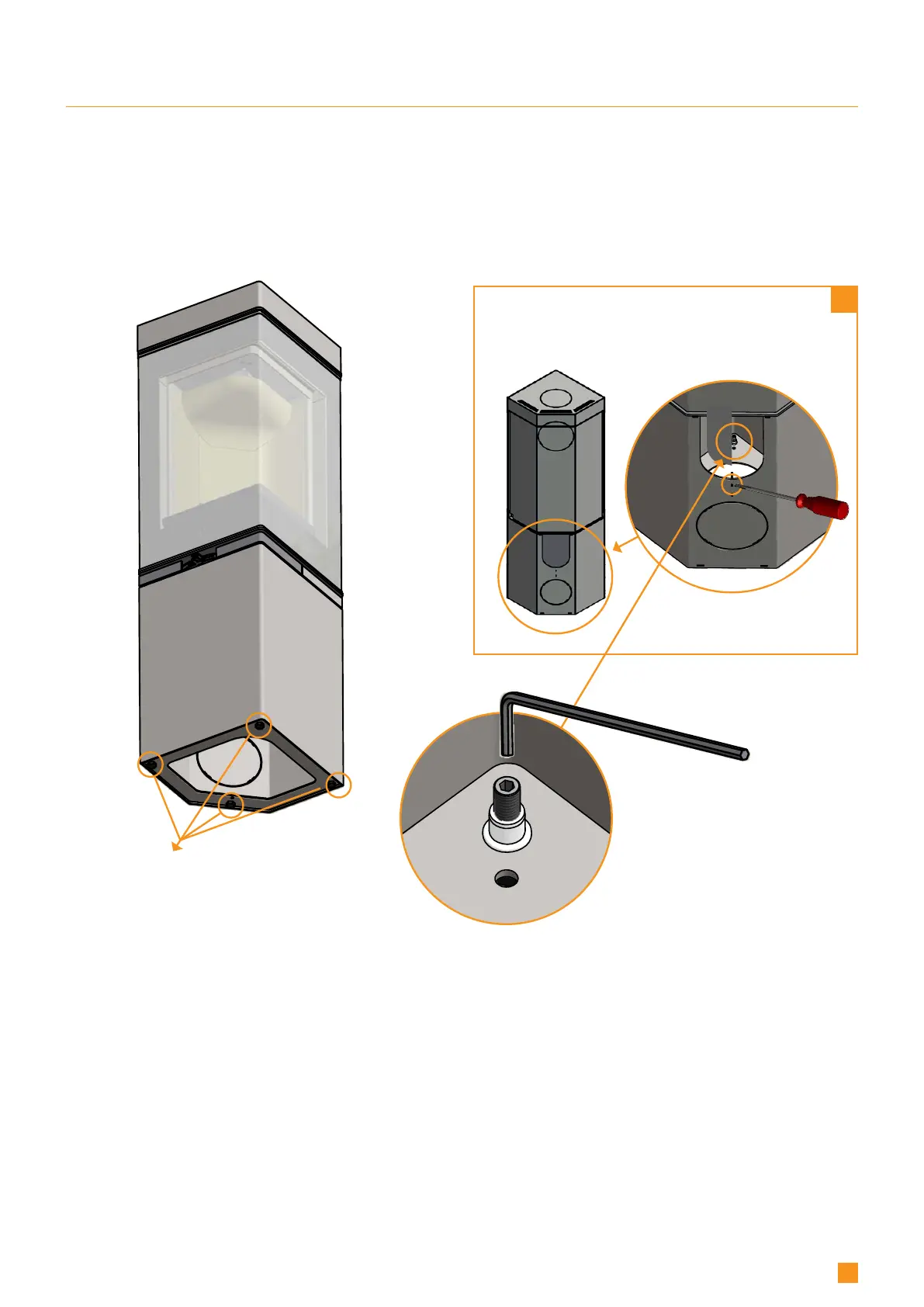

The stove has four adjustment screws under the stove. Use the adjustment screws to get the stove to stand straight and level.
For Scan 80-2 and 80-4, open the door and adjust the screws.
For Scan 80-1 and 80-3, you can get access to the adjustment screws (1) from the rear of the stove.
NOTICE: It is very important that the stove is level to allow an optimal function of the door.
Adjustment screws
Adjust the screws so that the
stove stands straight and level
Remove the plate at the rear by inserting the tip of a
flat screwdriver into the little slot under the plate and
lift upwards, where after the upper edge of the plate can be
“tipped” out
