MOUNTING THE UK - BLOCKING AND SCREW
The Scan 80-1, 80-2, 80-3, 80-4, 80-3C and 80-4C have been recommented as suitable for use in smoke control areas when
burning wood logs and when fitted with a mechanical stop to prevent that the secondary air valve cannot be closed lower than
868 mm
2
.
NOTE: In order to a achieve this, the blocking piece and screw (M5 x 8) must be placed as shown in the pictures, to prevent that
the secondary air valve can be closed completely.
A
B
NAVN:
STI:
M3 NR.:
MATERIALE:
DATO:
SIGN:
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 80\90580074.idw
90580074
Scan 80 UK spjæld og skrue
10-09-2018
ken
Scan 80
VÆGT:
AREAL:
N/A
N/A
DIM.:
Scan A/S
A
B
NAVN:
STI:
M3 NR.:
MATERIALE:
DATO:
SIGN:
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 80\90580074.idw
90580074
Scan 80 UK spjæld og skrue
10-09-2018
ken
Scan 80
VÆGT:
AREAL:
N/A
N/A
DIM.:
Scan A/S
A
B
NAVN:
STI:
M3 NR.:
MATERIALE:
DATO:
SIGN:
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 80\90580074.idw
90580074
Scan 80 UK spjæld og skrue
10-09-2018
ken
Scan 80
VÆGT:
AREAL:
N/A
N/A
DIM.:
Scan A/S

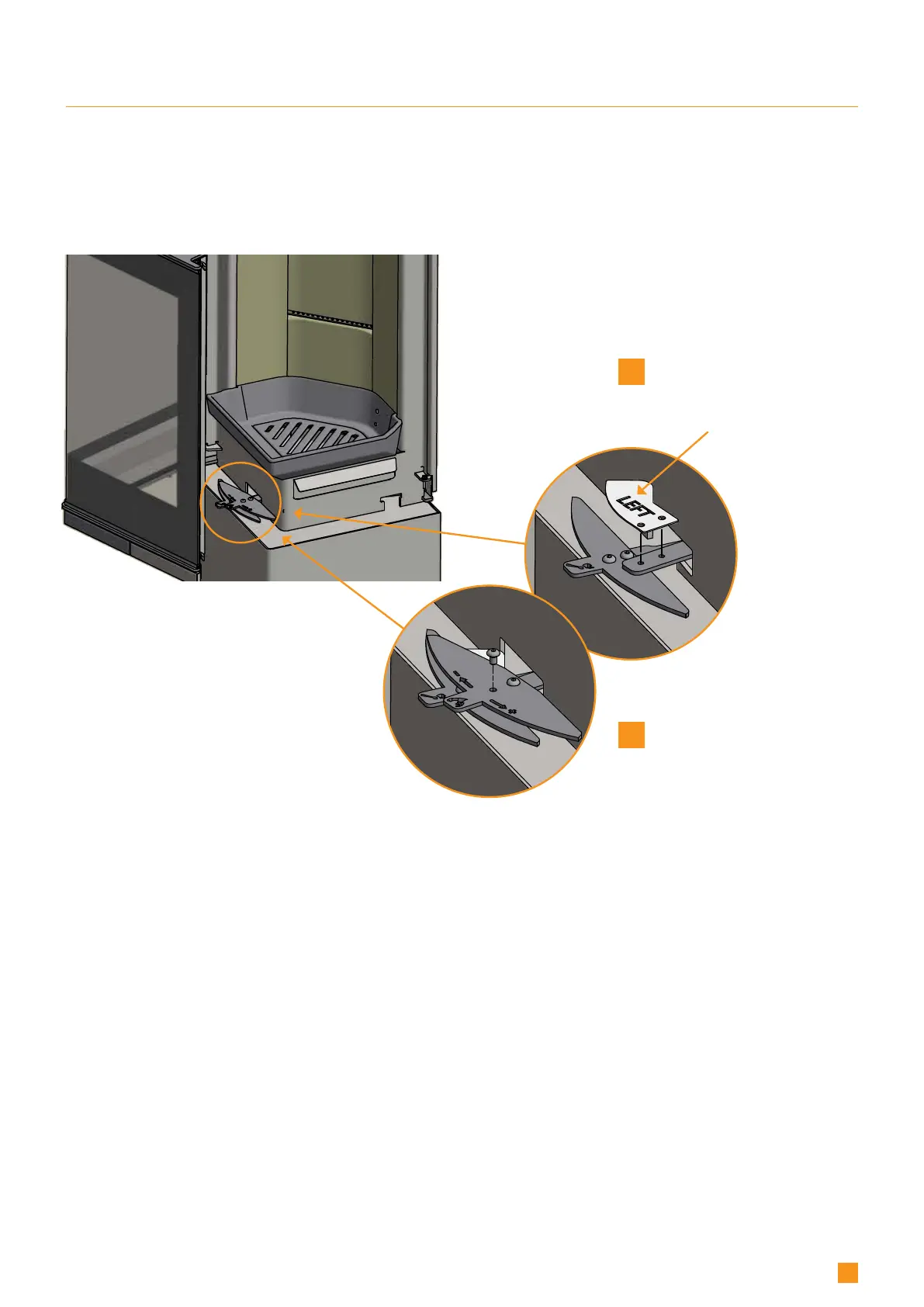

Remove the secondary air damper
and place the UK-blocking piece
Remount the secondary air
damper on top and replace the
front screw with the longer
UK-screw
1
2
