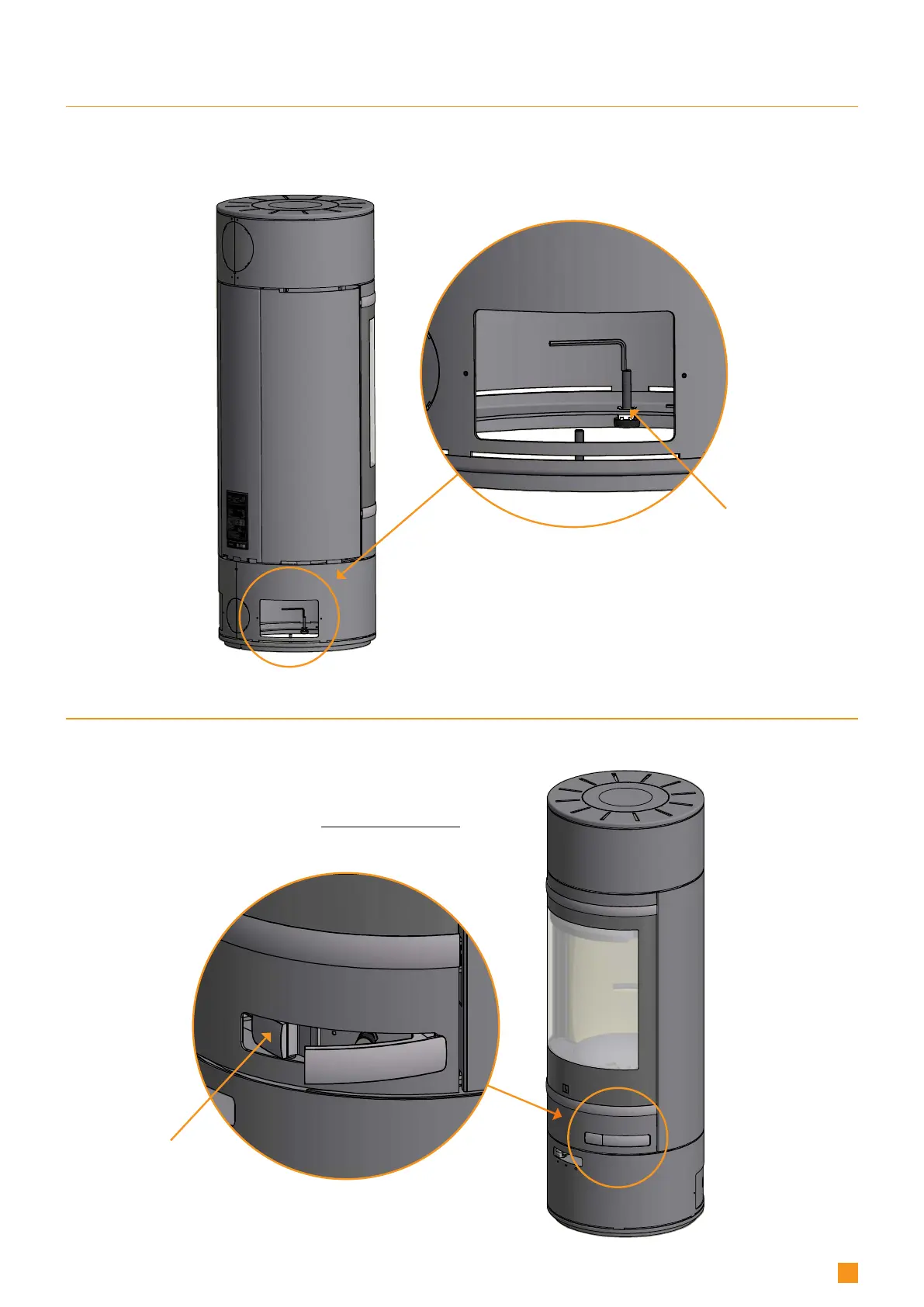

OPENING OF THE DOOR
To open the door of the Scan 85, press the handle release to the left of the handle. The handle will pop out, ant the door can be
pulled to side. The door must roll on the ball bearings.
IMPORTANT: Do not lift the door, as this can push the ball bearings into
a false position!
IMPORTANT: Always push/draw the door all the way to the right before
closing the handle!
Handle release
HEIGHT ADJUSTMENT OF STOVE
The stove has four adjustment screws under the stove. Use the adjustment screws to get the stove to stand straight and level.
NOTICE: It is very important that the stove is level to allow an optimal function of the door.
Adjustment screw
