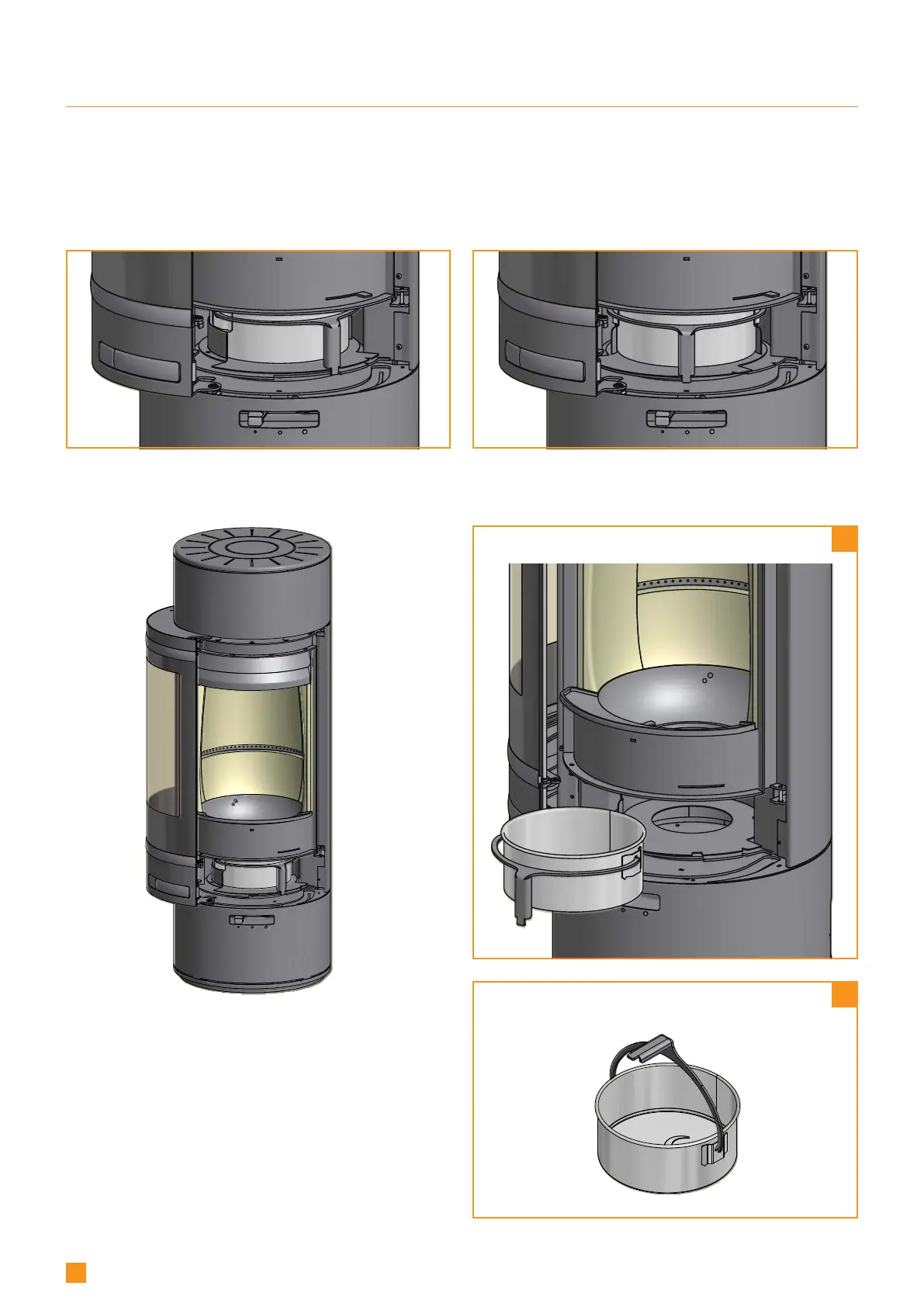

Ash container in closed position Ash container in open position
ASH CONTAINER
¬ Open the door of the stove to reach the ash container under the combustion chamber
¬ The ash container must always be closed while stoking
¬ The ash container must not be become too full and must therefore be emptied at regular intervals
¬ Never empty ashes into a flammable container. Ashes can contain glowing embers long after you finish operating the stove
The handle on the ash container can be flipped up and
used to carry the ash container
Removal of the ash container from the stove
