SCAN 85 - Normal Load Settings

21
NAVN:
STI:
DIMENSION:
MATERIALE:
DATO:
SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg
©
TG.NR:
EMNE:
I:\Udvikling\TEGNING\Scan85\90585012.idw
90585012
Brændkammer
08-09-10
BC
Scan 85
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE:
DATO:
SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg
©
TG.NR:
EMNE:
I:\Udvikling\TEGNING\Scan85\90585012.idw
90585012
Brændkammer
08-09-10
BC
Scan 85
VÆGT:
AREAL:
N/A
N/A
100%
0%
A
B
NAVN:
STI:
DIMENSION:
MATERIALE:
DATO:
SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg
©
TG.NR:
EMNE:
I:\Udvikling\TEGNING\Scan85\90585013.idw
90585013
Primær + sekundær spjæld og rysterist.
08-09-10
BC
Scan 85
VÆGT:
AREAL:
N/A
N/A
3
C
NAVN:
STI:
DIMENSION:
MATERIALE:
DATO:
SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg
©
TG.NR:
EMNE:
I:\Udvikling\TEGNING\Scan85\90585034.idw
90585034
Positionering af askespand
16-11-10
BC
Scan 85
VÆGT:
AREAL:
1,56 kg
430179 mm^2
C
NAVN:
STI:
DIMENSION:
MATERIALE:
DATO:
SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg
©
TG.NR:
EMNE:
I:\Udvikling\TEGNING\Scan85\90585034.idw
90585034
Positionering af askespand
16-11-10
BC
Scan 85
VÆGT:
AREAL:
1,56 kg
430179 mm^2

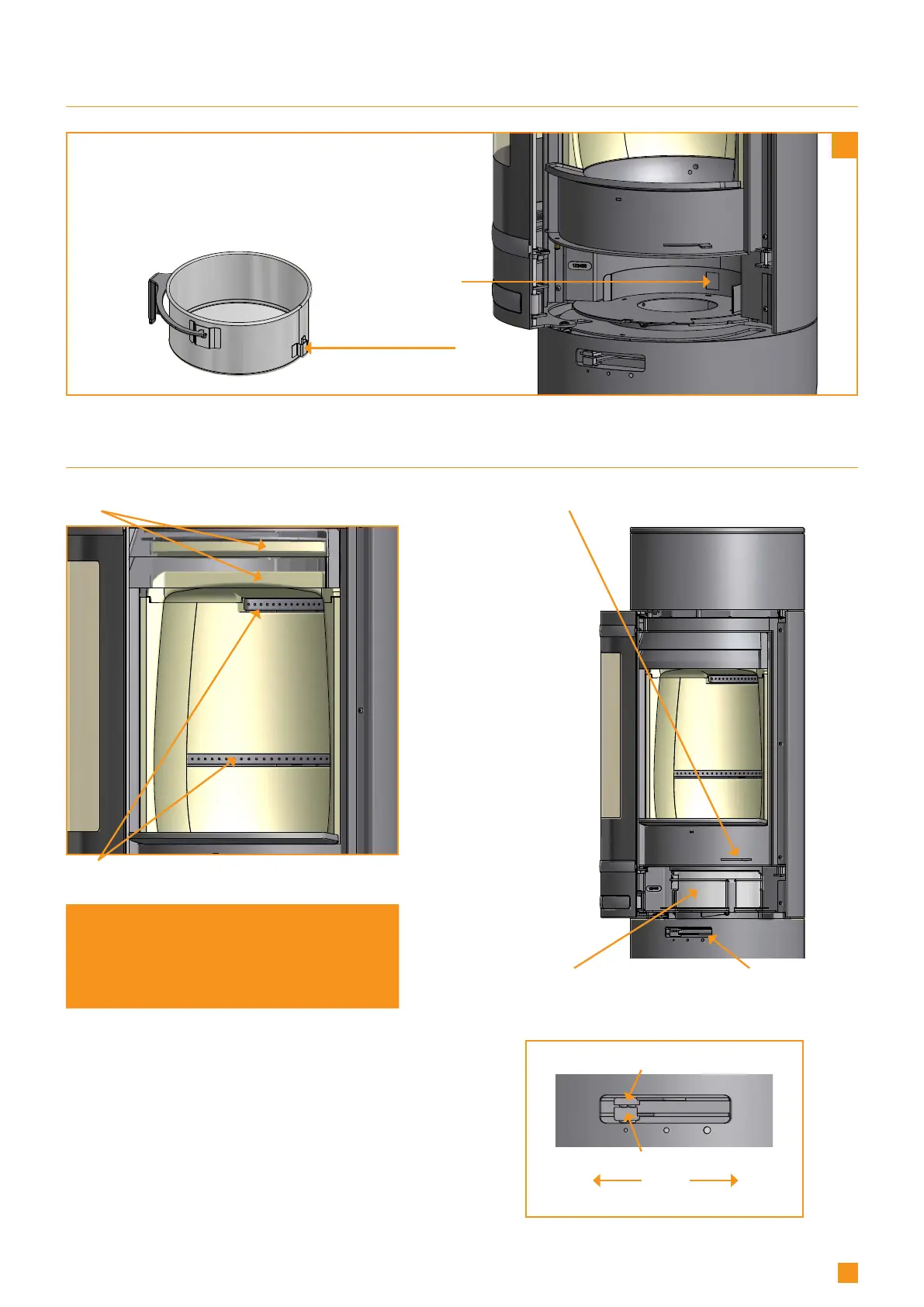

INSTRUCTIONS FOR USE
Adjustment of air supply
primary and secondary damper
Baffle plates Handle for riddling grate
CB-technique
SETTINGS
FOR NORMAL LOAD:
Primary air: 30 - 50%
Secondary air: 60 - 90%
Primary air
Secondary air
Ash container
In order to put back the ash container in the stove, place
the guide mounting in the positioning hole. Turn the ash
container so that the handle is in the closed position
Positioning hole for
guide fitting on
ash container
Guide fitting
ASH CONTAINER
