SCAN 85 - Fitting Flue Connection (Top Outlet)

15
NAVN:
STI:
DIMENSION:
MATERIALE:
DATO:
SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg
©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan85\90585030.idw
90585030
Montage topmodul og dæksel i topafgang
12-11-10
BC
Scan 85
VÆGT:
AREAL:
N/A
N/A
D
NAVN:
STI:
DIMENSION:
MATERIALE:
DATO:
SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg
©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan85\90585029.idw
90585029
Montage af røgstuds og varmeskjold, bagudgang
03-11-2010
BC
Scan 85
VÆGT:
AREAL:
N/A
N/A
7
6
NAVN:
STI:
DIMENSION:
MATERIALE:
DATO:
SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
I:\Udvikling\TEGNING\Scan62\90063020.idw
90063020
Røgstuds med pakning
03-06-09
BC
Scan 63
VÆGT:
AREAL:
0,70 kg
93327 mm^2
NAVN:
STI:
DIMENSION:
MATERIALE:
DATO:
SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg
©
TG.NR:EMNE:
C:\Working Folder\CAD\Inventor 2016\Templates\Standard - Manual.idw
90041014a
Skrue
16-03-2016
hms
Scan 41
VÆGT:
AREAL:
0,00 kg
441 mm^2
1
2
3
NAVN:
STI:
DIMENSION:
MATERIALE:
DATO:
SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg
©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 83\90583007.idw
90583007
Afmontage topplade
31-01-2013
BC
Scan 83
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE:
DATO:
SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg
©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan85\90585017.idw
90585017
Montage af røgstuds, topafgang
28-02-2018
KEN
Scan 85
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE:
DATO:
SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg
©
TG.NR:EMNE:
C:\Working Folder\CAD\Inventor 2016\Templates\Standard - Manual.idw
90041014a
Skrue
16-03-2016
hms
Scan 41
VÆGT:
AREAL:
0,00 kg
441 mm^2

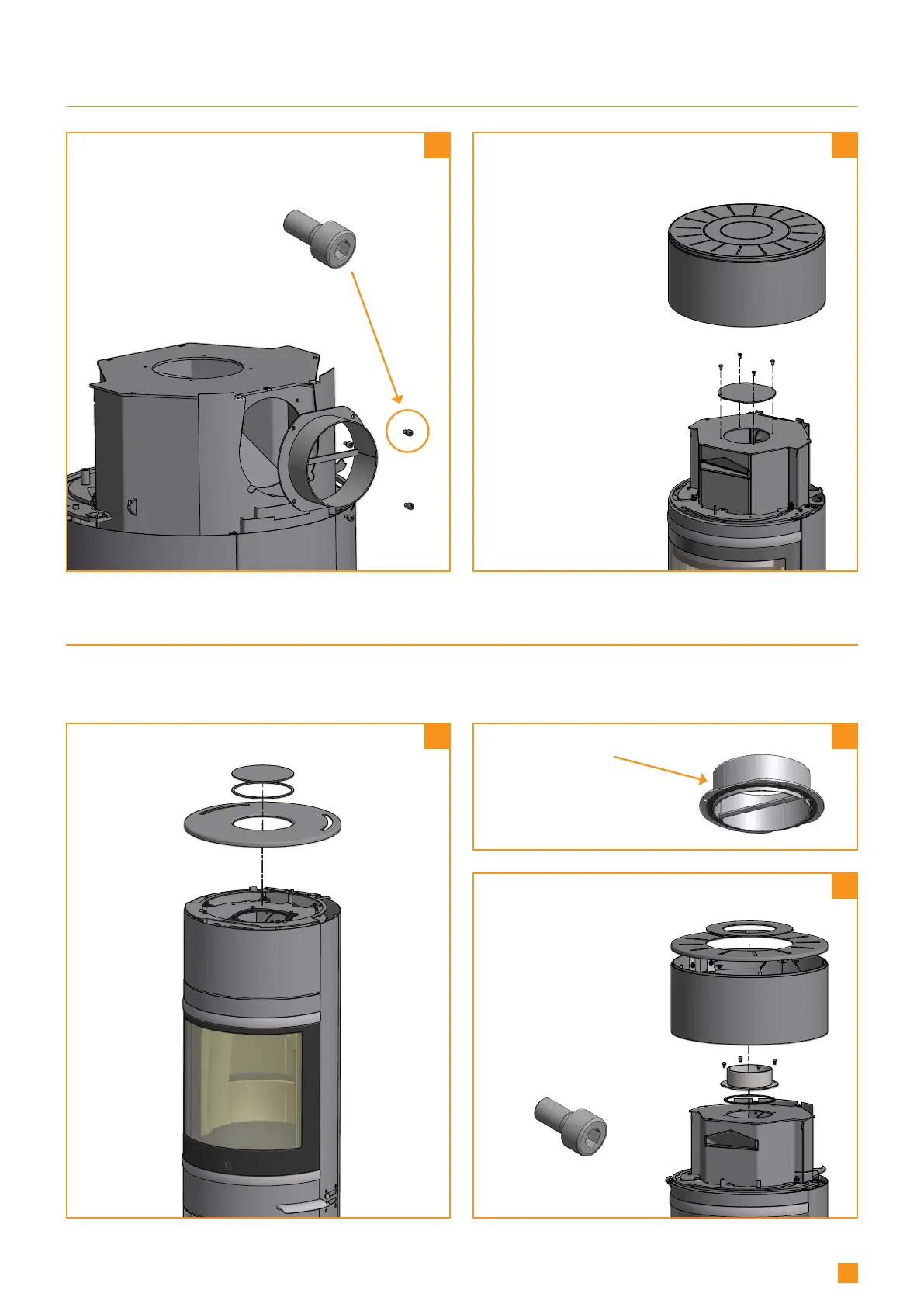

Fit the cover and tighten it.
Replace the top module
Fit the connecting piece with the four screws
FITTING THE FLUE CONNECTION PIECE IN THE REAR OUTLET
4 pcs.
M6x10 mm screws
Fasten the connecting piece with screws
Replace the top module
Lift the top module and flue connection piece from
the stove
Mount the ceramic gasket on the
connecting piece
4 pcs. M6x10 mm screws
FITTING THE FLUE CONNECTION PIECE
The stove is prepared from the factory for top outlet.
The connecting piece is placed loosely in the top outlet of the stove. The gasket and screws can be found in the stove’s
combustion chamber.
IN THE TOP OUTLET
