Fuel system
OPM 320 en-GB 46
© Scania CV AB 2019, Sweden
9.

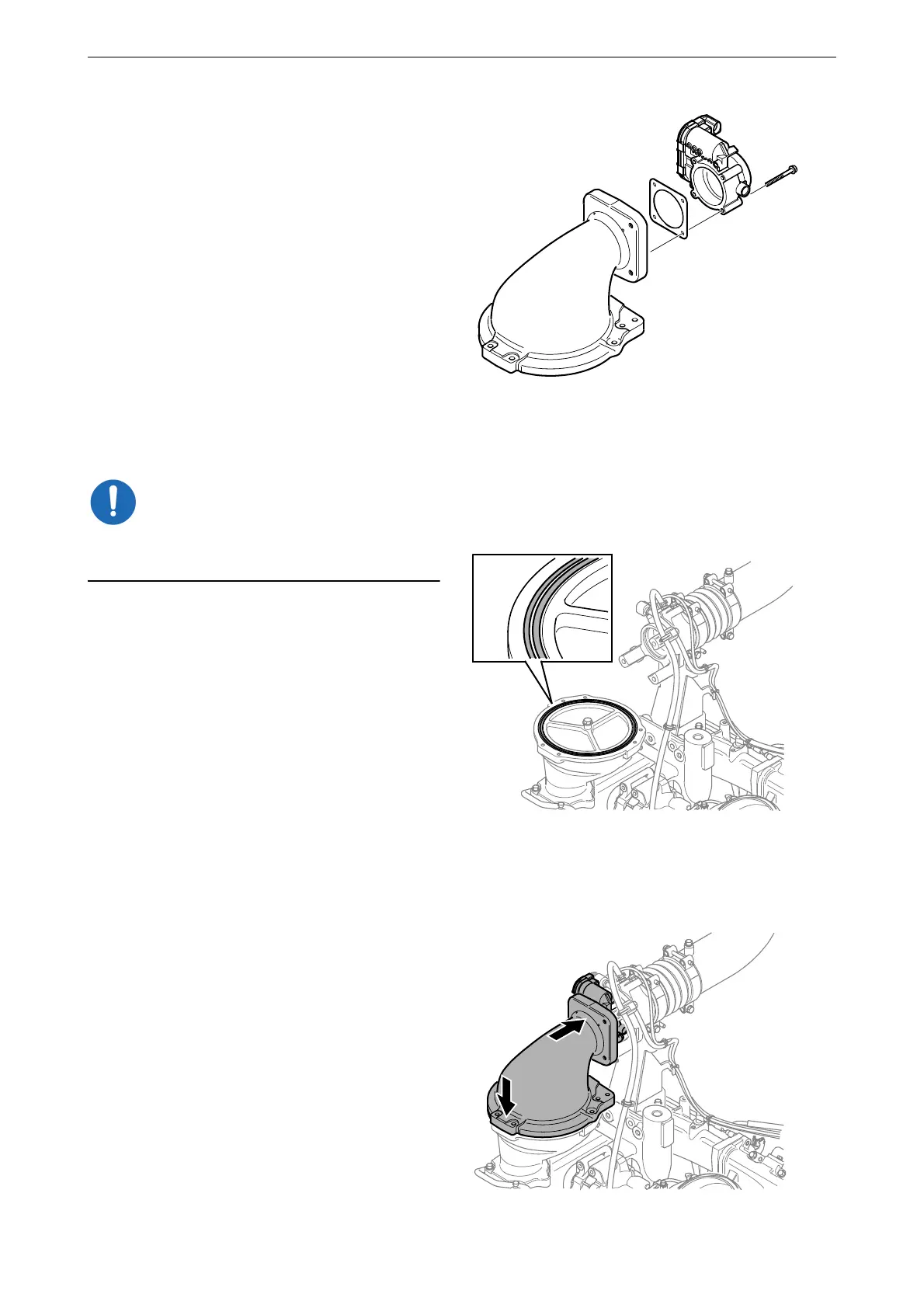

Remove the throttle.
10. Protect the throttle electrical connection
from moisture.
11. Clean the throttle with soap and water. Use a
soft brush to remove stubborn dirt.
Only use soap and water. Solvents and degreas-
ing agents can damage the throttle.
12. Rinse the throttle with hot water.
13. Dry off the water.
14. Spray the outside of the throttle with water-
repellent anti-corrosive oil, for example
LPS1 or equivalent. Make sure that the oil
reaches the holes for the throttle shaft in the
throttle housing.
15. Renew the gasket.
16. Fit the throttle to the flame arrestor housing.
17. Check the O-rings. Renew them if necessary.
18. Fit the flame arrestor housing and the throt-
tle.
