#SC 45TW-SS 10 – 110202 Page 7 of 40
4. Technical Data
4.1. Specifications
Weight : 14 kg (30,9 lb)
Operating pressure range : 3-8 bar (40-115 psi)
Nominal pressure range : 5-7 bar (70-100 psi)
Max pressure : 12 bar (180 psi)
Max working temperature : 95ºC (200ºF)
Max ambient temperature : 140ºC (284ºF)
Rotation speed : 2-4 rpm (see page 15)
Materials : AISI316L, PEEK, PTFE, Ceramic
Adapter types
Portable Installation : 2” BSPP
1
, 2” NPT
2
Fixed Installation : 2” BSPP
1
, 2” NPT
2
, Flange adapter
according to specification below

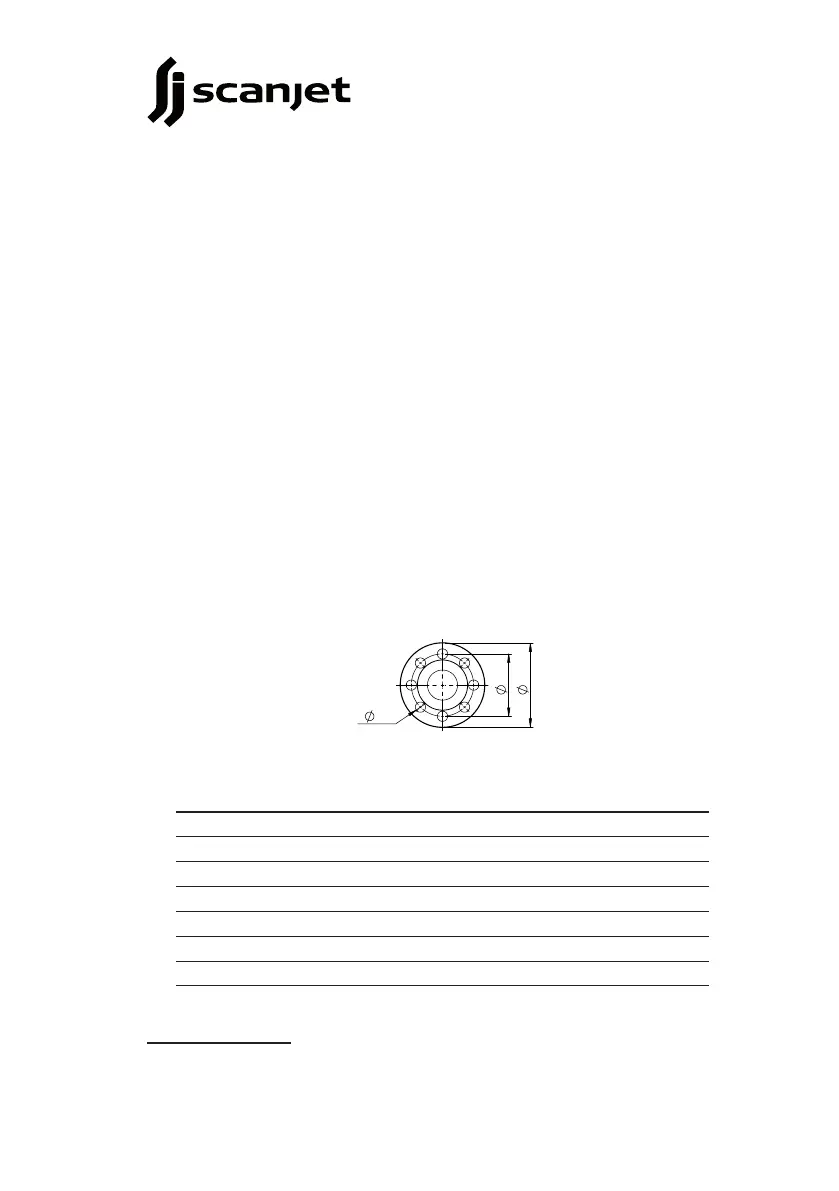

Adapter
Flange type Adapter Part No. ØA ØB ØC
PN16 DN40 40081-01 Ø150 Ø110 Ø18x4
PN16 DN50 40081-02 Ø165 Ø125 Ø18x4
JIS 10K 50 40081-06 Ø155 Ø120 Ø19x4
JIS 16K 50 40081-07 Ø155 Ø120 Ø19x8
JIS 10K 65 40081-08 Ø175 Ø140 Ø19x4
JIS 16K 65 40081-09 Ø175 Ø140 Ø19x8
ANSI 2” 150lb 40081-21 Ø152.4 Ø120.6 Ø19x4
1 British Standard Pipe Thread Parallel
2 National Pipe Thread Tapered
C
B
A
Designer
Date
Date
Drawer
Surface treatment
Weight
Note
Dimension
Material
General Tolerances
Tolerance ISO 2768-m
Gen. surface
N9
This document is our property and shall not without our
permission in writing be altered, copied, used for manu-
facturing or communicated to any person or company.
Drawing no. / Ritningsnr.
Format
Anslutningsadapter
A4
Scale
40081-xx
1:5
Adapter device
Denna handling är vår egendom och får ej utan vårt
skriftliga medgivande ändras, kopieras, användas för
tillverkning eller delges annan person eller firma.
SS-ISO 2768-m for machined parts
(30)-120=
0.3
0.5-3=
0.1 (120)-315=
0.5
(3)-30=
0.2 315)-1000=
0.8
P01
Törnedalsgatan 1, 275 21 Sjöbo
SWEDEN
JC
Revision
06-11-16
E
No.
Revision note
Date
Sign.
Qty.
Ins.
gram
Glasblästras
