Installation instructions 4 - 7
Doc.nr : Rc400-Manuale_v20_e.doc

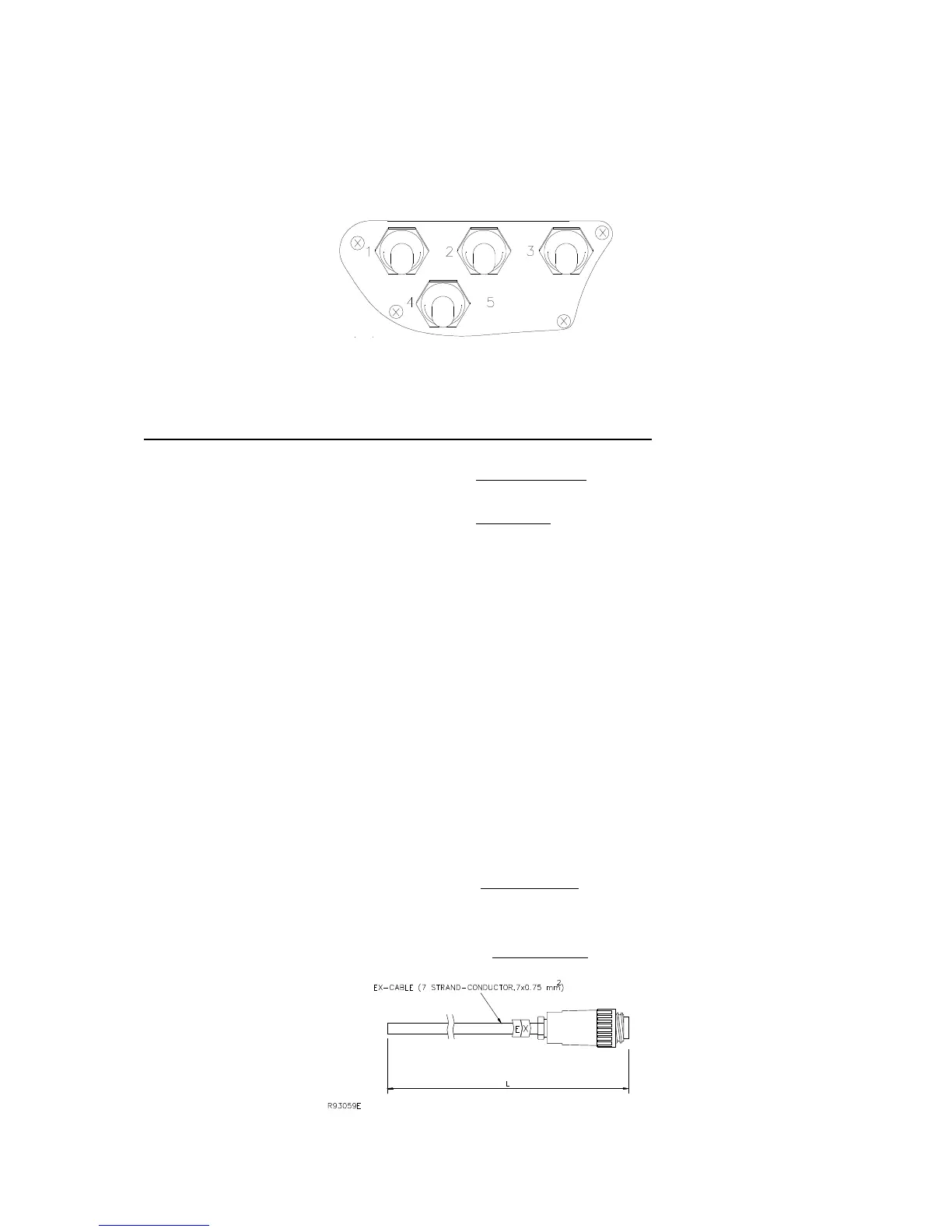

Connection schematic for ON/OFF functions.
Switch EX cable No. : Function / description :
1 ONNo: 1Continuous full working throttle.
1 CentreNo: -Idle.
1 OFFNo: 1Automatic connection of full throttle.
1
2 ONNo: 2Start vehicle motor.
2
2 OFFNo: 3Stop vehicle motor.
3 ONNo: 4RPM + or HPLS ON
3 OFFNo: 5RPM - or HPLS OFF
ON/SIGNALNo: 7Signal / Horn / or Overload reset.
+ 24 VDC ( 1.2 Amp ) is provided on each respective line on the EX cable after the respective
ON/OFF function is activated from the control unit.
Note. An auxiliary relay is not normally required for ON/OFF functions except for starting of the vehicle motor.
See recommended connection schematic on the next page. Page 4-8.
1. Automatic throttle control, i.e. throttle opening occurs at the same time that a manoeuvre is started with one
of the levers. The throttle opening has a shut-down delay, i.e. it stays up for ca 6 seconds after the latest lever
movement.
2. Start of motor, see recommended connection schematic on the next page.
