General s
y
stem description 2 - 2
Doc.nr : Rc400-Manuale_v20_e.doc

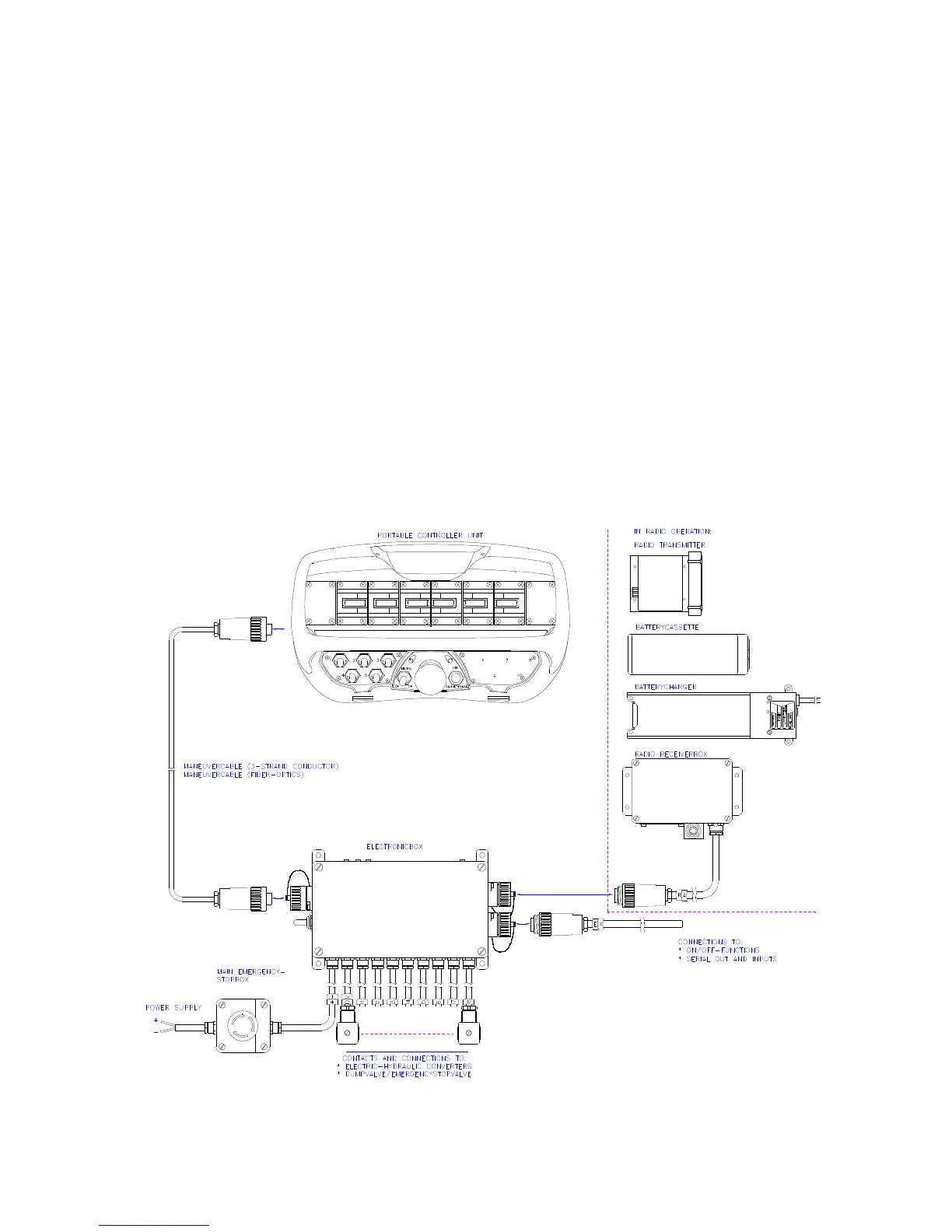

General schematic of the RC 400 :
The Re
m
ote Control Syste
m
is co
m
prised of the following co
m
ponents:
·
Control unit ( for cable or radio control ).
·
Electronicbox.
·
Crane e
m
ergency stop box.
·
Expansion cable ( EX ).
- Cable operation
: Control cable
(
3-core
).
- Radio operation
: Radio transmitter, Qty. 2. battery packs, battery charger and radio
receiver box.
4
6
