Installation instructions 4 - 4
Doc.nr : 6611-018

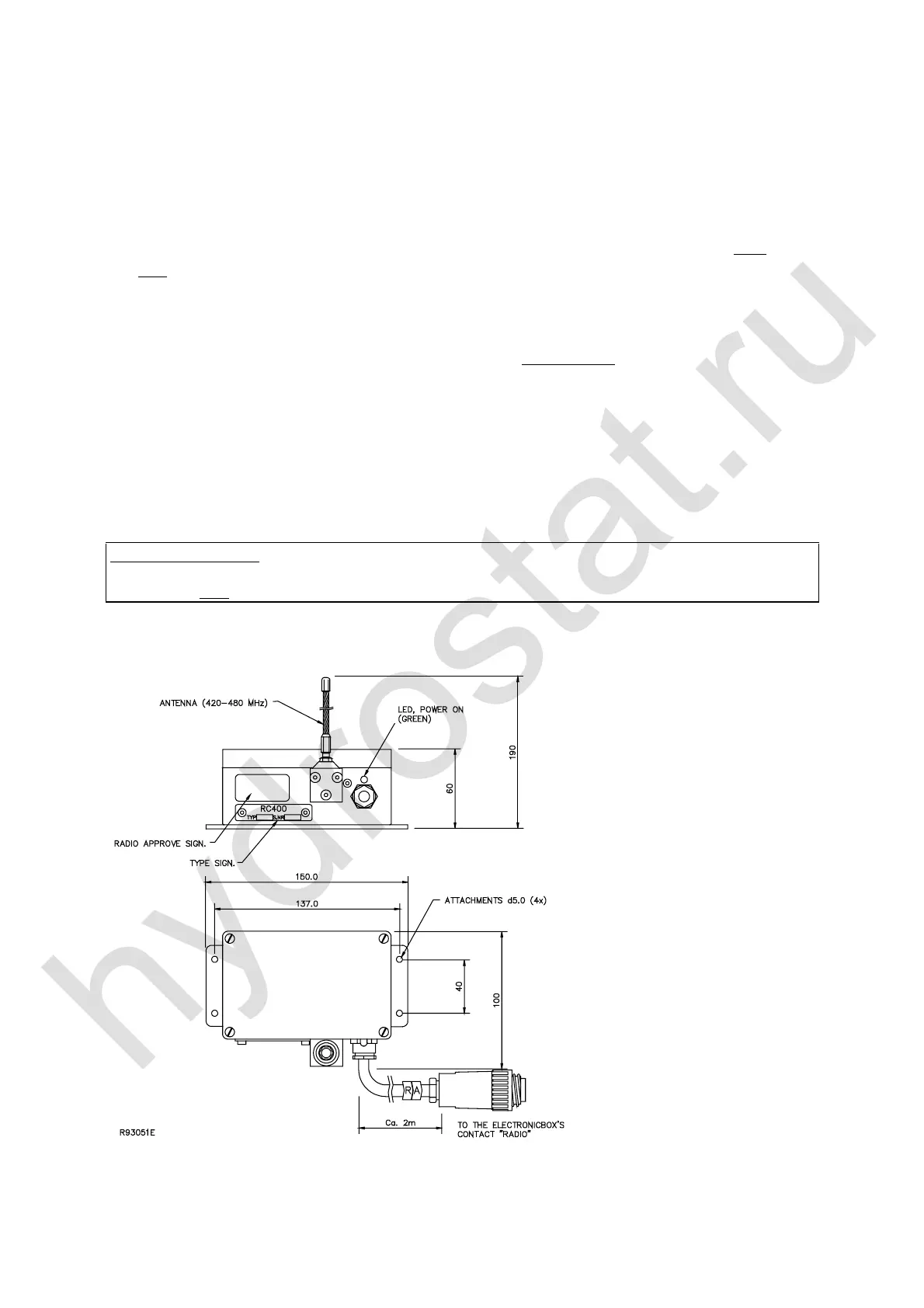

0RXQWLQJRIWKHUDGLRUHFHLYHUER[
• The connection cable ( PDUNHG5$ ) for the radio receiver box is approximately 2 metres
long which is the maximum mounting distance from the electronicbox.
• For optimum radio communications the radio receiver box should be located as high and
free
as possible. An antenna screened and surrounded by fixed objects will considerably
impair radio reception.
• The antenna pin must not touch any metal object. The radio receiver box should be
mounted horizontally with the antenna pin sticking vertically up
. ( 6HHLQVWUXFWLRQV
• The radio receiver box should be mounted in a vibration free location and not be
subjected to strong sources of heat ( for example exhaust pipes etc. ).
Control units and electronicboxes with the same serial number have been programmed with a unique "identity
code" when delivered, i.e. they do not need to have their identity codes programmed. See section "Identity code
programming" if this is not the case.
127(0DULQHFUDQHV
The casing of the radio receiver box is grounded and connected to supply voltage
earth. In those special cases where a galvanically isolated earth is required ( for ex. marine use ), the radio
receiver’s box must be mounted on rubber stand-offs/bushes to obtain a galvanically isolated earth.
