Scarab M6 - Sweeper Control Panel Symbols

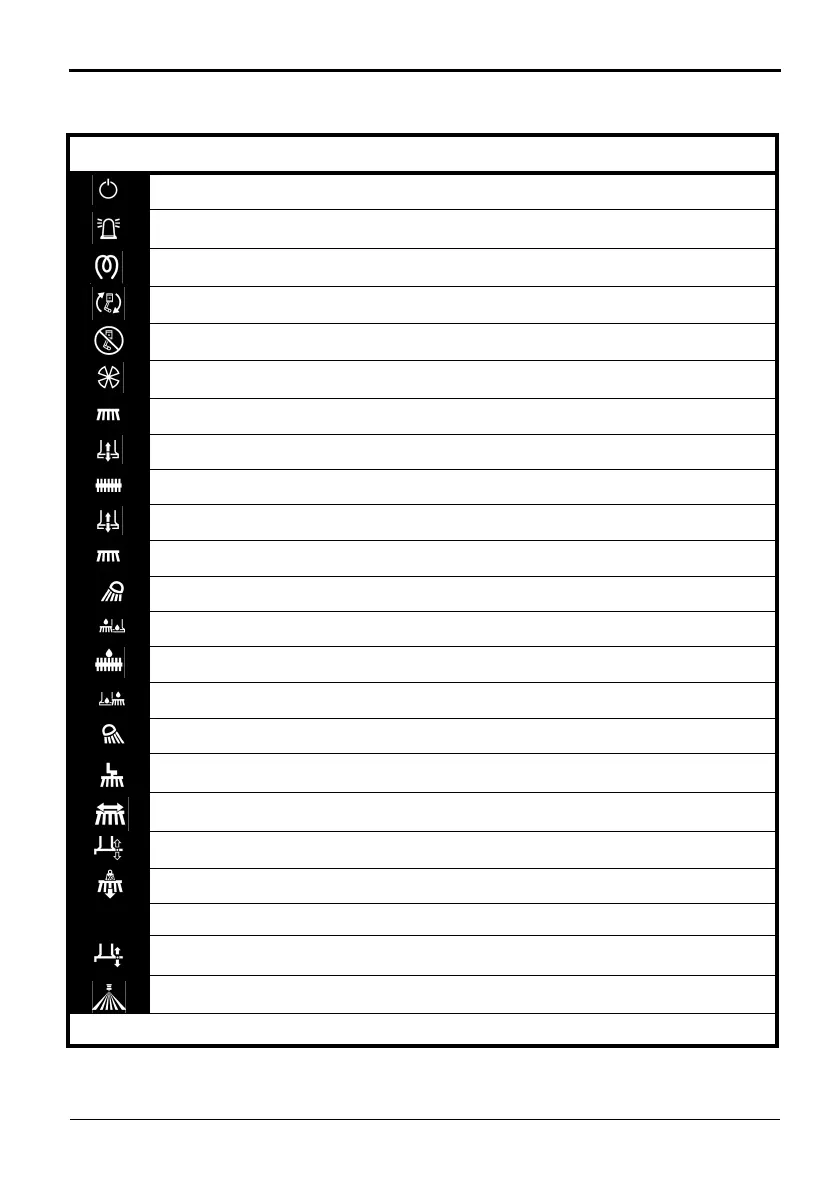

SWITCH OPERATING SYMBOLS
MAIN SWEEPING PANEL SWITCHES
(
FROM LEFT TO RIGHT & TOP TO BOTTOM)
PANEL STANDBY MODE / SWEEP MODE
WARNING BEACONS / LIGHT BAR - ON/OFF
HEATERS - AUXILIARY ENGINE
AUXILIARY ENGINE START
AUXILIARY ENGINE STOP
SUCTION FAN - ON/OFF
LEFT HAND SIDE BRUSH - ON/OFF
LEFT HAND SUCTION NOZZLE - RAISE/LOWER
WIDE SWEEP BRUSH - ON/OFF
RIGHT HAND SUCTION NOZZLE - RAISE/LOWER
RIGHT HAND SIDE BRUSH - ON/OFF
LEFT HAND WORK LIGHTS
LEFT HAND SIDE BRUSH AND SUCTION NOZZLE WATER SPRAYS - ON/OFF
WIDE SWEEP BRUSH WATER SPRAY - ON/OFF
RIGHT HAND SIDE BRUSH AND SUCTION NOZZLE WATER SPRAYS - ON/OFF
RIGHT HAND WORK LIGHTS
SWEEP MASTER SWITCH
SIDE BRUSH SWING IN/OUT
SUCTION NOZZLE TILT (MOMENTARY)
SIDE BRUSH/WIDESWEEP PRESSURE - DOWN 
OPTION
SUCTION NOZZLE TILT (LOCKING)
HIGH PRESSURE WATER PUMP 
 = OPTIONAL EQUIPMENT
