13
PLATE-LESS WALL MOUNTING
The ScentWave 1005 is equipped to allow mounting
to a flat surface using the supplied hardware.
MOUNTING THE SCENTWAVE:
1. Using the template on the back of this
manual (page 16), mark the location on the
wall where the ScentWave will be mounted.
• Choose either the small or large
openings to use for mounting.
• For drywall, drill a 1/4” (7.5mm) pilot
hole and use a screwdriver to drive the
provided white plastic anchors into the
wall. (Fig.21)
• Drive the screws into the anchors
leaving 5/16” (7.9mm) between the
top of the screw and the wall.
2. Attach the ScentWave to the wall:
• Line up the slots on the ScentWave
system with the screws in the wall and
slide into place. (Fig.22)
• Remove the ScentWave and adjust the
wall screws as necessary for a tight fit.
5/16” (7.9mm)

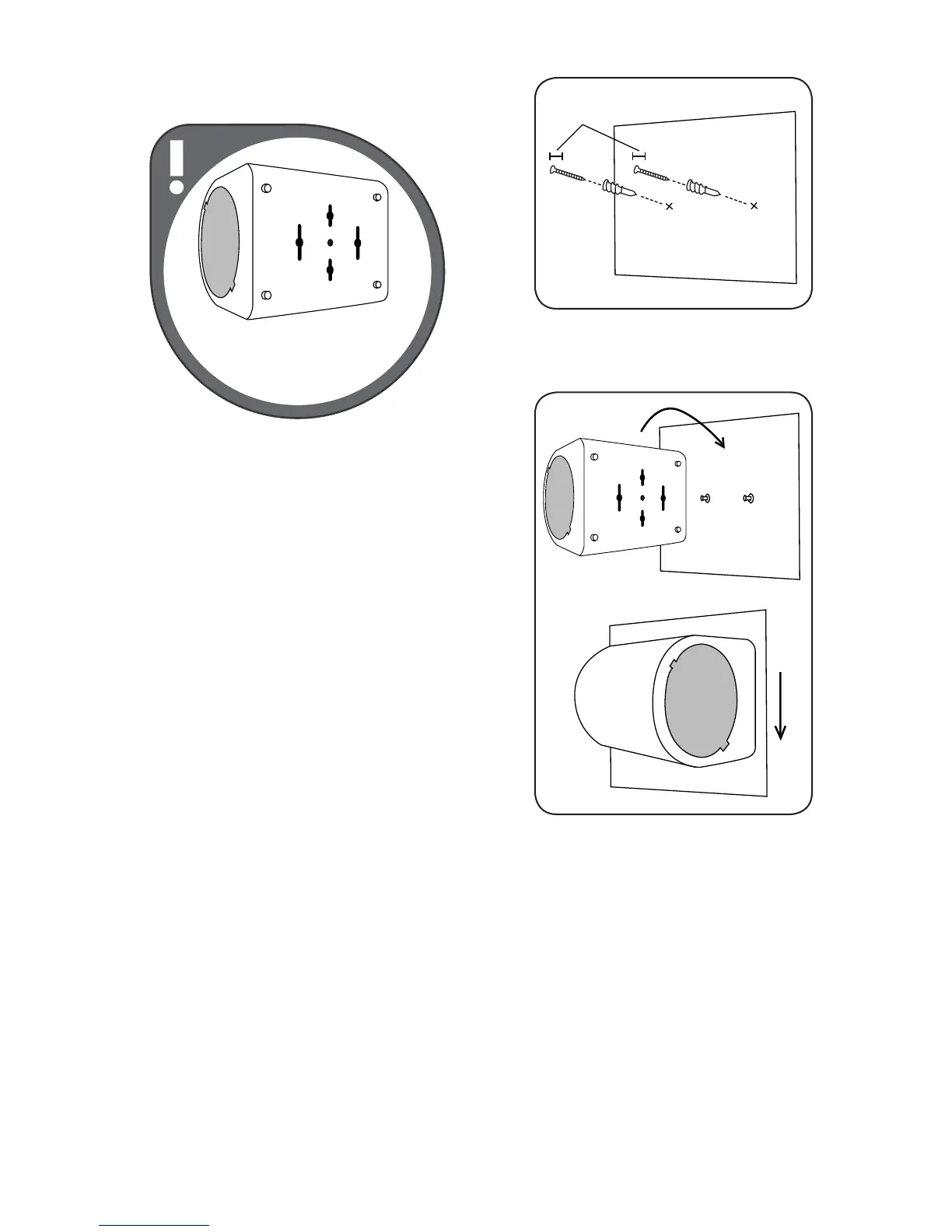

Fig.21: This example is using the large openings on the
bottom of the ScentWave for mounting to a wall.
Fig.22: Adjust the mounting screws as needed to ensure
the ScentWave is securely in place.
NOTE: Ensure the ScentWave intended
to be mounted has the hole pattern on
the bottom of the system.
