ScentAir ScentWave - Plate-Less Wall Mounting Template (SWD1005)

PRD-100 71001001-Rev.B
For further assistance please contact ScentAir:
US & Canada: +1 704 504 2320
UK: +44 1628 601 650
France: +33 5 62 57 63 20
Hong Kong: +852 3563 5566
www.scentair.com/scentwave
X X
X
X
Small Opening
Small Opening
Large Opening
Large Opening
3.13” (79.5mm)
2.30”
(58.4mm)

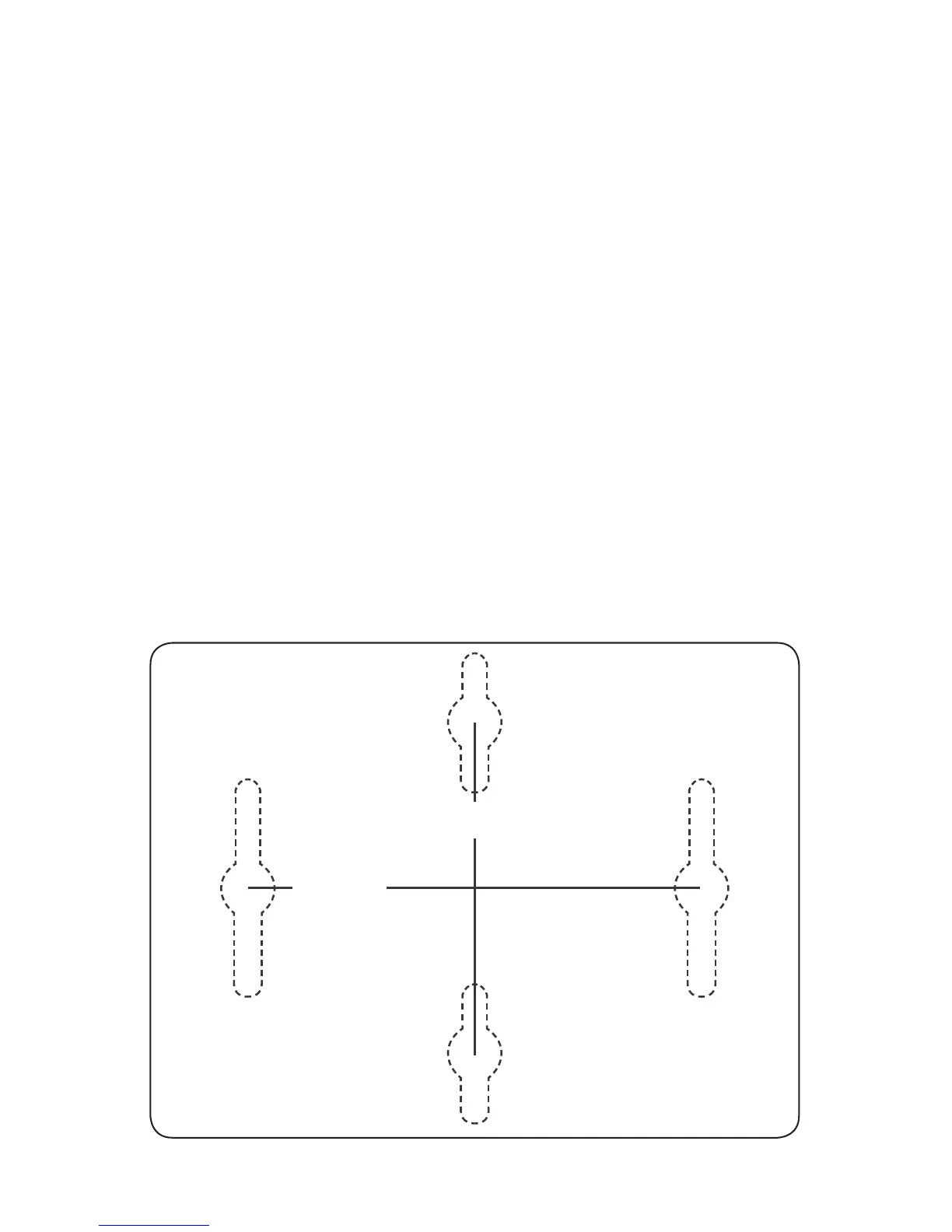

Fig.29: Wall Mounting template to be used for the ScentWave 1005 system.
