Schartec P190 Control Box - Control Box Diagram; PC190 Control Box Overview

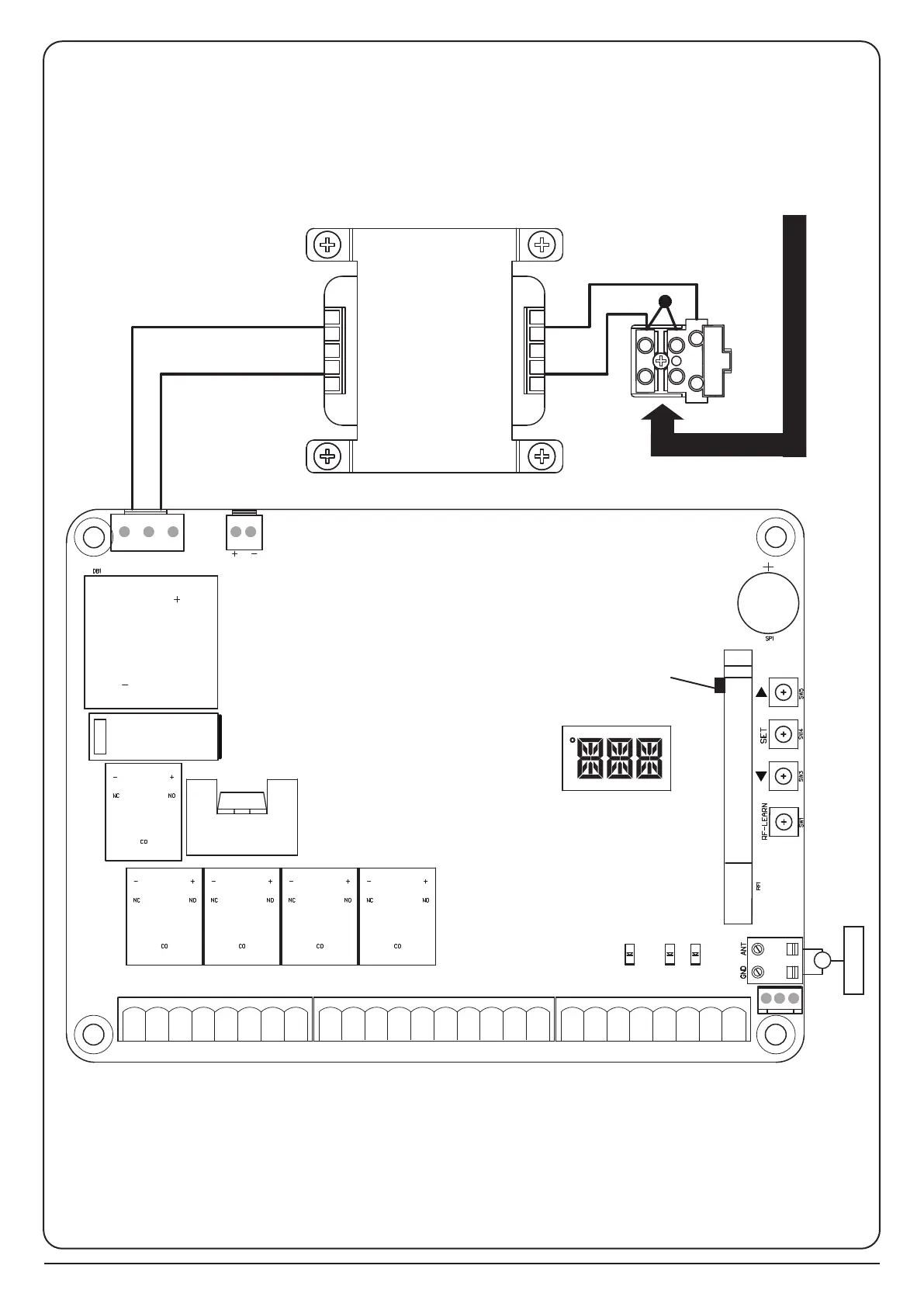

1. PC190 Control Box Diagram
Transformer
Antenna
blue LED – RF
Learning LED Display
LED2 Push-Button / Key-Switch
LED3 Photocell 1
LED4 Photocell 2
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18
19 20 21 22 23 24 25 26
UP
SET
DOWN
RF-LEARN
11
Lit+ Lit- Lat+ Lat- M1+ M1- M2+ M2-
Power supply 230 V AC
brown = L1 (Positive)
blue = N (Negative)
Please use an 18 AWG * 2
cable for this.
5V S1 S2 GND Lmt1 Lmt2 GND Lmt3 Lmt4 GND DKey SKey GND Ph1 PhVccGND Ph2 PhVcc
LED2 LED3 LED4
23
