Scheppach CSP41 Translation Of Original Instruction Manual

 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58
54
|
GB


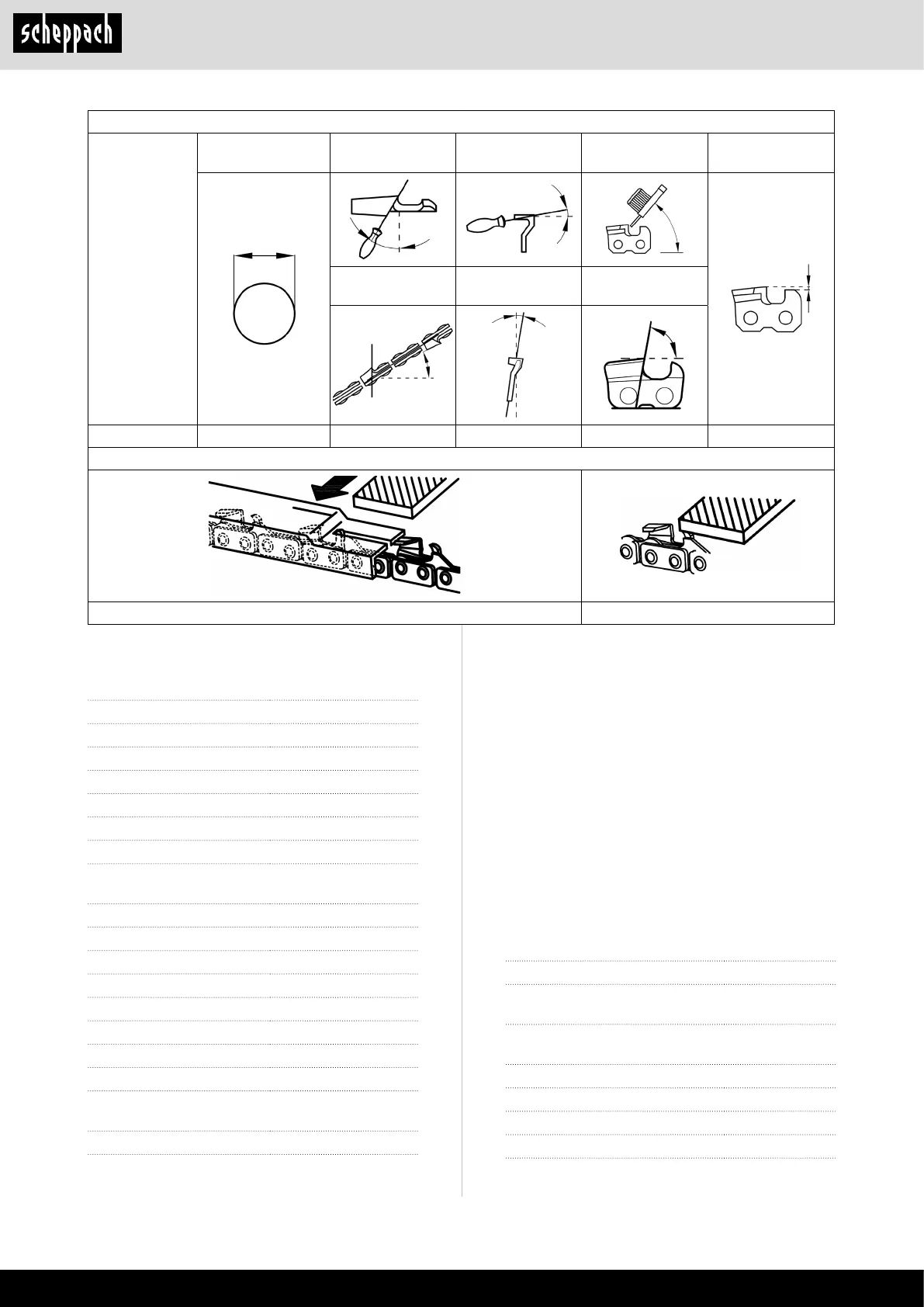

Chainsaw type
File diameter Upper angle lower angle
Upper tilt angle
(55 °)
Standard depth
Chucking rotation
angle
Chucking
inclination angle
side angle
91P ca. 4.0 mm 30° 0° 80° 0.64 mm
depth stop le
10. Technical data
Cubic capacity 41 cm³
Maximum Motor Capacity 1.5 kW
Cutting Length 37.5 cm
Bar Length 16” (40 cm)
Chain Division (3/8”), 9.525 mm
Chain Thickness (0.05”), 1.27 mm
Idle Speed 3100 ± 300 rpm
Chain Speed Max 21 m/s
Maximum Speed with
Cutting Attachment
11000 rpm
Fuel Tank Capacity 260 cm³
Engine Capacity 210 cm³
 Ja
Sprocket teeth 6 teeth x 9.525 mm
Chain Brake yes
Clutch yes
Automatic chain oiling yes
Chain with low kickback yes
Weight without bar and
chain
4.5 kg
Net weight (dry) 5.7 kg
Technical changes reserved!
Wear hearing protection.
The e󰀨ects of noise can cause hearing damage.
Keep the noise emissions and vibrations to a
minimum.
• Only use appliances which are in perfect working
order.
• Service and clean the appliance regularly.
• Adapt your working style to suit the appliance.
• Do not overload the appliance.
• Have the appliance serviced whenever necessary.
• Switch the appliance o󰀨 when it is not in use.
• Wear protective gloves.
Sound and vibration
Sound Pressure Level L
pA
99 dB(A)
Uncertainty K
pA
3 dB(A)
Guaranteed sound power
level L
wA
114 dB(A)
Measured sound power level
L
wA
109.6 dB(A)
Uncertainty K
wA
3 dB(A)
Vibration Front Handle a
hv
max. 6.5 m/s²
Vibration Rear Handle a
hv
max. 6.0 m/s²
Uncertainty K
hv
1.5 m/s²

Scheppach CSP41 Specifications

General

Idle speed	- RPM
Motor type	2-stroke motor
Blade length	400 mm
Product color	Black, Red, White
Cutting length	375 mm
Automatic oiling	Yes
Engine displacement	41 cm³
Engine power	1.9 hp
Power source	Gasoline

Weight and Dimensions

Width	260 mm
Height	280 mm
Length	430 mm
Weight	6900 g
