Push-stick

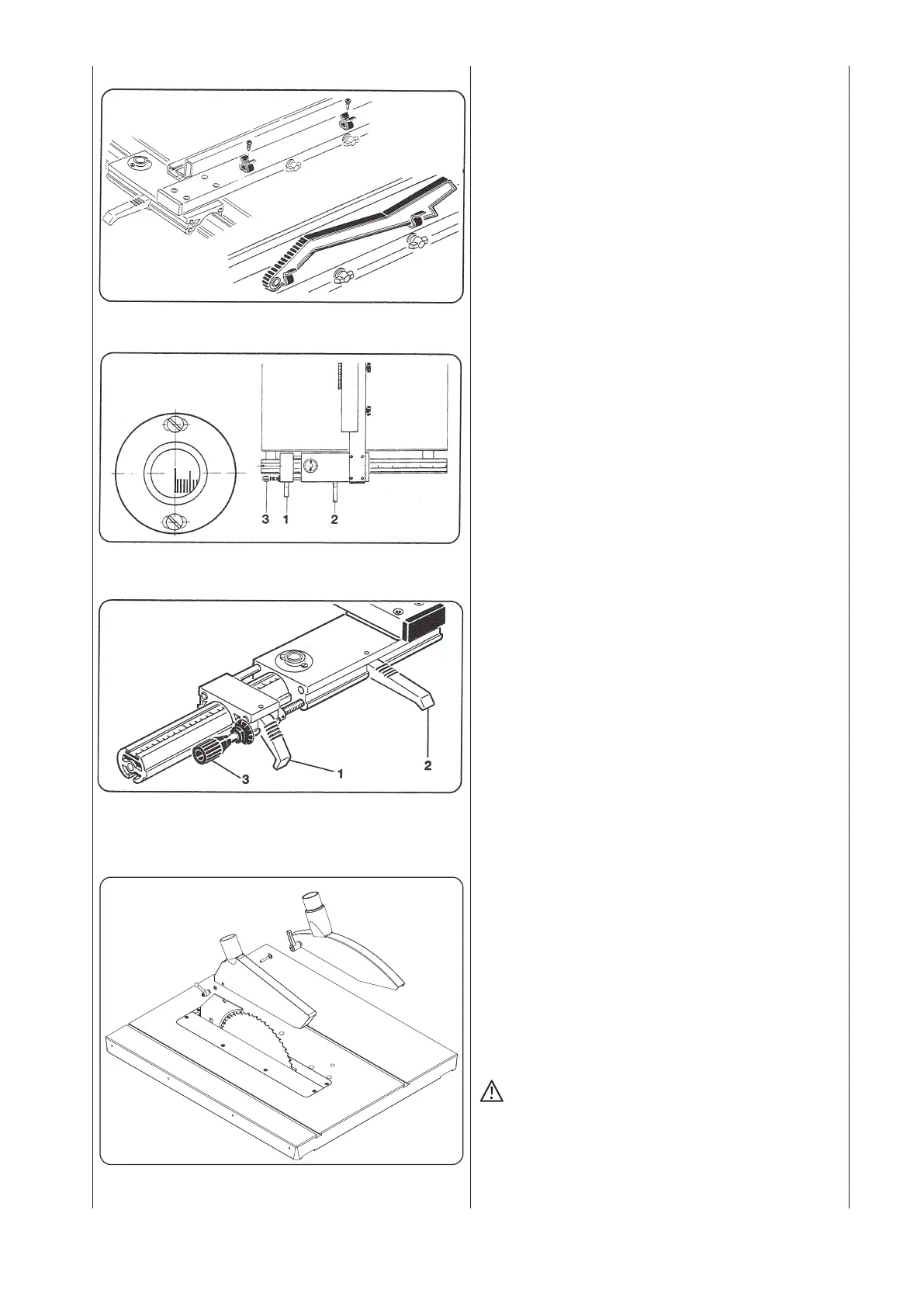

Fig. "H"
Secure the 2 holding brackets on the long stop.
each with
1 oval head screw B 4,2 x 9,5
Insert the push-stick into the holding brackets.
Whencuttingnarrow workpieceslengthwise(i.e.smallerthan
120mm)itisessentialtousethepushstick).
Parallel fence
Fig. "I"
Adjusting the reading microscope
Adjustthefenceagainstthesawbladeandclampthe
eccentric levers (1 + 2).Releasethefasteningscrewsofthe
reading magnifier; position the hairline precisely over the Zero
line of the scale. Retighten the fastening screwa.
Fig. "J"
Fine-adjustmen
Fine adjustment is with the adjusting spindle (3) while the
eccentric lever (1)islocked,andtheeccentriclever(2) is
open.
Suction hood
Fig."K"
ScrewthesaucerheadscrewM6X40withwasherandlock
leverintothesuctionhood.Clampthesuctionhoodsecurely
on the riving knife.
Suction hood„1“withoutscorer
Suction hood „2“withscorer
IMPORTANT!
The suction hood must be lowered onto the workpiece
for each new job.
Fig."H"
Fig."I"
Fig."J"
1
2
Fig."K"
