SCHIEBEL AB3 User Manual

5 Commisioning
Operating Instructions for Actuators Type AB with Control Unit
OM-ENGLISH-ABCSC.V1.2-16xx-V2.02-2023.04.27

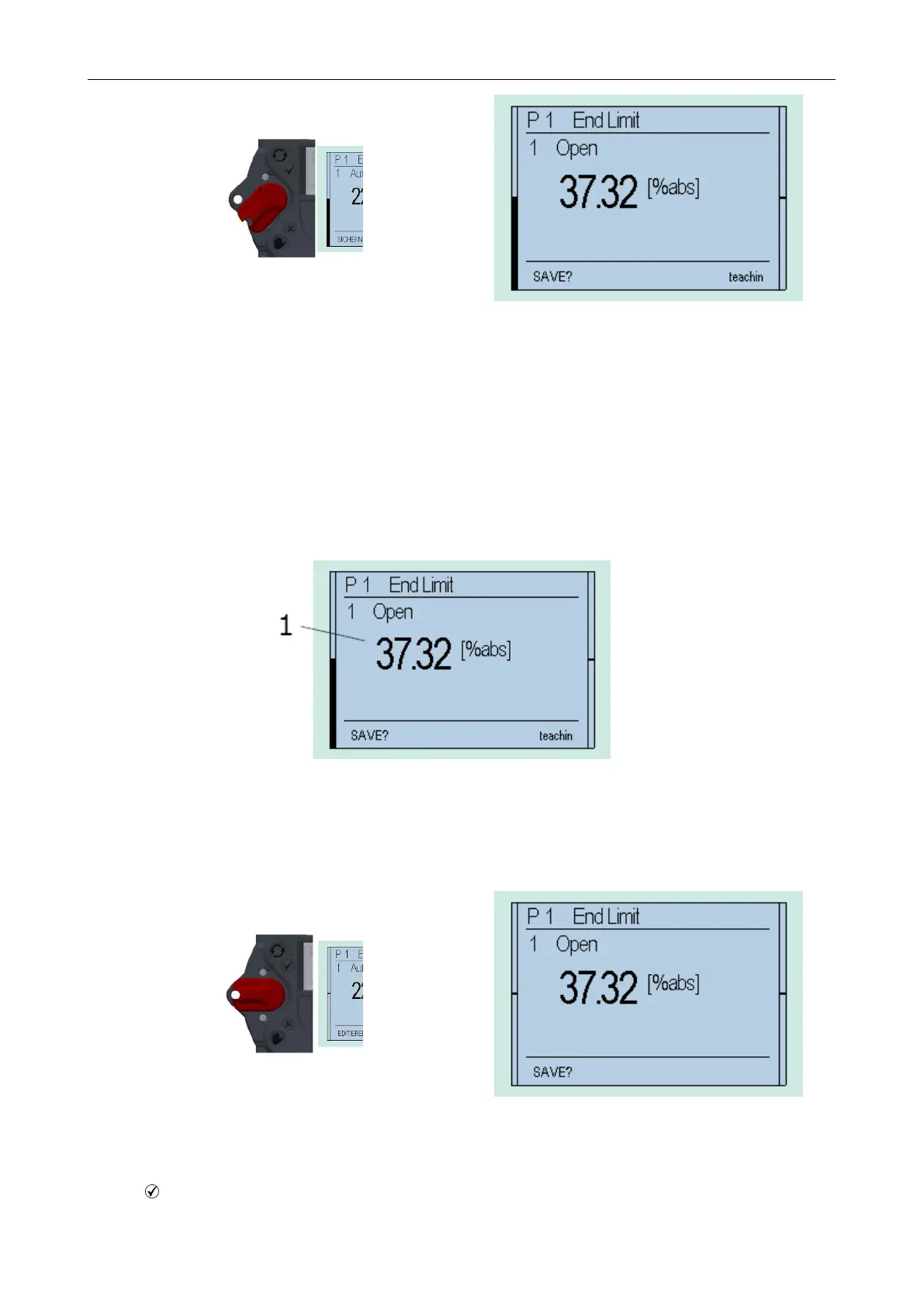

Figure 32
Figure 33
Manually move the actuator with the handwheel (see section 2.1, page 6 or 2.6, page 8) or by motor via the
operating switch (black button) to the end position OPEN of the valve.
• Absolute value: Absolute value of the position feedback
• Relative value: the value to the other end postion
Figure 34: 1. . . Absolute value
When the desired end position OPEN of the valve is reached, move the selector switch back to the middle
position. Thus, the line "TEACHIN" disappears.
Figure 35
Figure 36
In order to confirm the end position (save), slightly flip up the selector switch and let it snap back to its neutral
position
20
