Schiller Grounds Care, Inc. P/N 802-0006
PREPARATION
UNPACKING
Key Qty. Description
T1 1 Engine Assembly (includes Fender Guard &
Worm Gear Transmission)
T2 1 Tine Assembly (includes Left & Right Inner Tine
Assembly, Left & Right Outer Tine Assembly,
2-Retaining Pins)
T3 1 Right Upper Handle Assembly with Throttle Cable
Attached to Engine
T4 1 Upper Handle, Left
T5 1 Upper Handle, Right
T6 1 Lower Handle, Left
T7 1 Front Carry Handle, Right
T8 1 Front Carry Handle, Left
T9 1 Foam Grip
Key Qty. Description
T10 1 Rear Carry Handle w/ Grip
T11 2 Carriage Bolt (2.25”)
T12 8 Hex 2-Way Lock Nut
T13 2 Hex Bolt (3.25”)
T14 4 Hex Head Cap Screw (1.25”)
T15 2 Throttle Clip
T16 2 Knob
T17 2 Kickstand: Flange Bolt (1.25”)
T18 1 Kickstand: Bracket
T19 1 Kickstand
T20 1 Handle Brace
WHAT YOU WILL NEED TO ASSEMBLE THE TILLER
Prior to removing the contents and assembling, it is important to:
• Have a clean work area.
• Make sure all necessary tools are handy.
• Ratchet wrench with an extension to reach deep-seated bolts
• 7/16” wrench
• 7/16” socket
• 3/8” socket or crescent wrench

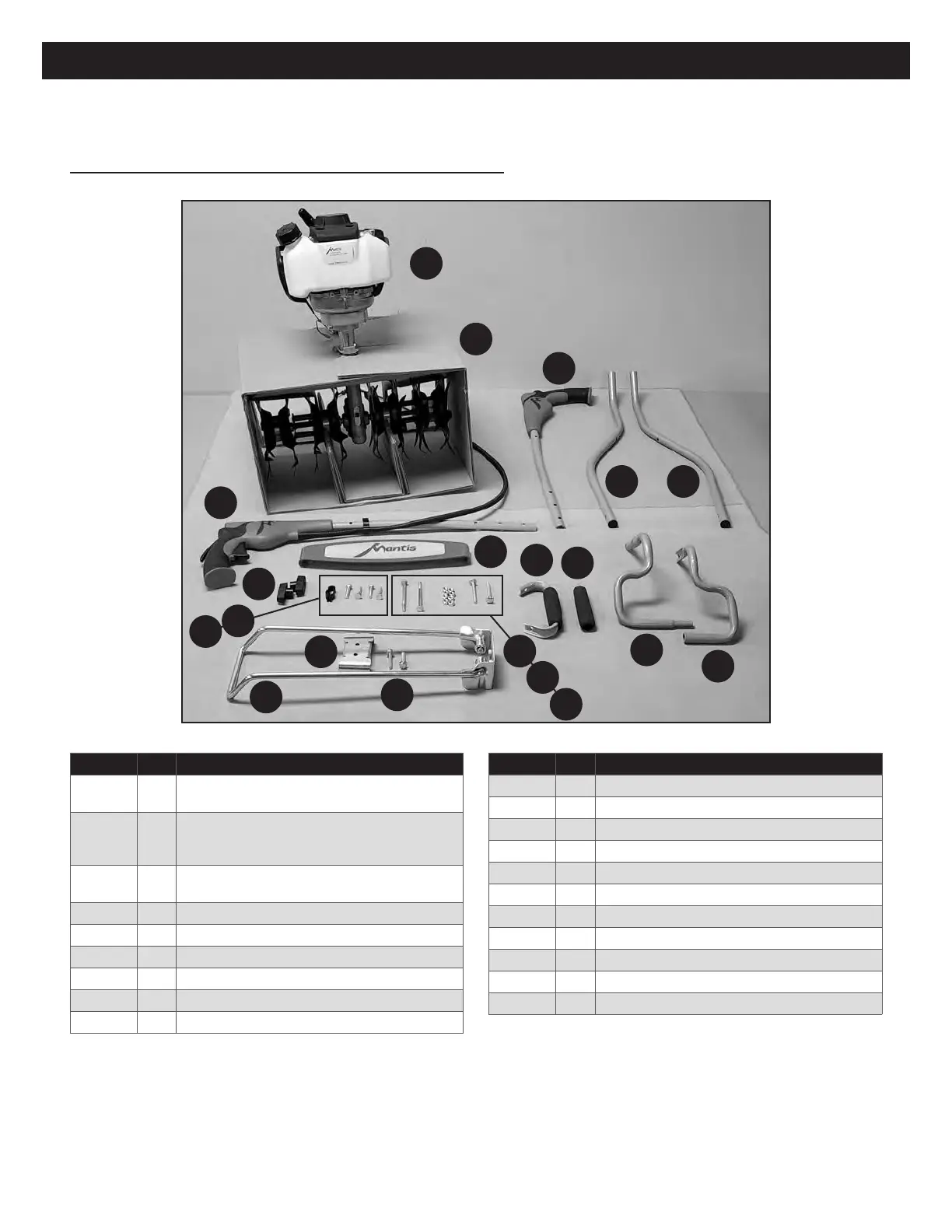

T1
T2
T3
T4
T5
T9
T8
T18
T17
T16
T19
T10
T20
T7
T6
T14
T15
T11
T12
T13
