Schiller Grounds Care, Inc. P/N 802-0006
APPENDIX B RELATED DOCUMENTATION

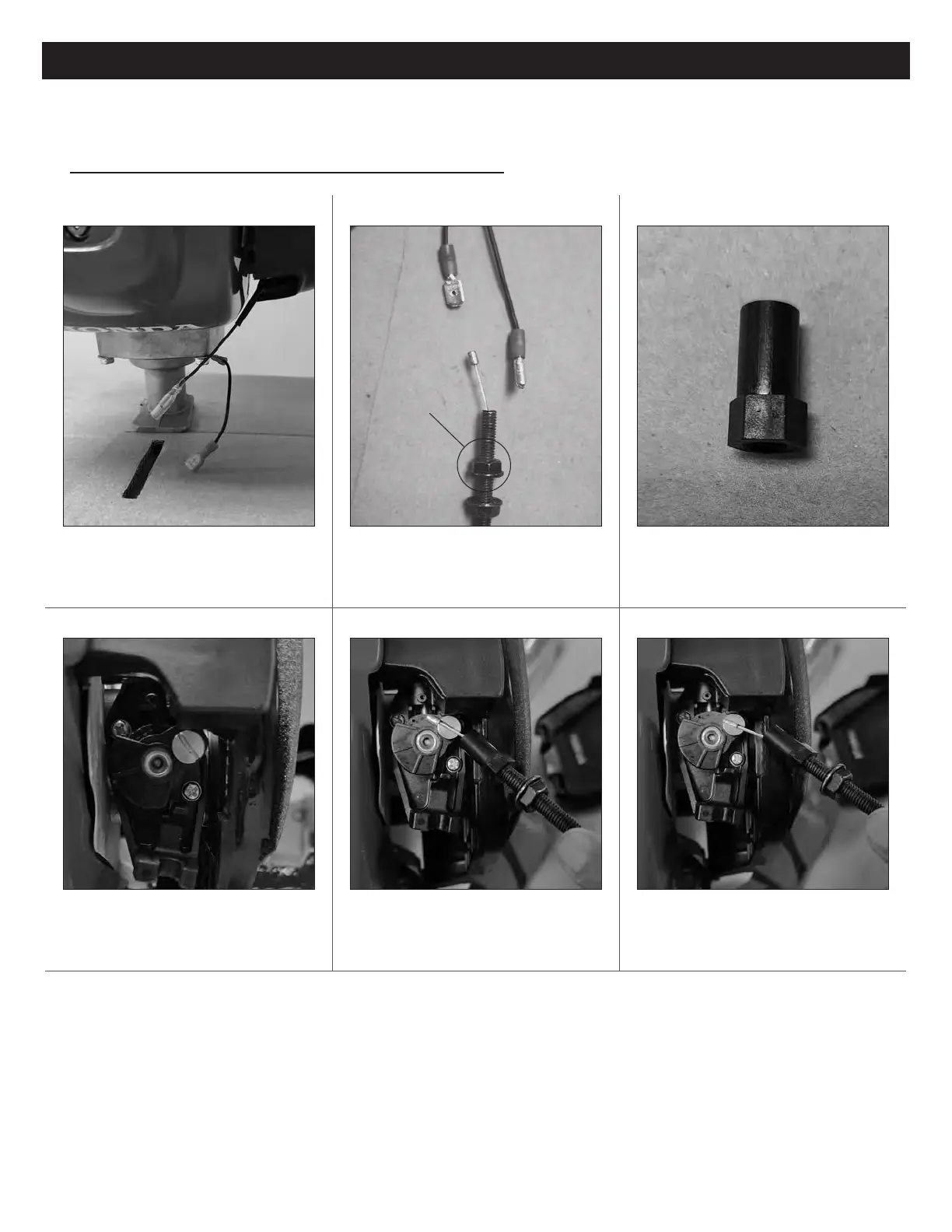

ATTACHING THROTTLE CABLE
1 2 3
Throttle connections on XP tiller engine Wire terminations on the right handle throttle
cable. Top nut on the throttle cable should be
replaced with the throttle stop
Throttle Stop oriented in the correct position
for installation
5 6 7
Engine throttle assembly with air cleaner cover
removed
After the throttle stop has been installed,
position the cable in the silver throttle swivel as
shown above
Pull the cable so the tip is secure within the
swivel slot
TOP NUT
