Schiller Mantis 7566A - Lower Handle Assembly

11
Schiller Grounds Care, Inc. P/N 802-0006

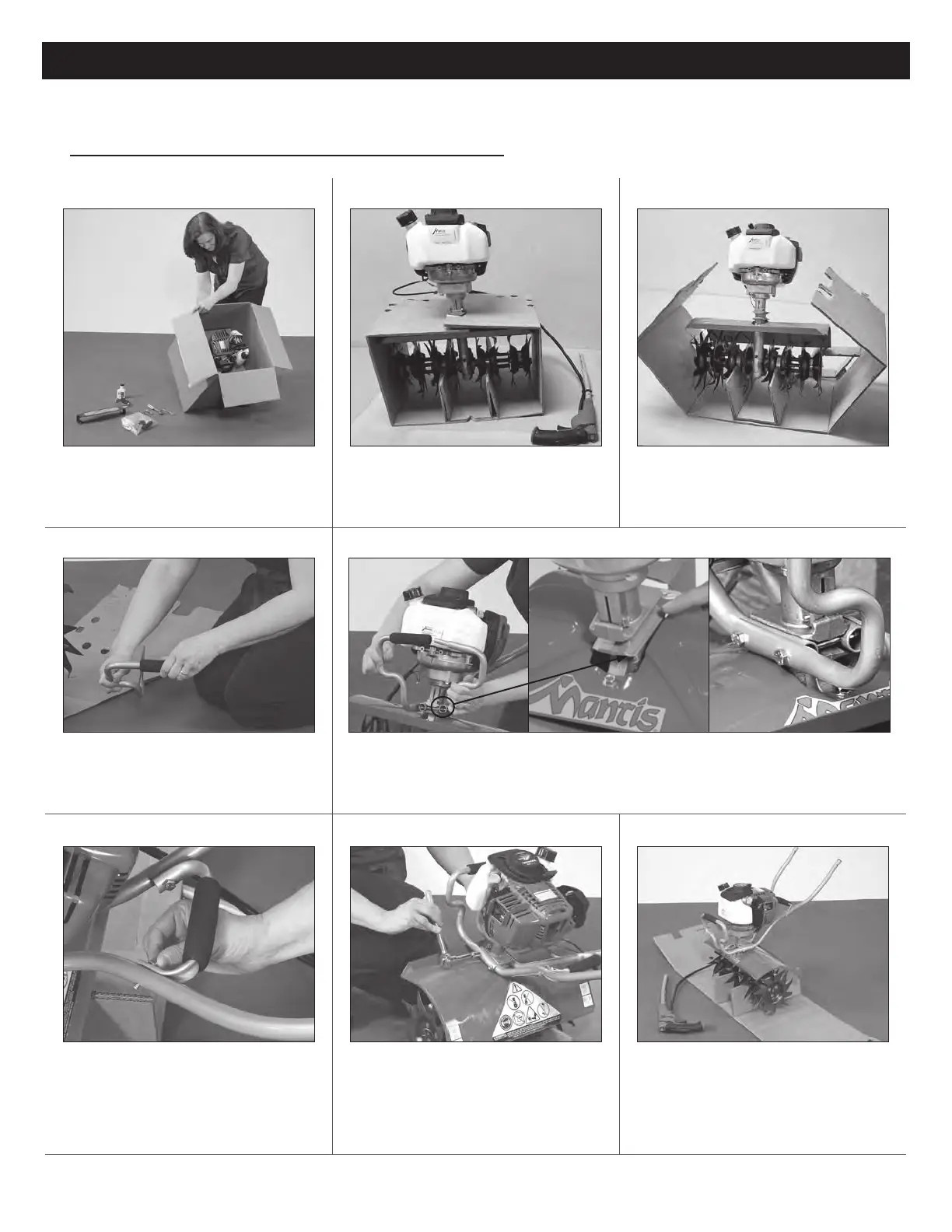

PREPARATION
1 2 3
Open the box and remove the inserts and
loose parts found on top of the tiller cradle
IMPORTANT: Keep the engine within the
cardboard cradle during Lower Handle
Assembly
Open the cradle by pulling the sides apart
5 6
RECESSED
CHANNELS
Slide the foam grip onto the front right carry
handle handle
Slide the front left carry handle into the foam grip on the front right carry handle. Position this
assembly onto the outside of the lower left and right handles and slide into the recessed channels.
Secure with the two 3.25” bolts and lock nuts. Fasten nger tight.
7 8 9
Secure the rear carry handle between the
lower handles with two 1.125” bolts - keep with
hex head on inside of the rear carry handle.
Fasten with two lock nuts and tighten with
wrench and socket
Tighten all handle bolts with the wrench and
socket.
Completed Lower Handle Assembly for the
Mantis XP Tiller
LOWER HANDLE ASSEMBLY
