13
Schiller Grounds Care, Inc. P/N 802-0006

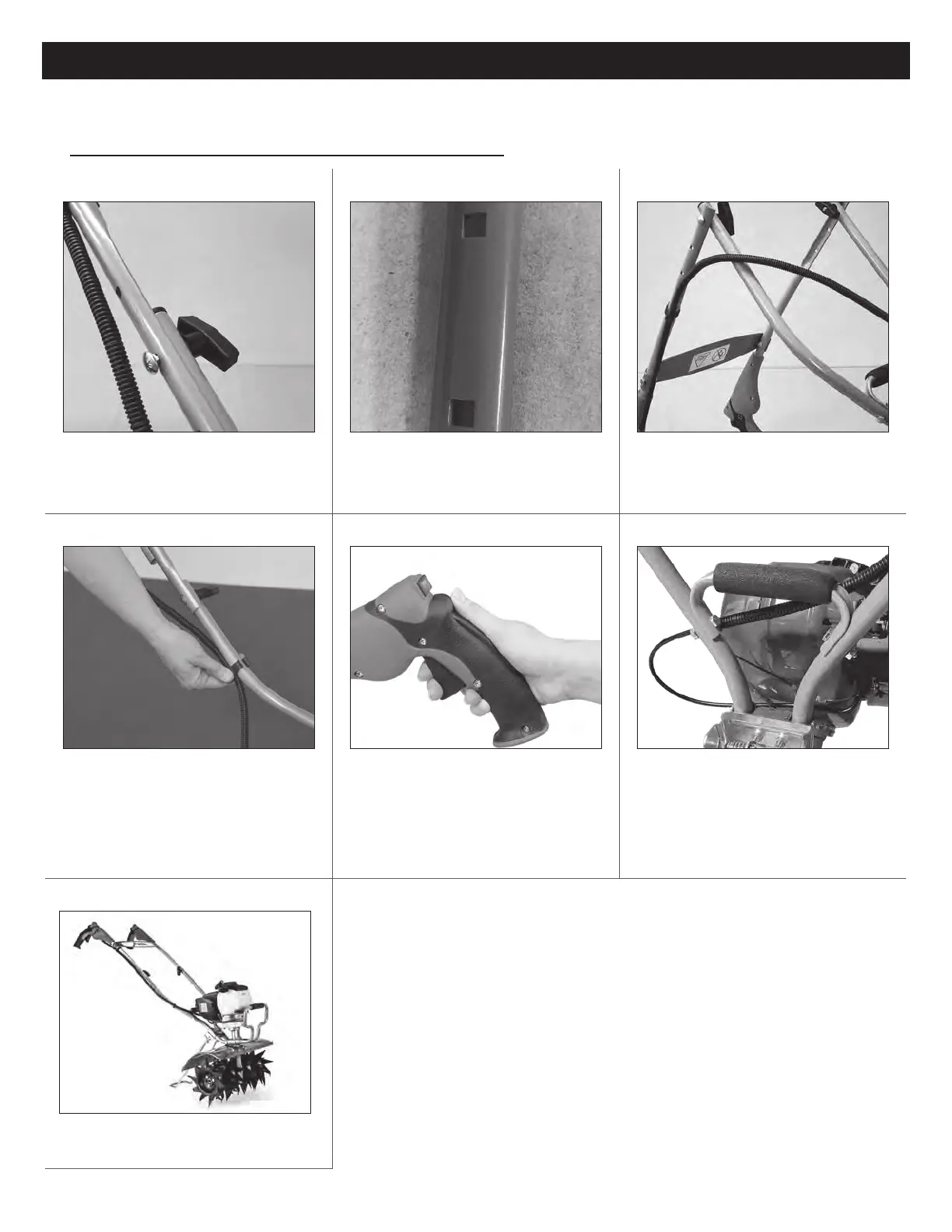

PREPARATION
UPPER HANDLE ASSEMBLY (CONT)
4 5 6
Select the desired height and attach each
upper handle to the lower handle using the
supplied bolts and plastic knobs.
NOTE: be sure the bolt head is seated
securely in the square hole.
Loosen and tighten the adjustable handle
knobs as necessary to fold or extend the
Mantis handles.
7 8 9
Secure the throttle cable clip, making sure the
cable is not twisted and there is proper throttle
movement.
NOTE: Prior to starting the engine, test the throttle
connection by depressing the lockout trigger, and
fully squeezing the throttle trigger. If you don’t
hear the throttle click on both the full squeeze and
the release you should follow the instructions for
Visual Check for Throttle Assembly
Position extra throttle cable length as shown
above
10
Fully-assembled Mantis XP Tiller.
