20
Schiller Grounds Care, Inc. P/N 802-0006

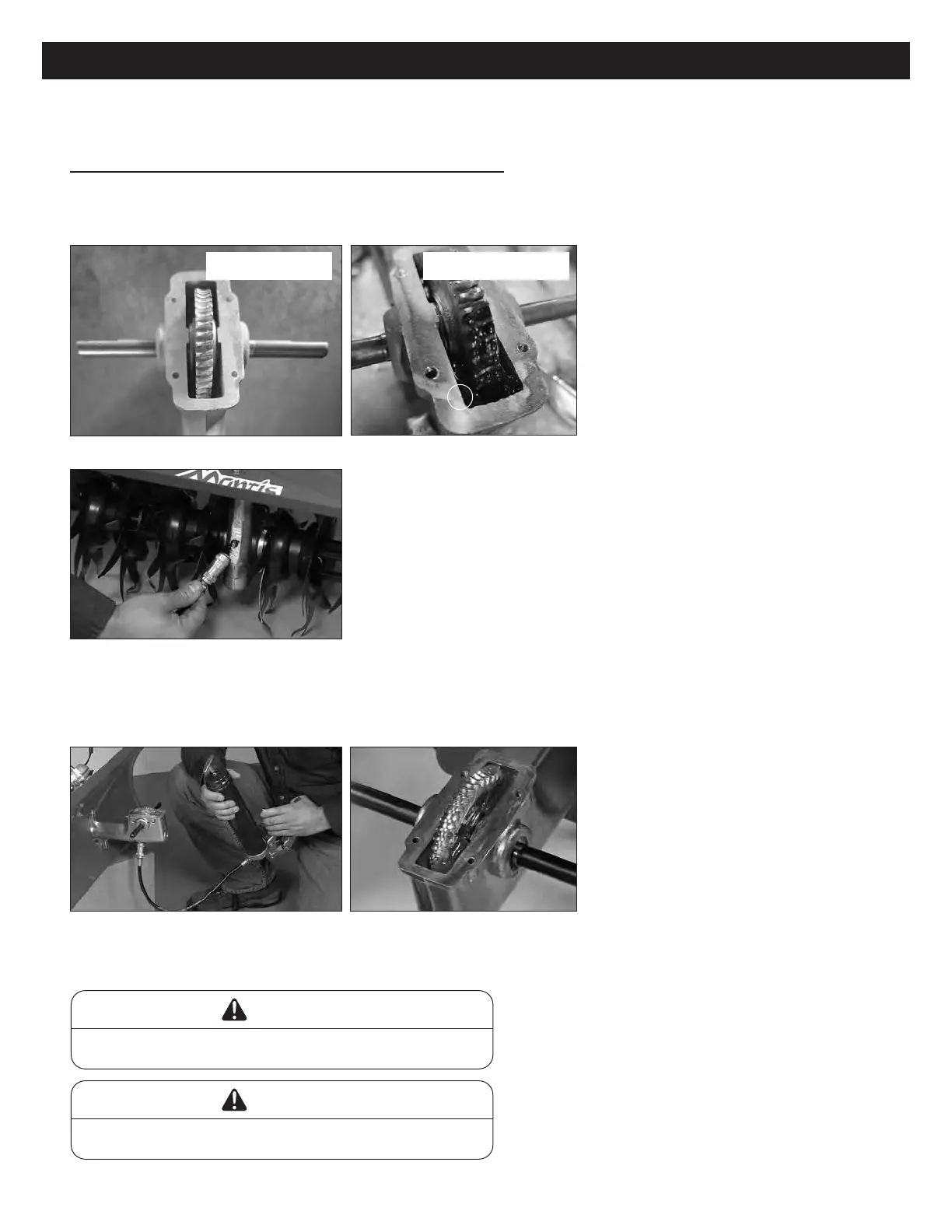

MAINTENANCE AND CLEANING
– Check the grease level inside the worm gear transmission housing.
– If grease level is below the edge of the gear housing, add Lithium #1 grease.
– The XP tiller has a grease tting located opposite the transmission cover.
– Remove the protective cap from the grease tting, attach the grease gun, and slowly add grease until the level is ush with the
edge of the transmission housing.
– Pay attention to the size of the grease gun. Different guns distribute different amounts of grease per pump. No more than 0.06 oz
(two pumps from a 14-ounce grease gun cartridge) should be added through the grease tting. Additional grease can be added
as needed through the opening left by removing the housing cover.
– Wipe off excess grease and replace the transmission gasket and housing cover.
– Return the grease tting protective cover.
– Replace tines.
WARNING
PREMATURE TRANSMISSION FAILURE CAN OCCUR IF
PROPER GREASE LEVEL IS NOT MAINTAINED
WARNING
DO NOT OVERFILL. SERIOUS DAMAGE CAN OCCUR.
MAINTENANCE (CONT)
NO GREASE WITH GREASE
EDGE OF
HOUSING
EDGE OF
HOUSING
APPROPRIATE GREASE LEVEL
APPROPRIATE GREASE LEVEL
