Schindler 3100/3300/6300 J 43402603 / 01 169/269
Copyright © 2017 INVENTIO AG

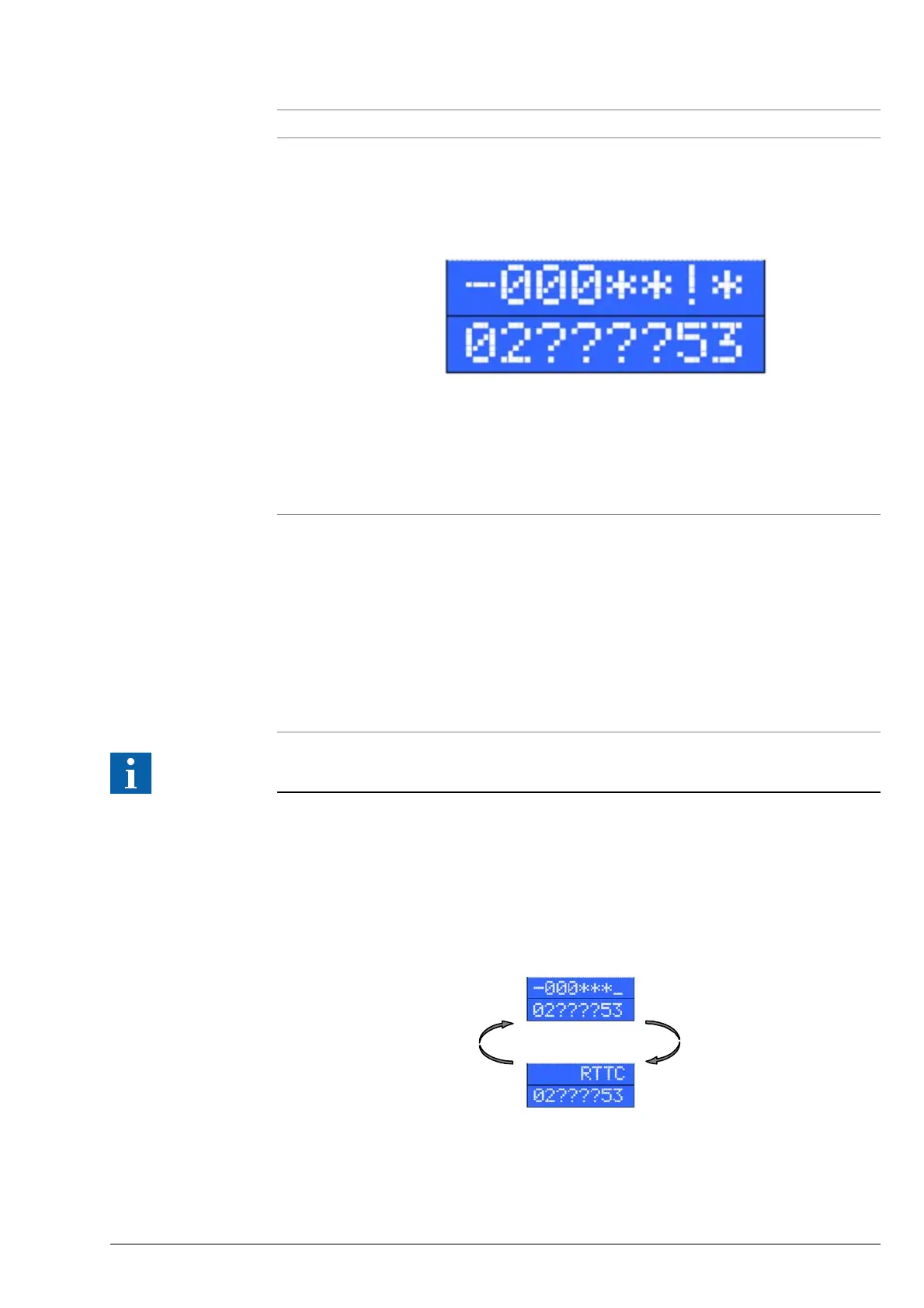

Safety chain tap name display (since V13.xx, for SMICFC2x HW only).
In case the HMI is showing the main information page and the fitter presses the “UP”
button, the HMI shows the name of the first opened tap of the safety chain instead of
taps display. (See graphic below shown)
Pressing "UP" button again the HMI shows main information page.
Note: The bridging done by for example recall panel or SUET does not affect the
evaluation of first opened tap.
[604639_013; 23.08.2017]
2 Operation:
– Maintenance person connects the BYPASS.LOCK plug (for bypassing
landing door lock safety contact) to the BYPASS connector on SMICFC
– HMI shows status “53” and safety taps looks like this:
[604620_015; 03.12.2015]
– Check all landing doors are closed and mechanically locked
– Now the recall or inspection operations can be carried out with bypassed
landing door safety contact or bypassed landing door lock safety contact
– An audible beep and a blinking lamp is active when the car moves with
bypassed safety contacts.
3 Deactivation:
– Deactivate the recall operation or
– If necessary, inspection operations must be exited properly as described
above
– TSD21 safety system must be reset
– Maintenance person disconnects the BYPASS.LOCK plug from the
BYPASS connector on SMICFC
– Maintenance person reconnects the BYPASS.NORMAL plug to the
BYPASS connector on SMICFC
– Elevator returns to normal mode.
No Step
A Press "UP" button
