4.15.3 Maintenance Checks
Guide Shoes

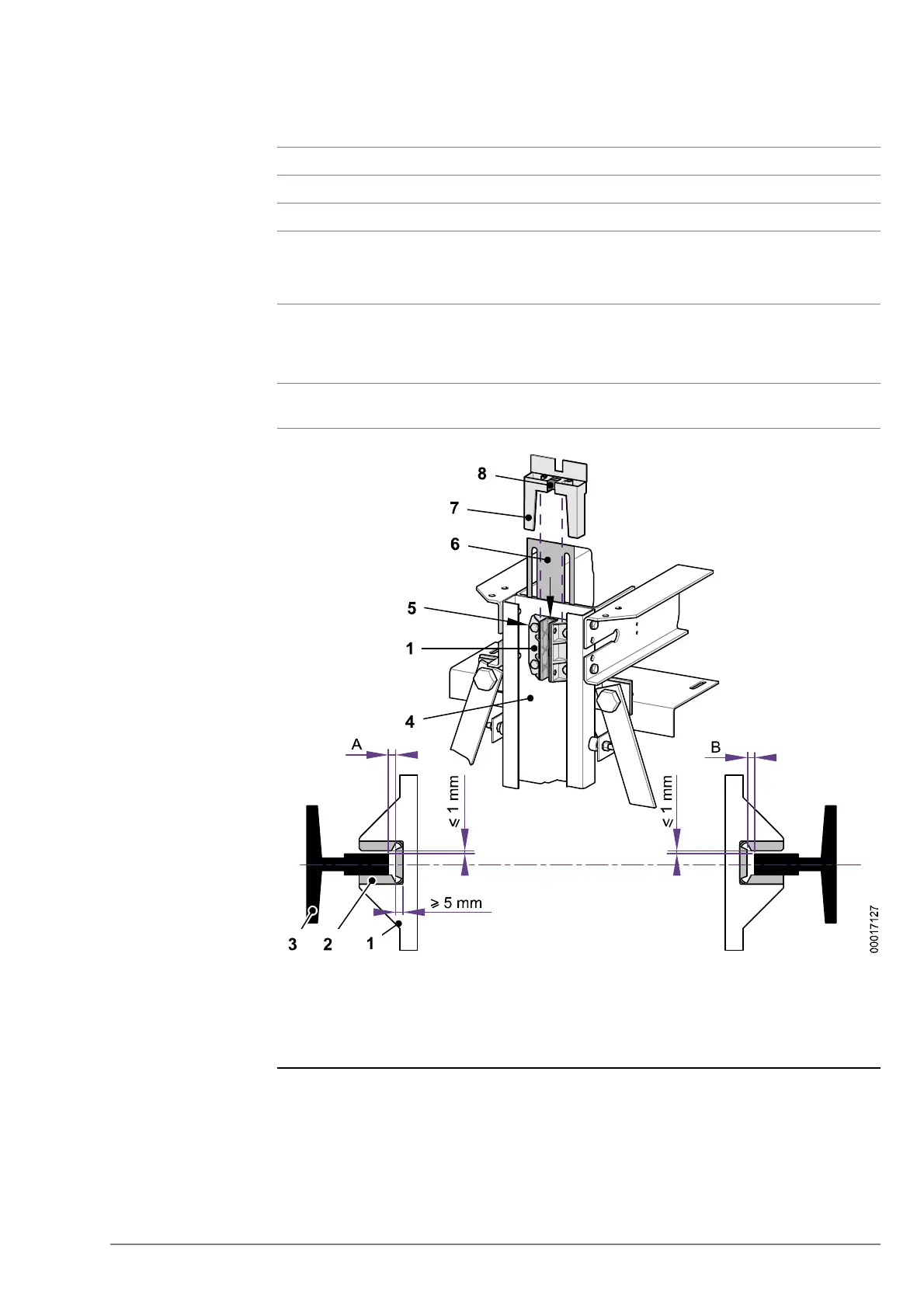

Guide Shoes [26937; 29.07.2008]
No Step
1
Remove the lubricators (7) on each car sling side.
2 Check that all fastening screws (5) of the guide shoes (1) are tightened.
3 Check the clearance between the guide rail (3) and the guide shoe lining (2):
– The clearance must be
≤ 1mm
– The total gap A + B must be
≤ 4mm.
4 Add or remove wedge (6) between the guide shoe support/upright (4) and
guide shoe (1) to adjust the gap A + B.
If these clearances can not be achieved any more replace the guide shoe
lining (2) of all four guide shoes (1).
5 Check that the thickness of each guide shoe lining (2) is ≥ 5 mm or with
cast
≥ 14 mm, see pictures. Else replace all four guide shoe linings (2).
1 Guide shoe
2 Guide shoe lining
3Guide rail
4 Upright
5 Fastening screw
6 Wedge
7Lubricator
8Lubricator felt
