4.10 Machine Brake Leroy-Somer
4.10.1 Overview Information
Component Title
Machine brake
Type Leroy-Somer
Description
Leroy-Somer - NL. 04/400/1002/051/01 (FM130-Basic and FMB130-LS) machine brake.
Never try to open the brake manually. Always use the rescue procedure to rescue
passengers.
Overview
Machine Brake Leroy-Somer [42115; 09.12.2011]
4.10.2 Maintenance Checks
4.10.2.1 Maintenance Task List
Task List
The brakes are maintenance free. Specifically:
– No lubrication needed
– No adjustment needed except air gap.
In case of a brake switch failure, adjust the switch position.
Repair Repair is not allowed. If needed, always replace the complete component by a new
original part.

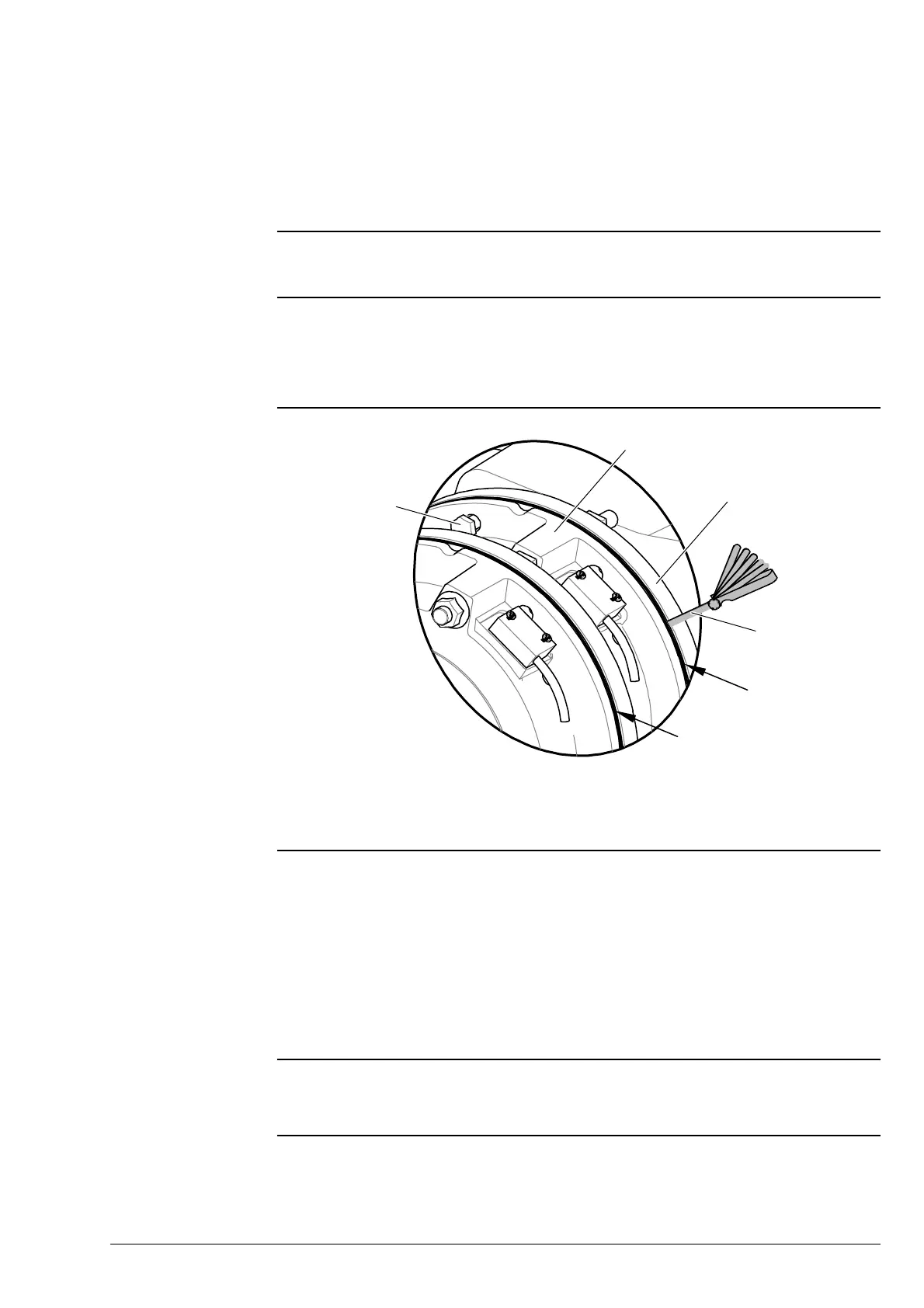

1 Adjusting screw
2 Brake yoke
3 Brake armature
4 Feeler gauge
5Air gap
5
5
4
3
1
2
