3.2.1 Control Elements in the Car Schindler 3100/3300/6300

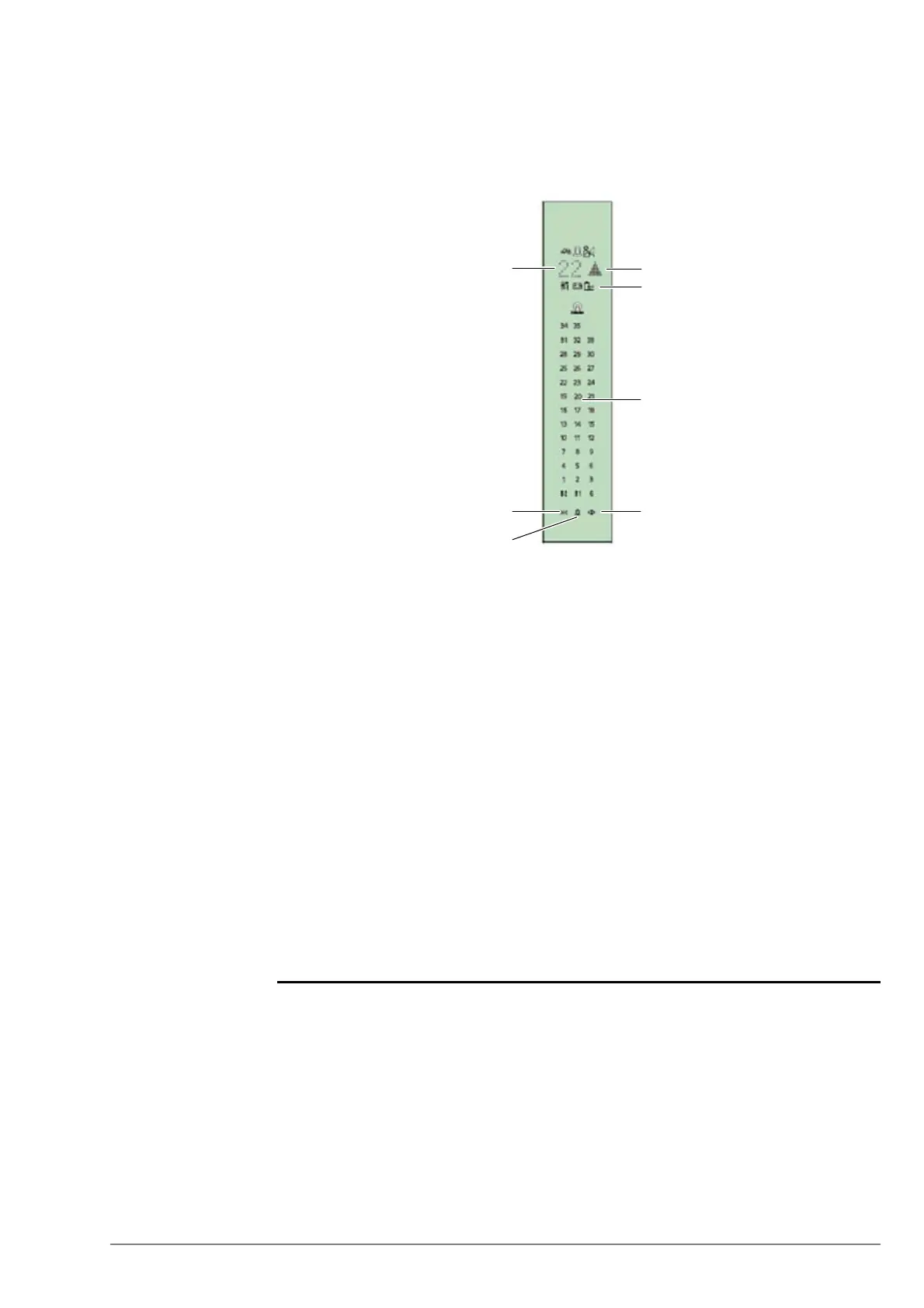

Car Operating Panel Pick-up and collective control:
COP [41853; 17.03.2017]
Includes:
– Travel command keyboard (6). It is used to select the destination floor. As soon as
a key pad (with Braille identification) is touched, a local short beep is generated and
the destination floor is displayed on the lower indicator (5) to acknowledge. Floors
below the 0 level must be preceded with the minus (-) key pad. Two digit numbers
must be entered for floors above level 9.
–The door open button (7) is used to hold the door open or to reopen a closing door.
–The door close button (2) is used to close the door immediately.
–The alarm button (1), when touched, allows a permanent two-way voice
communication with a rescue service.
– Position indicator (3). It displays the actual position of the car.
– Pre-announcing arrows (4). Indicate for collective and selective controls further car
travel up or down (direction arrows indicate for pick-up control the direction the car
is currently traveling).
– Overload indicator (5). When the function is activated, a beep is generated, a
flashing "OL" indication is shown on the main display (3) and an overload pictogram
is displayed on (5).
