4.12.3 Wittur Fine Line
4.12.3.1 Overview Information
Component Title
Car door
Description Car door

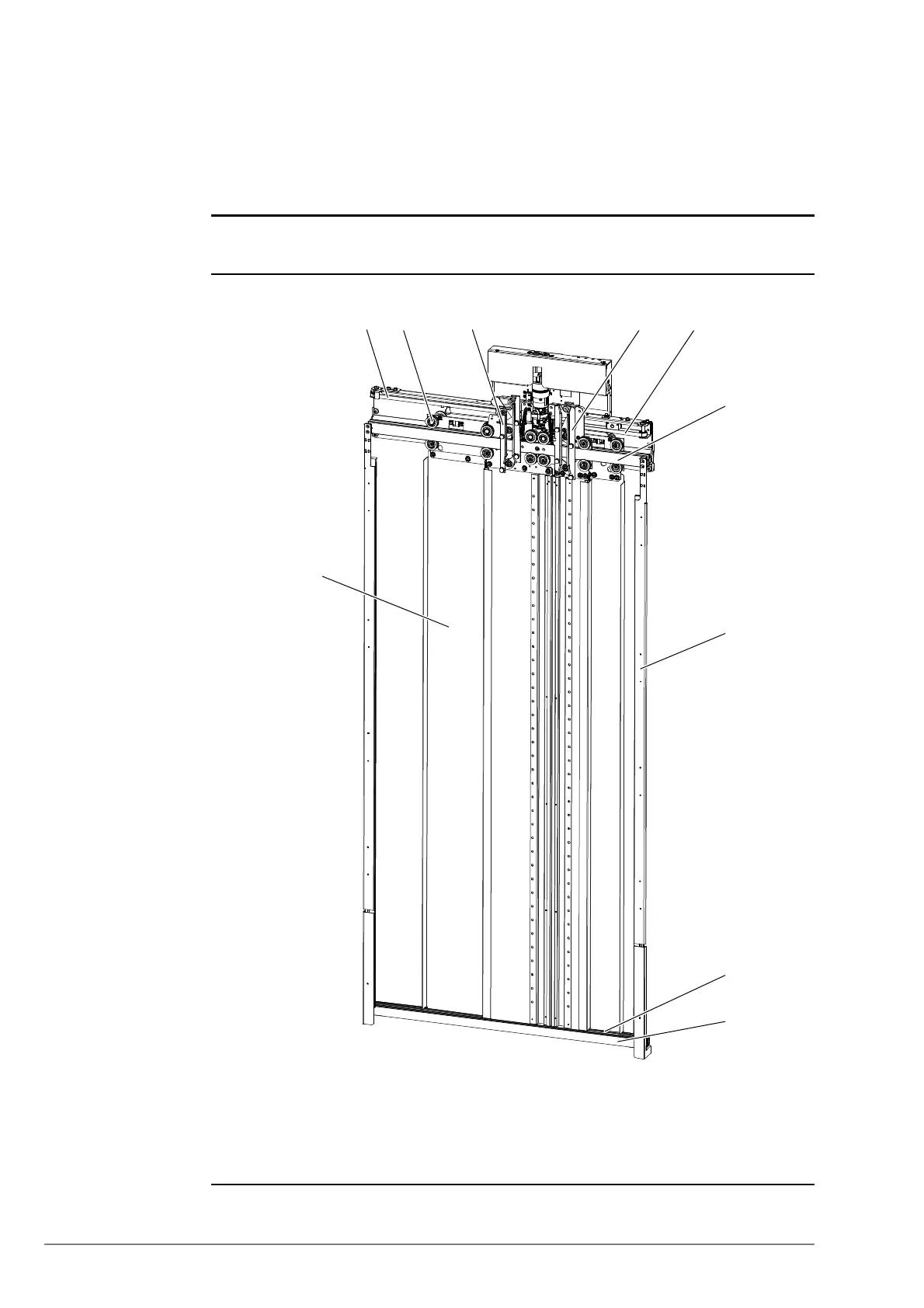

Overview
[43402603_014; 28.07.2017]
1 Mechanism
2 Door panel
3 Landing sill
4 Main/counter roller
5 Coupler
6 Safety edge
7 Guiding shoes
8Belt
2
84 5
5 8
1
6
7
3
