Schindler 6300 - Hoistway Door Lock - Wittur Fine Line

Schindler 3100/3300/6300 J 43402603 / 01 247/269
Copyright © 2017 INVENTIO AG
4.14.3 Hoistway Door Lock - Wittur Fine Line
4.14.3.1 Overview Information
Component Title
Hoistway door
4.14.3.2 Maintenance Check and Adjustment

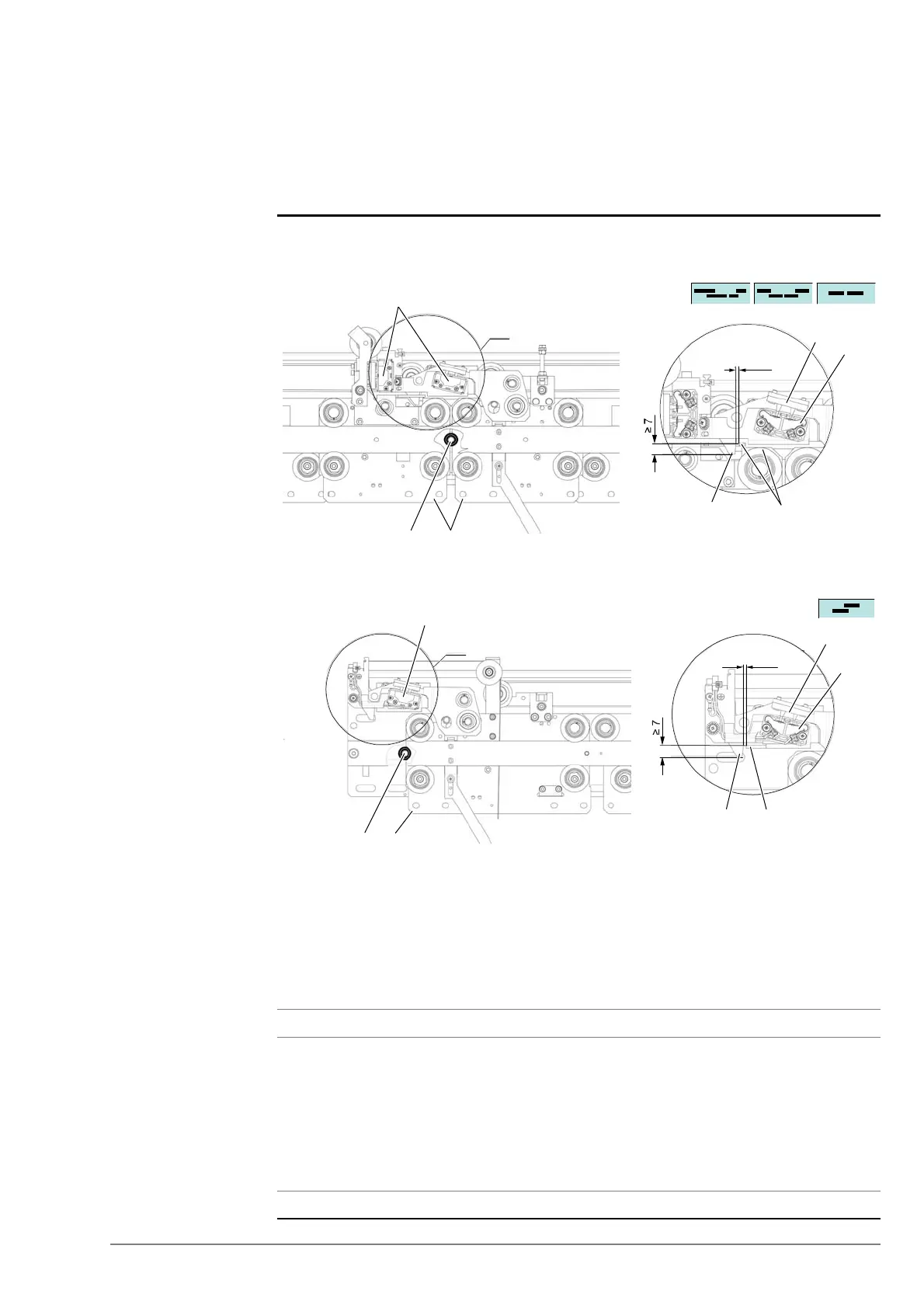

C4/C2 Landing Door
Lock
[41140796_001; 10.05.2017]
T2 Landing Door
Lock
[41140796_002; 10.05.2017]
3
21
4
5
3
6
AA
1
.
.
.
3
1 Hanger
2Buffer
3 Door contact
4Bridge
5 Counter lock
6 Hook lock
No Step
1
Close the door completely so that the hangers (1) are against the buffers (2).
Make sure that the lock functions correctly as follows:
– The lock gap is 1 ... 3 mm (not adjustable).
– The lock gap does not break the door contact (3) when panels are moved
apart.
– The hook lock (6) is engaged 7 mm to the counter lock (5) before closing
the contact (3) with the bridge (4).
65
4
3
1
.
.
.
3
AA
3
21
