Check Guide Shoe
E2 Clearance
[34537; 10.07.2014]
Guide Shoe E1
[41353545_039; 10.07.2014]
No Step
1
Push the door panel (3) slightly to the car side.

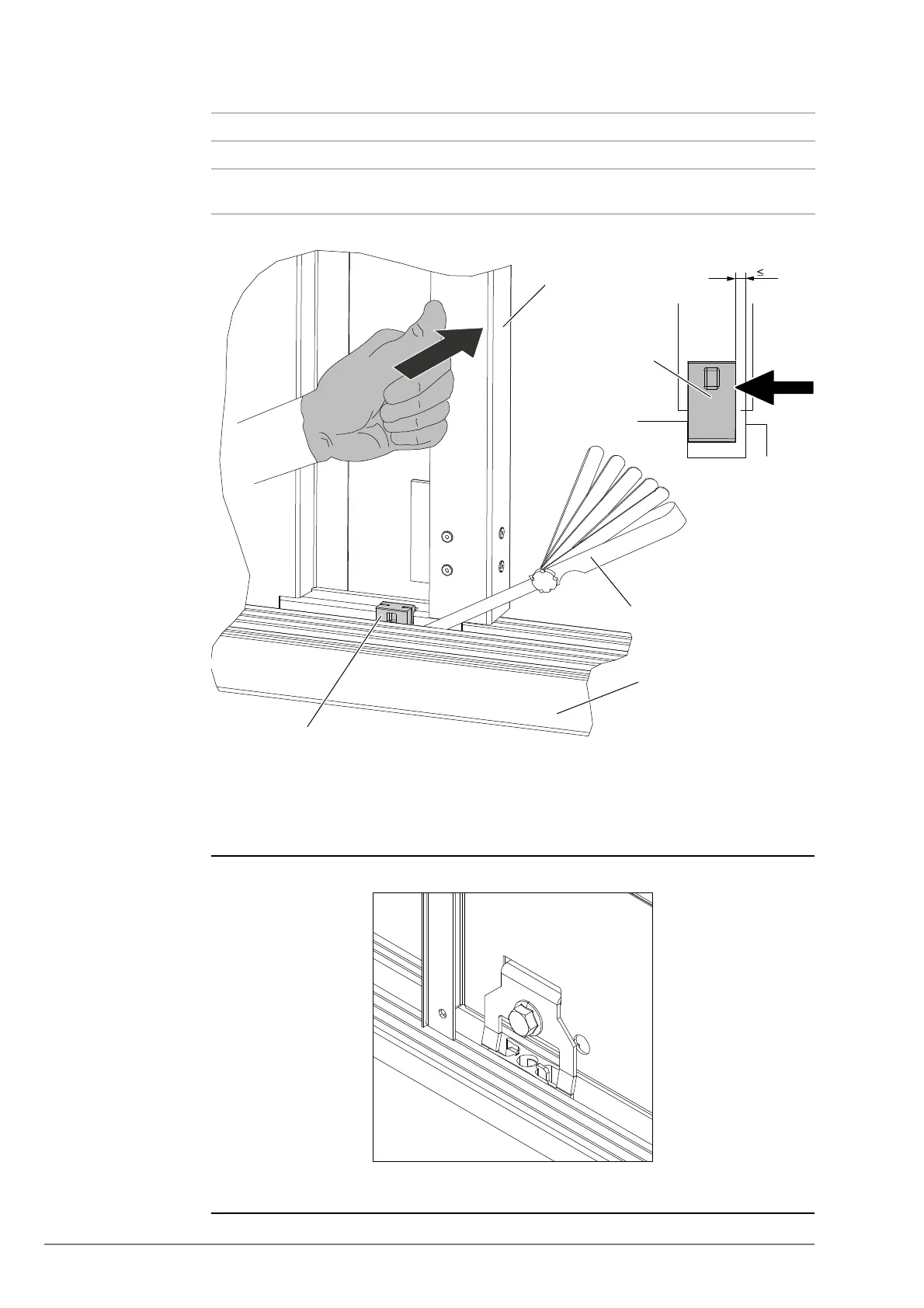

2 Check the clearance between the sill profile (1) and the guide shoe (4), using a
feeler gauge (2). If the clearance is > 1 mm, replace the guide shoe (4).
1 Sill profile
2 Feeler gauge
3 Door panel
4 Guide shoes
1
4
2
3
4
1 mm
