In case of only short pit and normal headroom, top-of-car access is same as without
TSD21 (Activation of TSD21 lever is not necessary, reset of the TSD21 system is also
not necessary. See table below).
Inspection
Operation in Pit with
TSD21
Pit Inspection Panel RESG [604620_036; 23.08.2017]
3 Operation:
– Press and hold DREC_U and DREC_E to move the car upwards.
– Press and hold DREC_D and DREC_E to move the car downwards.
– Release DREC_U or DREC_D or DREC_E to stop the car movement.
– Press JHC to stop the car movement.
4 Deactivation:
– Press the top of car stop button (JHC).
– Switch JREC to "Normal".
– If necessary, retract/fold the balustrade.
– Deactivate the TSD21 lever.
– Exit the top of car.
– Release the top of car stop switch (JHC) only after having exited the car
roof.
– Close the shaft door giving access to the top of car.
5 Reset of TSD21:
– Check that all stopping devices have been released and all landing doors
are closed and locked (with the help of HMI command 162, the controller
will send a lock command to any door available in the system. This will help
to close the safety chain in the TSD21 hardware exit procedure).
– Unlock and press DRZS button on SMICHMI to reset TSD21 system.
– LED LZS (RD) shall be turned off when the reset is succeeded.
– Relock the DRZS button.
No Step

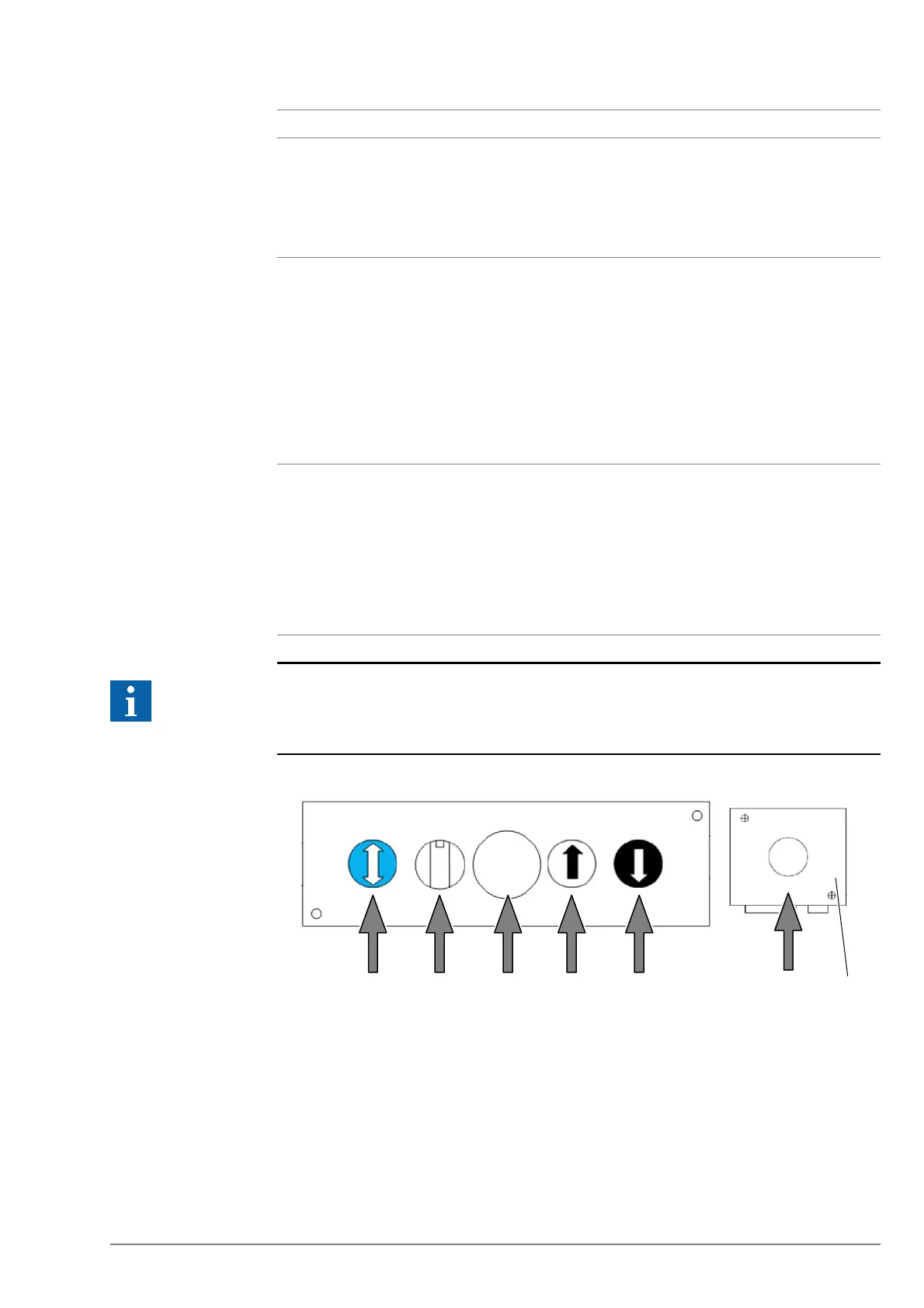

1Pit box
DRESG_E JRESG JHSG DRESG_U DRESG_D JHSG1 1
STOP
STOP
INSPECTION
NORMAL
JHSG1
